Microcut Modern LT-65 Lathe

Show in original language

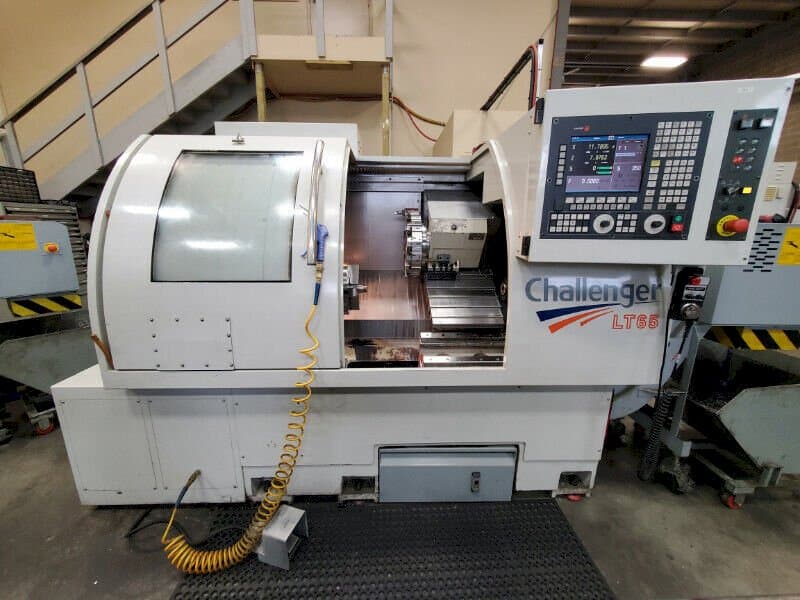

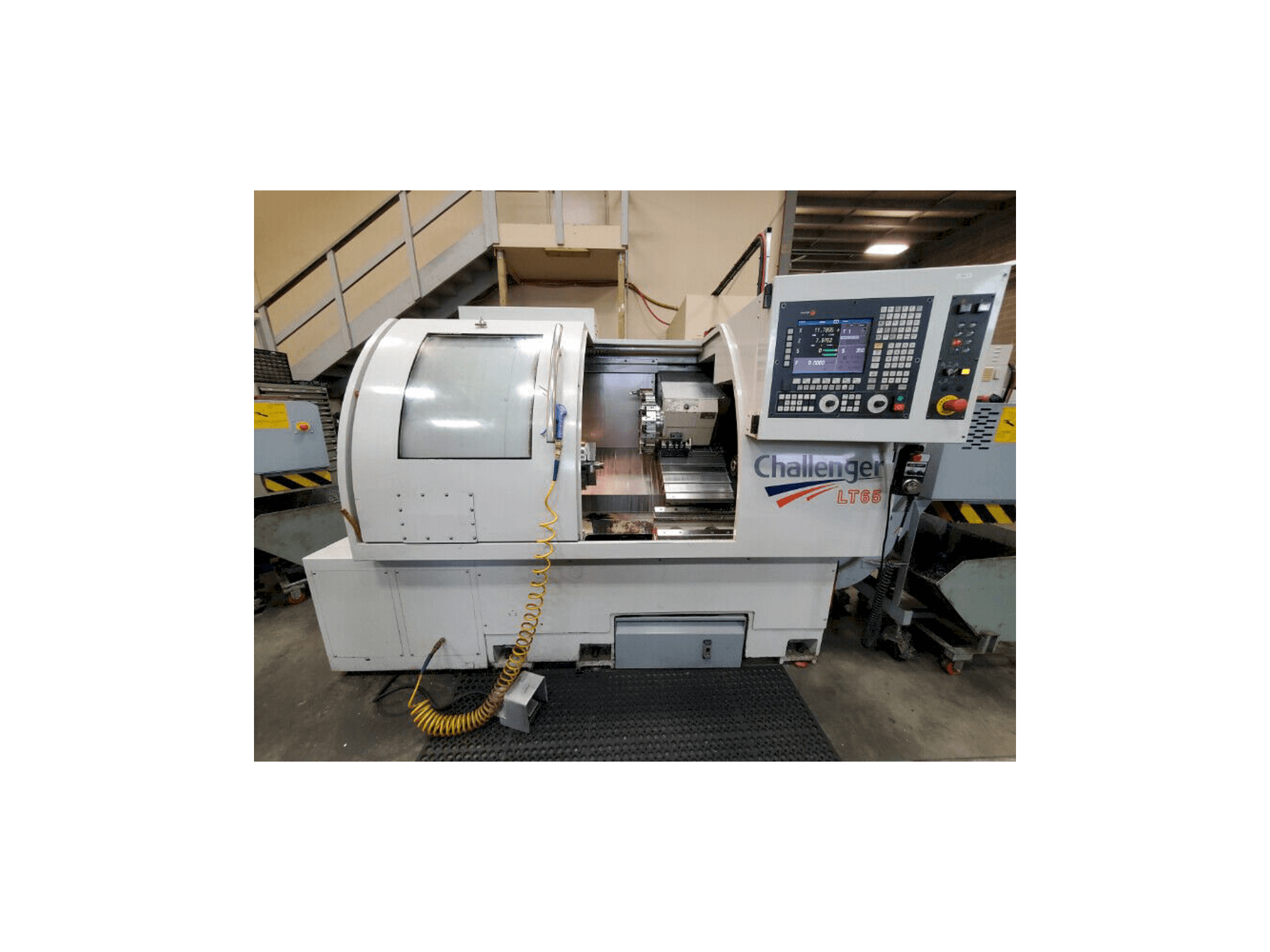

This Microcut Modern LT-65 Lathe was built in the year 2011. This machine is equipped with a Fagor 8055iFL color LCD CNC Control with conversational programming and color graphic simulation. It also icorporates 8 Sauter tool automatic turrets along with other benefits.

Overview

brand: MICROCUT
year: 2011
MODEL: Modern LT-65
application type: Turning
Location: Canada
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FAGOR

Technical Information - MICROCUT Modern LT-65

General Data

Measurements width: 3124 mm
Measurements depth: 1593 mm
Measurements height: 1700 mm
Machine weight: 3193 kg

Control Unit

Model: 8055iFL
Brand: FAGOR

Main drive

Spindle speed range: 4500 1/MIN

Turret

Number of tool slots: 8

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tailstock quill diameter: 65 mm
- - Tailstock quill travel: 48 mm
- - Tailstock travel: 425 mm
- - Swing over bed: 50 mm
- - Swing over cross side: 220 mm
- - Maximum cutting diameter: 180 mm
- - Maximum cutting length: 460 mm
- - Spindle nose: a2-6
- - 8 sauter tool automatic turret
- - Hydraulic chuck with hard jaws
Qualitative Machine Benefits:
- - Full enclosure
- - Linear guide ways
- - Manual touch probe tool setting arm
- - Gibs and spacers for turning and facing tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
