- ➤ Used Index ABC Horizontal Lathe For Sale | gindumac.com

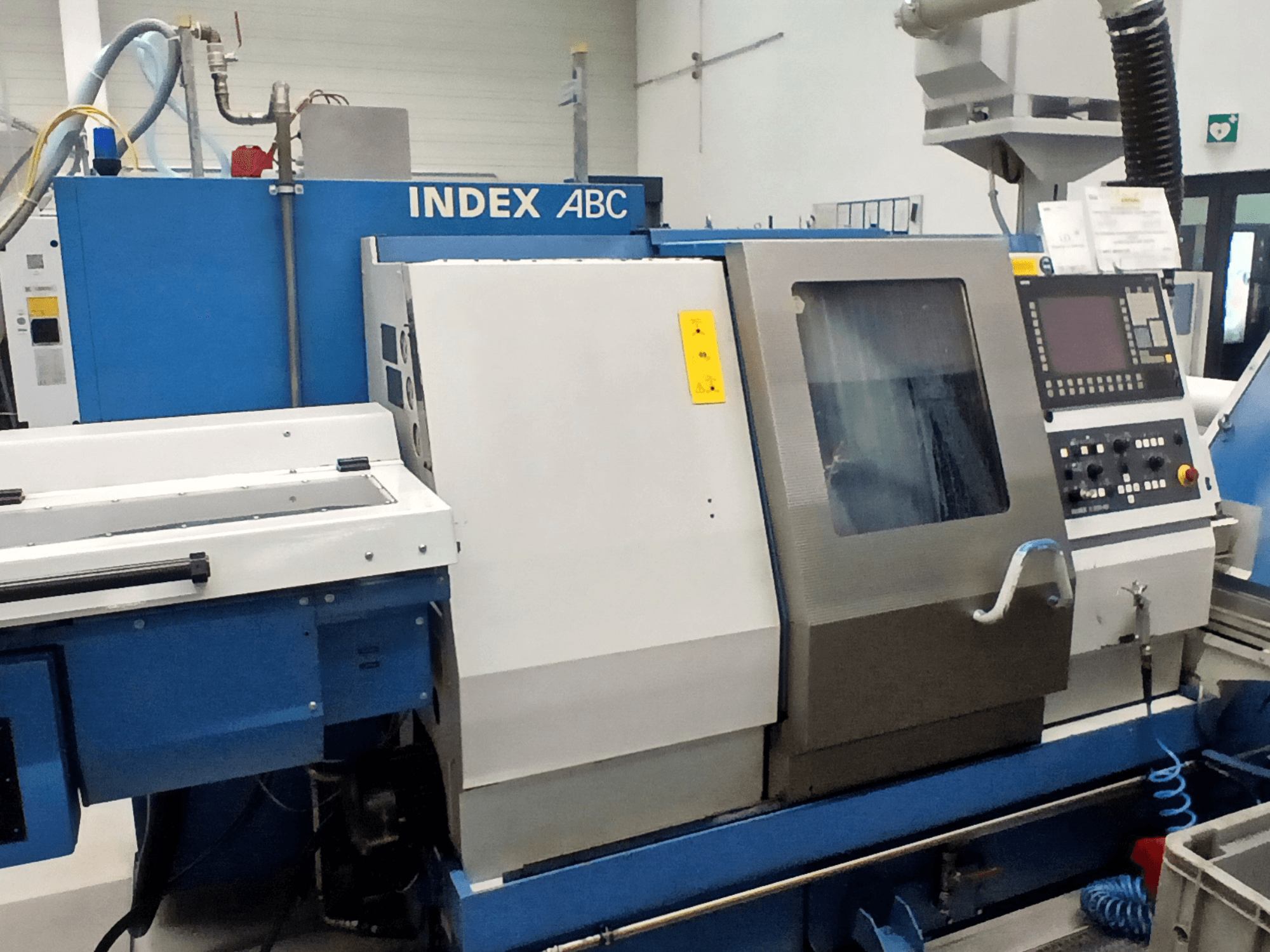

This 5-axis Index ABC horizontal turning machine was manufactured in 2012. It features a main spindle with a maximum speed of 6000 rpm and a sub spindle with a speed of 4500 rpm. The machine includes two turrets, each equipped with X and Z axes, and a powerful tool drive. If you are looking to get high-quality turning capabilities, consider the Index ABC machine we have for sale. Contact us for further details.
Overview
- brand: Index
- year: 2012
- MODEL: ABC
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand:
Technical Information - Index ABC
Movement
- Number of Axes: 5
- X-axis Travel: 81 mm
- Z-axis Travel: 80 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 20 kW
- Spindle Speed: 6000 RPM
Additional Information
Main spindle: D65, spindle interface AD140, ID83, max speed 6000 rpm; max power 20 kW at 100% duty cycle; C-axis; electronic synchronization between spindles
Sub spindle: 7.5" chuck interface, max speed 4500 rpm
Chuck: 3-jaw KFN95/3, clamping force 480 daN, max 4000 rpm
Turrets: two turrets each with X and Z axis; tool drive on turret 6000 rpm, 3.3 kW
Rear working attachment: without quill, 5 quill positions
Coolant: 80 l/min at 8 bar and 20 l/min at 18 bar; system prepared for emulsion; coolant return at spindle end D60 (without bar feed)
Control: INDEX C200-4D based on Siemens 840D; color display 26 cm; thread cutting without compensating chuck; motor-current-based tool monitoring; internal tool management and setup dialog; extended machining cycles; parts counter and production monitoring
Power/connection data: 400 V, 50 Hz TN network; total connected load 45 kVA; rated power 38 kW; rated current 65 A; max fuse protection 100 A
Hydraulic hollow clamping cylinder D65
Additional equipment
Chip conveyor: hinged belt, discharge height 1250 mm
Bar feeder: MBL 65/3700 for spindle height 1010 mm; bar diameters up to 65 mm; bar feeder length 3700 mm; guide channel system with rolling bearings; loading rods (Ø12 mm and Ø20 mm, length 1400 mm); guide sets for 14–18 mm, 18–22 mm, 22–65 mm
Workpiece unloading device for main and sub spindle with part catcher
Teleservice preparation (ISDN) with software
Machine prepared for extraction system 230 V
Working area light
Two electrical cabinet cooling units
Transformer 3 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
