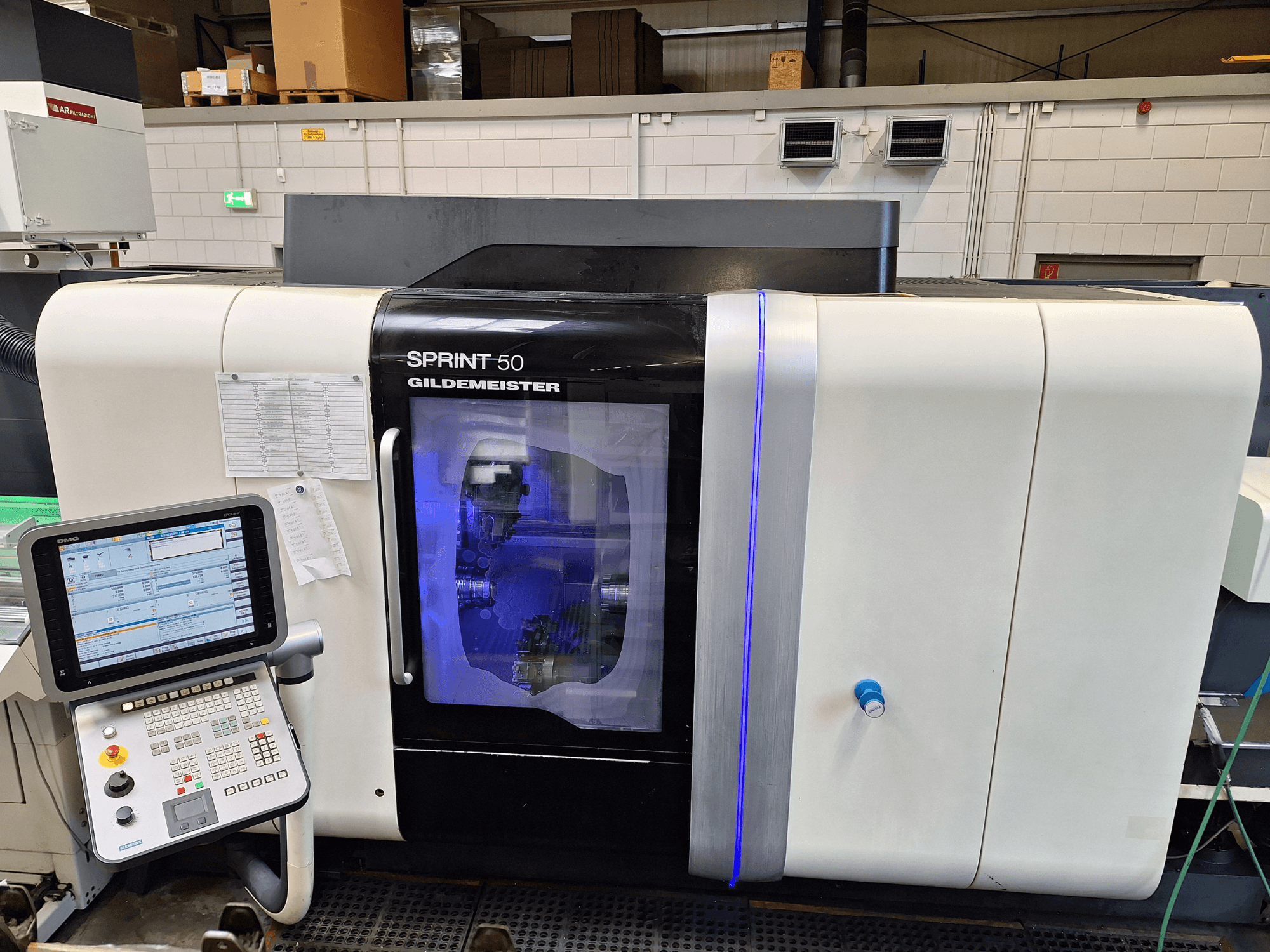

This 5-axis DMG Sprint 50 2T was manufactured in 2012. It features a maximum turning diameter of 50 mm and a turning length of 550 mm. The machine is equipped with two turrets, each with 12 driven tool stations, and offers a rapid traverse speed of 30 m/min. If you are looking to get high-quality turning capabilities, consider the DMG Sprint 50 2T horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: DMG
- year: 2012
- MODEL: Sprint 50 2T
- production hours: 23197
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - DMG Sprint 50 2T
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Movement
- Number of Axes: 5
- X-axis Travel: 160 mm
- Y-axis Travel: 80 mm
- Z-axis Travel: 550 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 11 kW
- Spindle Speed: 5000 RPM
Additional Information
Number of Turrets: 2
Tools per Turret: 12 stations, VDI25, all driven
Number of Cross Slides: 3
Sub-Spindle: Yes
Max Turning Diameter: 50 mm
Max Turning Length: 550 mm
Sub-Spindle Speed: max. 5000 rpm
Sub-Spindle Power: 11 kW
Driven Tool Speed: max. 6000 rpm
X1/X2 Axis Travel: 160 mm
Z1/Z2 Axis Travel: 550 mm
Y-Axis Travel: ±40 mm (Turret 1)
Rapid Traverse Speed: 30 m/min
Electrical Connection: 34 kVA
Max Current: 135 A
Spindle Hours: 23,198 h
Additional equipment
Tool holders
Driven tools
Collets
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
