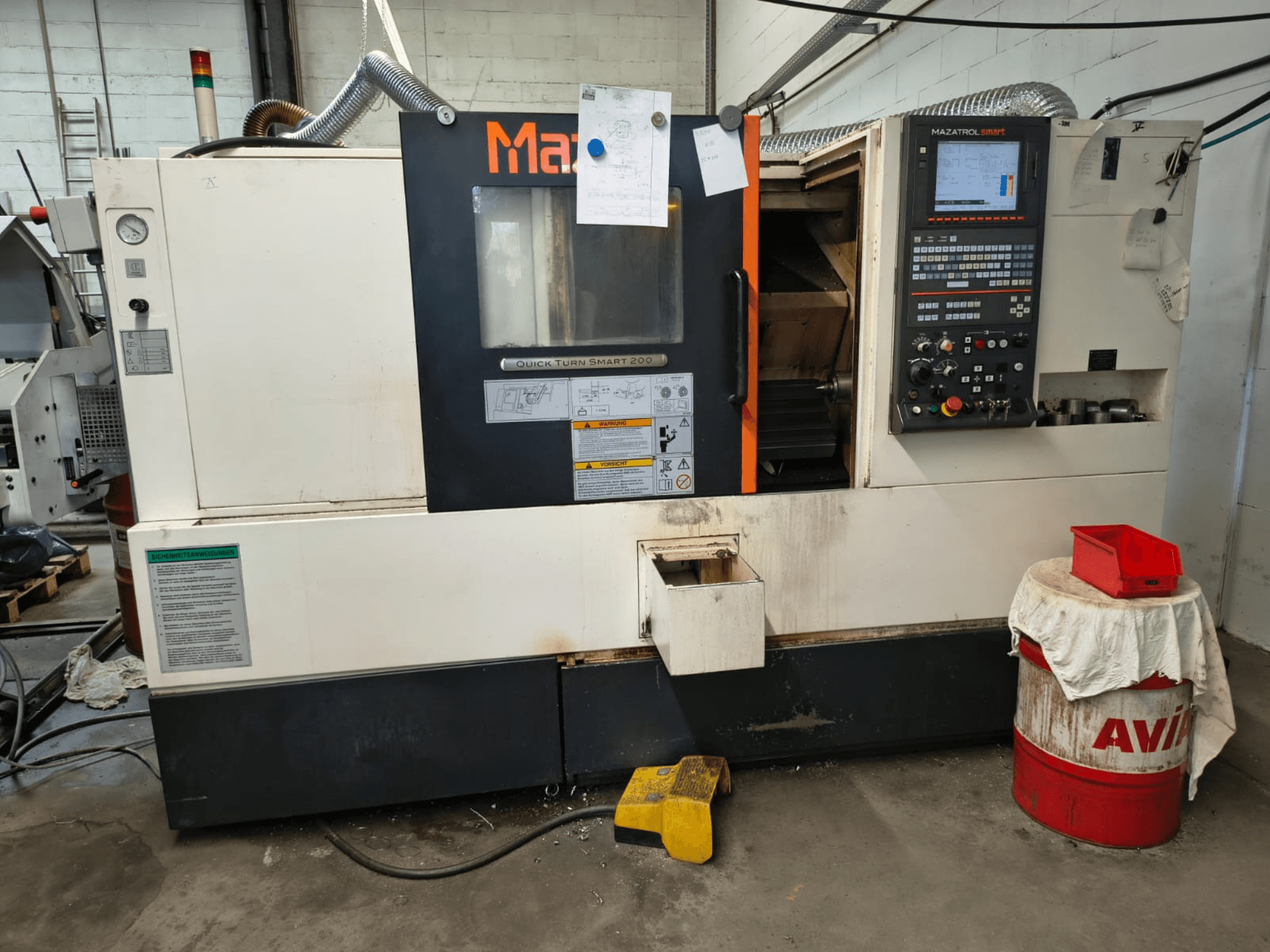

Horizontal turning machine manufactured in 2012. This Mazak Quick Turn Smart 200 features a 12-position turret and is equipped with a Hainbuch chuck, enhancing its versatility. It has a bar capacity of 65 mm, making it suitable for various turning applications. If you are looking to get high-quality turning capabilities, consider the Mazak Quick Turn Smart 200 machine we have for sale. Contact us for further details.
Overview
- brand: Mazak
- year: 2012
- MODEL: Quick turn smart 200 (2012)
- production hours: 14597
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: MAZATROL
Technical Information - Mazak Quick turn smart 200 (2012)
Control Unit
- Control Brand: MAZATROL
- Control Model: Smart
Dimensions
- Machine Weight: 500 kg
Movement
- Number of Axes: 2
- X-axis Travel: 195 mm
- Z-axis Travel: 560 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Tool Stations: 12
Additional Information
Supply Voltage: 3 Phase, 400 V, 50 Hz
Control Circuit Voltage: AC100 V / DC24 V
Main Breaker Interrupting Capacity: 20 kA
Supply Voltage (Ue): 400 V, 3~
Rated Current (Ie): 3.5 A
Frequency: 50 Hz
Weight: 500 kg
Breaking Capacity (Icn): 5 kA
Control: Mazatrol Smart
Turret: 12-Position
Bar Capacity: 65 mm
Hainbuch Chuck (Standard Chuck Also Included)
Optional, not included: IEMCA KID 80 Bar Feeder (2012)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
