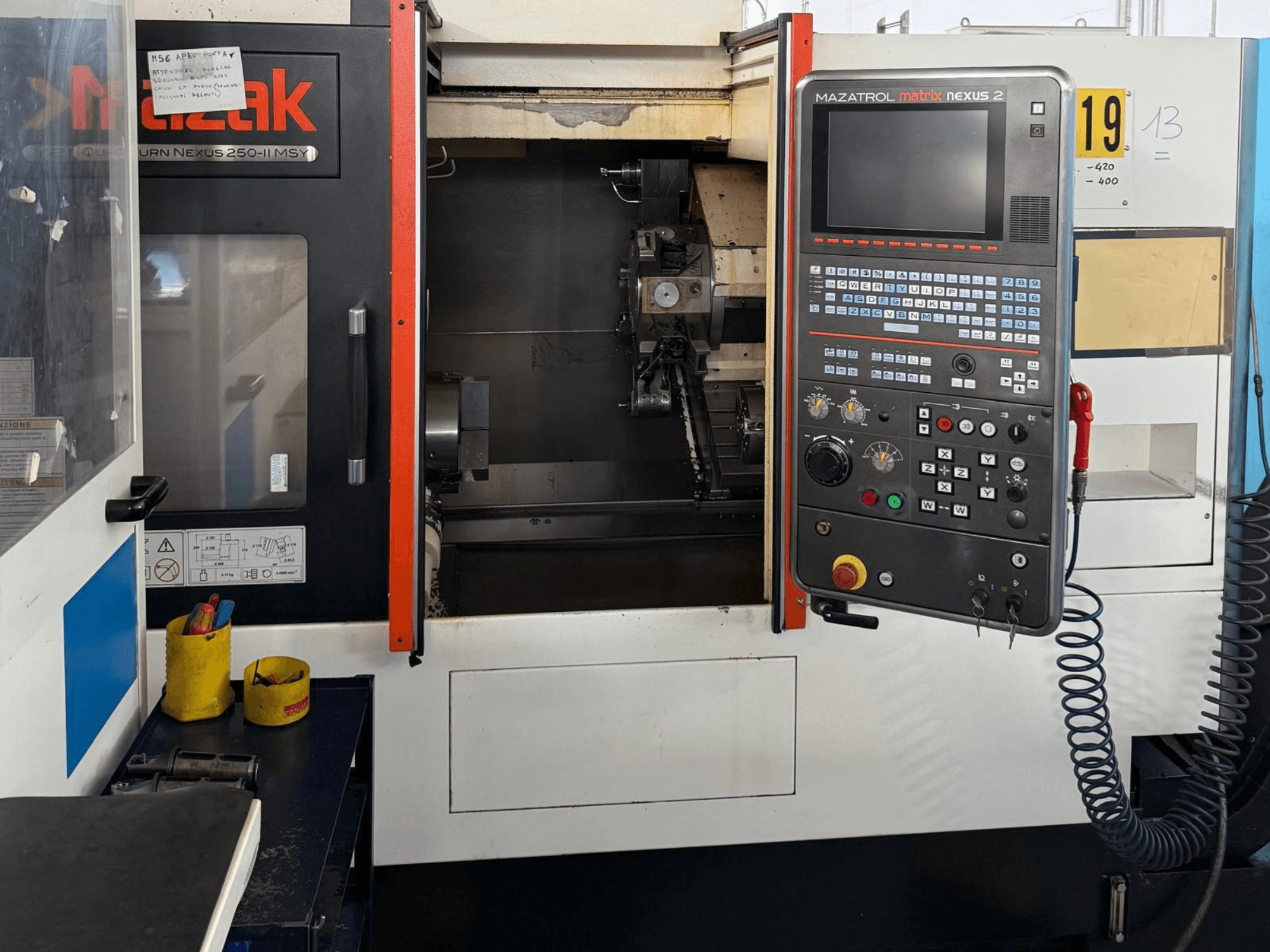

This 4-axis Mazak QTN 250 II MSY was manufactured in 2015. It features a maximum swing diameter of 640 mm and a maximum machining diameter of 380 mm. The machine includes a main spindle with a chuck diameter of 250 mm and a counter spindle with a chuck diameter of 210 mm. If you are looking to get high-quality turning capabilities, consider the Mazak QTN 250 II MSY horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: Mazak
- year: 2015
- MODEL: QTN 250 II MSY
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
Technical Information - Mazak QTN 250 II MSY
Dimensions
- Machine Weight: 5700 kg
Movement
- Number of Axes: 4
- X-axis Travel: 230 mm
- Y-axis Travel: 100 mm
- Z-axis Travel: 575 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 26 kW
- Spindle Speed: 4500 RPM
Additional Information
-Information
CNC control: MAZATROL MATRIX NEXUS 2 / MATRIX II
Working capacity:
Maximum swing diameter: 640 mm
Maximum machining diameter: 380 mm
Maximum machining length: 500 mm
Bar capacity: 77 mm
Axis travel:
C-axis rapid movement: 550 (as stated)
Tailstock travel: 500 mm (as stated)
Main spindle:
Chuck diameter: 250 mm
Nose: ASA 8
Counter spindle:
Chuck diameter: 210 mm
Maximum speed: 5,000 rpm
Nose: ASA 5
Driven tools:
Maximum speed: 5,000 rpm
Feed rates:
X-axis rapid traverse: 36,000 mm/min
Z-axis rapid traverse: 36,000 mm/min
Coolant tank capacity: 300 litres
Additional equipment
Automatic loading and unloading system by MECCANO
FANUC ARC Mate 100iC/12 robot (per photos)
Tooling package as shown in the photographs and video
Assorted tool holders as shown in the photographs
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
