Mazak - Quick Turn Smart 100 S (QTS 100 S)DE-TUR-MAZ-2011-00001

Name: Mazak Quick Turn Smart 100 S (QTS 100 S)
Brand: Mazak
SKU: DE-TUR-MAZ-2011-00001
Price: 3798990 INR
Availability: InStock

Rs. 3,798,990

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak Quick Turn Smart 100 S (QTS 100 S) | Turning

Show in original language

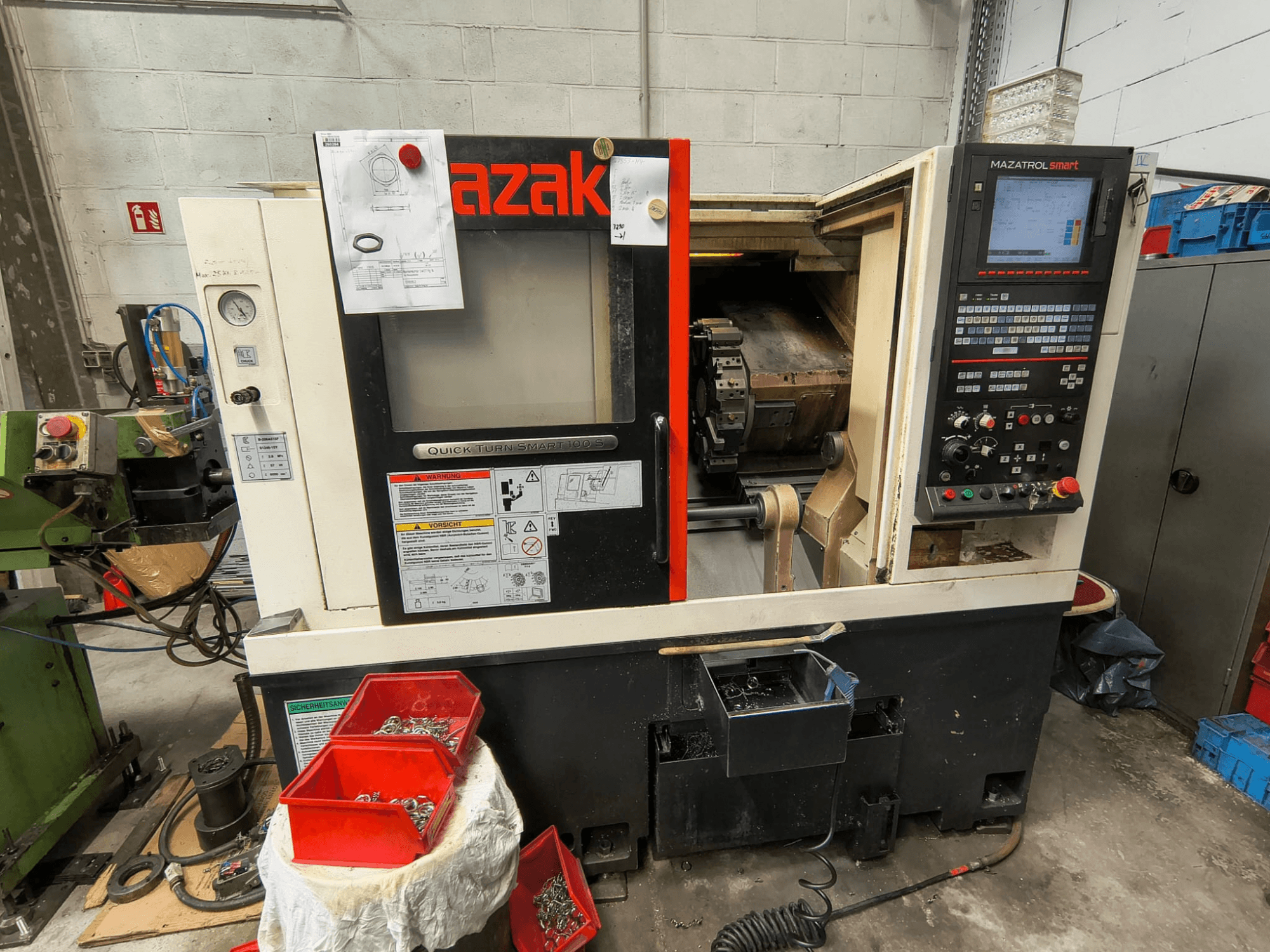

Horizontal turning machine manufactured in 2011. This Mazak Quick Turn Smart 100 S (QTS 100 S) features a maximum turning diameter of approximately 280 mm and a turning length of about 308 mm. It includes a 12-position drum turret for efficient tool changes and a programmable tailstock. If you are looking to get high-quality turning capabilities, consider the Mazak Quick Turn Smart 100 S machine we have for sale. Contact us for further details.

Overview

brand: Mazak
year: 2011
MODEL: Quick Turn Smart 100 S (QTS 100 S)
production hours: 44137
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Mazak Quick Turn Smart 100 S (QTS 100 S)

Movement

Number of Axes: 2
X-axis Travel: 190 mm
Z-axis Travel: 330 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Speed: 6000 RPM

Additional Information

MAZAK Quick Turn Smart 100 S (2011) - INFO

- Main Spindle C-Axis: Without C-axis
- Control: Mazatrol Smart (10.4" Color LCD)
- Operating Hours: 44,137 hours
- Turning Length: approx. 308 mm (Z-travel approx. 340 mm)
- Turning Diameter: max. approx. 280 mm
- Swing Diameter: approx. 584 mm
- Turret: 1 Turret, 12-position drum turret (Bolt-on type), index time 0.17 s
- Tool Holder: Mazak block holder (Bolt-on), various tool adapters / tool holders included
- B-Axis (stepless 0.001°): No
- Tailstock: Yes, programmable tailstock (centering point MT 4)
- Main Spindle Speed: 6,000 rpm (Spindle nose A2-5, drive approx. 11 / 7.5 kW)
- Bar Loader: No (Defective)
- Bar Capacity / Passage: Ø 42 mm (Standard chuck 6" / 152 mm, 3-jaw hydraulic)
- Optional (not included) Various tool adapters, tool holders, clamping devices, and set of collets
- Chip Conveyor: No

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
