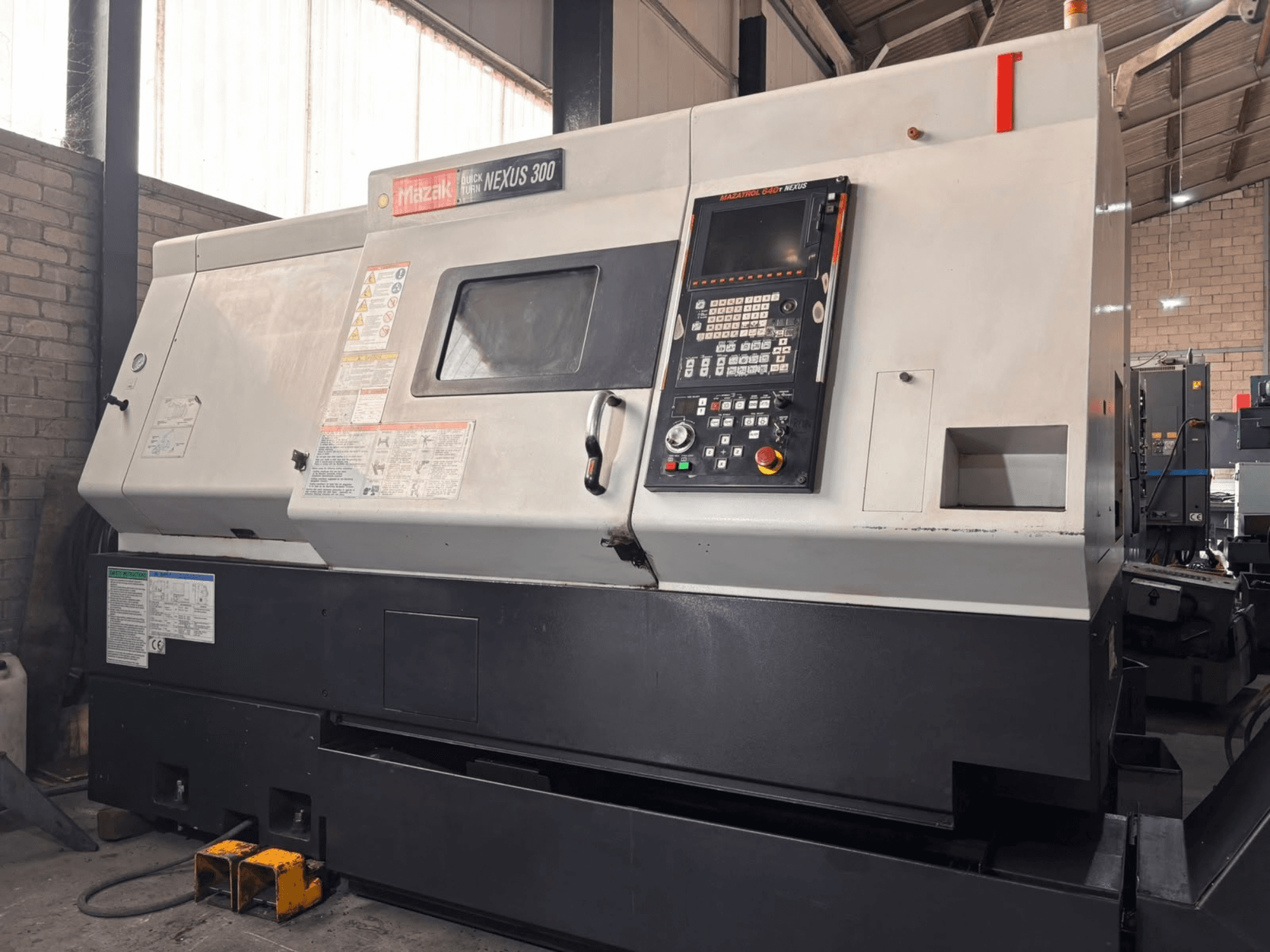

Mazak - QT NEXUS 300GB-TUR-MAZ-2009-00002

• CNC: Mazatrol Fusion 640T Nexus (8.4" color LCD)

• CE marked

• Capacity

  • Max bar diameter: 77 mm

  • Max cutting diameter: 420 mm

  • Max swing: 680 mm

  • Spindle bore: 88 mm

  • Spindle center height: 1,080 mm

  • Max chuck workpiece weight: 450 kg

• Main spindle

  • Max spindle torque: 600 Nm

  • Spindle nose: A2-8

  • Chuck: 10" through-hole, type B210A815X

• Axes

  • Cutting feedrate: X 8 m/min, Z 8 m/min

  • Rapid traverse: X 30 m/min, Z 25 m/min

• Turret

  • Type: Drum turret

  • Stations: 12

  • Turning tool shank: 25 × 25 mm

  • Indexing time: 0.8 s (½ turn), 0.2 s (single step)

• Tailstock

  • Programmable, motor-driven movement

  • Stroke: 645 mm

  • Taper: No. 5

  • Dead centre included

  • Live centre: NSK LC-5SW (speed up to 4,000 rpm)

  • Thrust selection: 10 levels

• Control equipment and functions

  • Mazatrol Fusion 640T Nexus

  • Interfaces: RS-232C, Network

  • Background tool-path check

  • Machining Navigation – Prediction / Monitor / Results

  • Velocity and feedrate control

  • Tool path storage

  • 3.5" FDD unit

• Coolant / machine equipment

  • Complete coolant system (tank 210 L, pump 520 W)

  • Preparation for side chip conveyor

  • Automatic tool eye

  • Hydraulic chuck pressure interlock

  • Chuck open/close confirmation

  • Double foot switch

  • Full chip and coolant guarding

  • Work light

• Electrical

  • Power requirement (30 min rating): 49.69 kVA

  • Continuous power requirement: 43.83 kVA

Additional equipment

• European-market power transformer

• Foundation plates

• One set of adjusting tools

• Manuals included
