➤ Used Index G250 Horizontal Lathe For Sale | gindumac.com

Show in original language

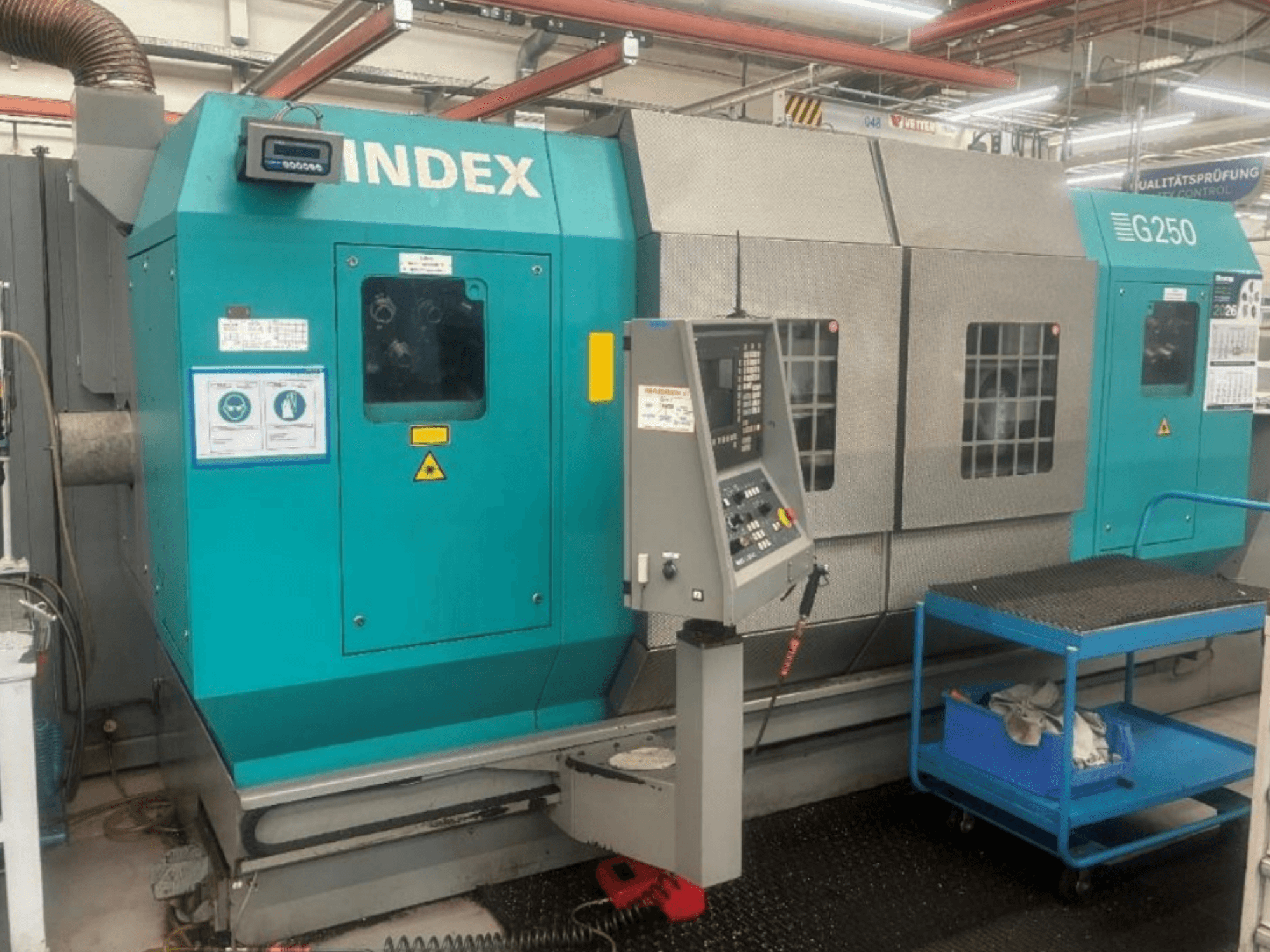

This 3-axis Index G250 horizontal turning machine was manufactured in 2008. It features a maximum swing diameter of 560 mm and a turning length of 800 mm. The machine is equipped with a Siemens 840 D control system and offers a spindle speed range of up to 3,500 rpm. If you are looking to get high-quality turning capabilities, consider the Index G250 machine we have for sale. Contact us for further details.

Overview

brand: Index
year: 2008
MODEL: G250
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - Index G250

Control Unit

Control Brand: SIEMENS
Control Model: 840 D

Dimensions

Machine Weight: 14000 kg

Movement

Number of Axes: 3
X-axis Travel: 300 mm
Z-axis Travel: 800 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Power: 57 kW
Spindle Speed: 3500 RPM

Additional Information

- Maximum Swing Diameter: 560 mm

- Turning Length: 800 mm

- Control System: C200-4D Siemens 840 D

- Spindle Head: 8 DIN 55026/55021 ISO 7027/1

- Bar Capacity: 90 mm

- Spindle Diameter at Front Bearing: 140 mm

- Drive Power – Spindle Motor (100% / 40%): 43 / 57 kW

- Torque: 275 / 363 Nm

- Indexing: 2.5°

- C-Axis: 0.001°

- Speed Range – Driven Tool Stations: ~6,000 min⁻¹

- Drive Power – Driven Tool Stations: 11 kW

- Torque (Driven Tools): 21.5 Nm

- Rapid Traverse X/Z: 30 / 22.5 m/min

- Feed Force (X): 7,200 N

- Feed Force (Z): 9,000 N

- Quill Diameter: 65 mm

- Total Power Requirement: 51 kVA

- Footprint: approx. 7.3 x 4.0 x 2.6 m

- Optional Equipment: KNOLL chip conveyor system attached to the rear/side

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
