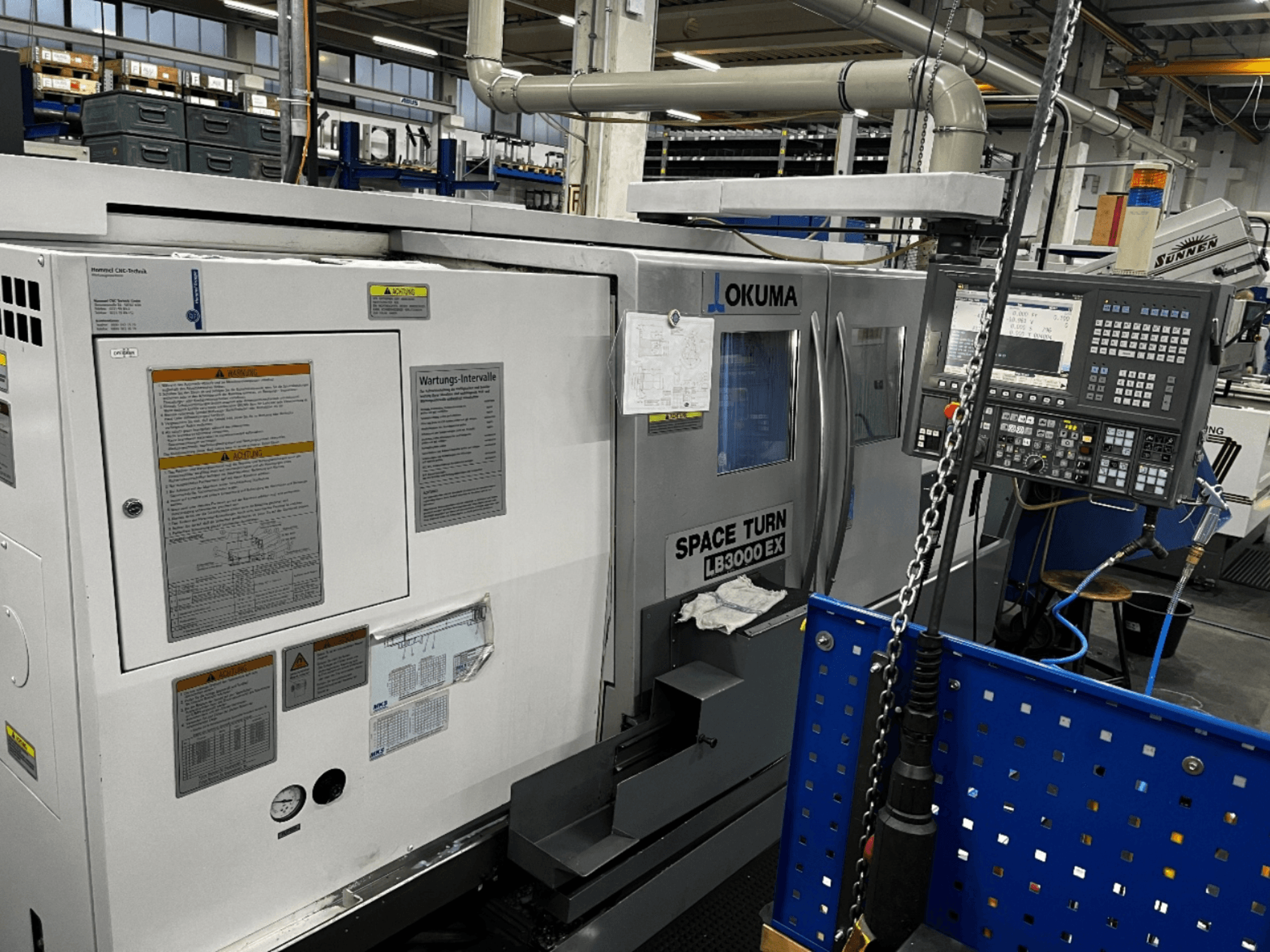

Okuma - LB3000 EX DE-TUR-OKU-2008-00002

• Control system OSP-P200

• 12-station tool turret radial

• Revolver 12 driven tools

• Number of revolvers 1

• Tool holder BMT 60

• Number of tools 12

• Number of tools available approx. 200

• Driven tool stations power 7.1 kW

• Driven tool torque 40.4 Nm

• Driven tool speed range 45–6000 rpm

• C-axis included

• Sub-spindle with W-axis

• Main spindle bore 110 mm

• Spindle bore 80 mm

• Spindle nose A2-11

• Spindle speed range 28–2800 rpm

• Spindle speed 45–5000 rpm

• Main spindle drive 22/15 kW

• Power at 40% duty cycle 22 kW

• Maximum turning diameter 340 mm

• Distance between centers 1020 mm

• Programmable chuck pressure (2 levels)

• Thread milling interpolation X/Y and Z/Y axes

• Workpiece catcher programmable

• Chip conveyor with integrated coolant tank

• Paper band filter system heavy-duty

• Coolant tank capacity 480 l

• Coolant pump 40 l/min at approx. 20 bar

• Coolant pump type Brinkmann TH 90/690-FSI

• Extraction connection diameter 200 mm

• Hollow clamping cylinder bore 110 mm

• Power chuck FORKARD QLC-KS 250-101 Z8

• Chuck bore 101 mm

• Drawtube for spindle max. 100 mm

• Collet chuck Hainbuch Axfix 100

• Clamping range 42–100 mm

• Manual collet change device

• Sub-spindle stroke 150 mm

• Bar feeder interface

• Short bar loader IRCO ILS RBK

• Bar capacity diameter 5–100 mm

• Spindle reduction tube diameter 90 mm length 1500 mm

• Chip disposal conveyor PVC with PU coating

• Hydraulic clamping cylinder bore 52 mm

• Machine dimensions 3.9 m x 2.1 m x 2.3 m

• Machine weight 4000–6000 kg

• Maintenance contract yes

• Utilization high

OPTIONAL for an additional charge: Approx. 200 tools available

Electrical maintenance was carried out 1.5 years ago. During this work, some electrical components were replaced or cleaned
