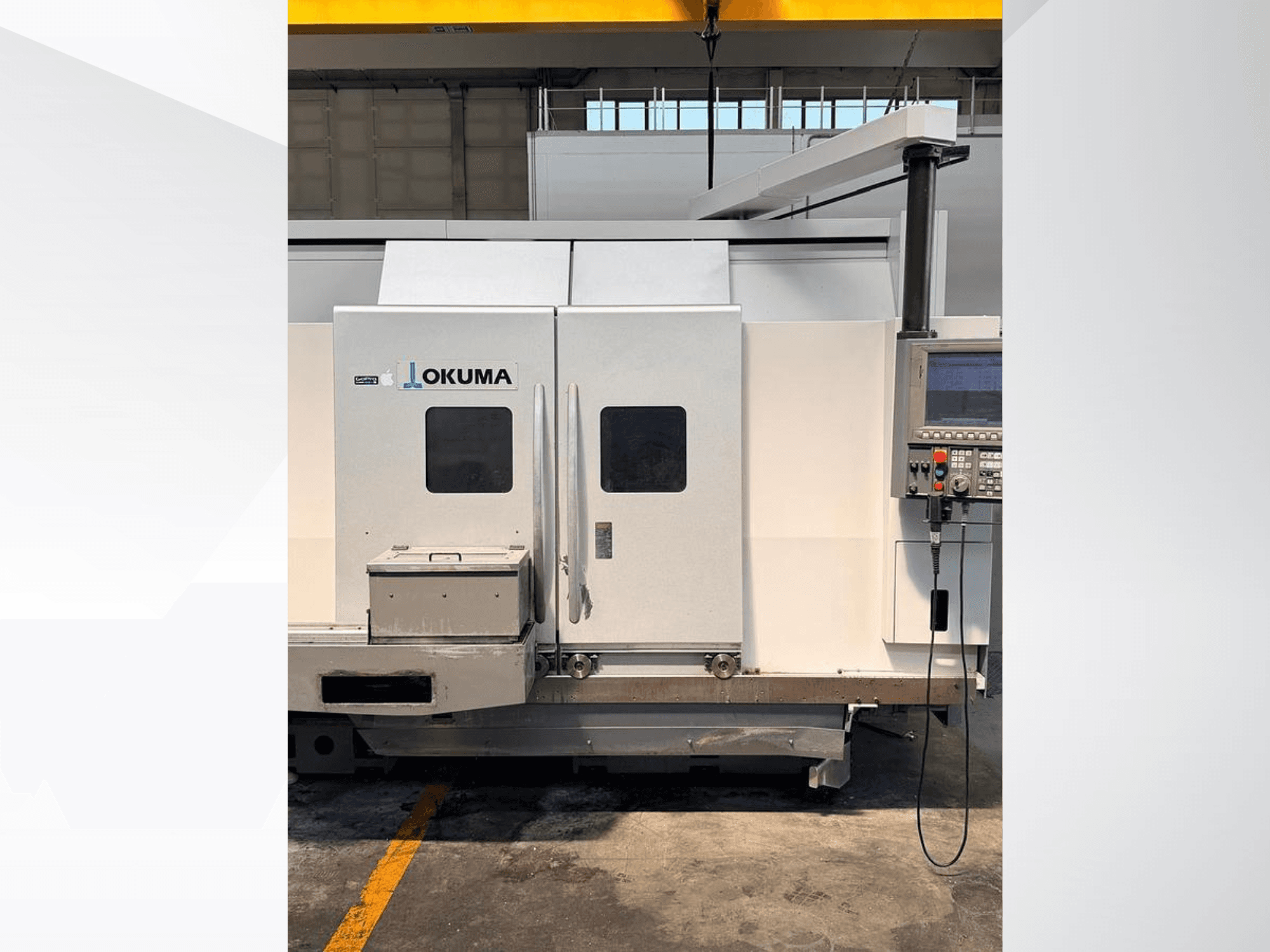

Okuma - LB 3000 EX MYW 800 IT-TUR-OKU-2011-00003

• Working capacity:

  • Distance between centers: 1,020 mm

  • Maximum swing over covers: 580 mm

  • Swing diameter between centers: 470 mm

  • Maximum turning diameter (standard tools): 410 mm

  • Maximum turning diameter (driven tools): 340 mm

• Main spindle:

  • Type: Big Bore ASA 8

  • Air blow system for the self-centering chuck

  • Spindle opening and closing possible during rotation

• Axis travel:

  • W: 825 mm

• Rapid traverse:

  • X: 25 m/min

  • W: 25 m/min

  • Z: 30 m/min

  • Y: 12.5 m/min

• Sub-spindle:

  • Connection: Flat 140

  • Maximum speed: 6,000 rpm

• Tool turret:

  • Type: OKUMA

  • Tool positions: 12

  • Driven-tool power: 7.1 kW / 4.1 kW

  • Maximum driven-tool speed: 6,000 rpm

Additional equipment

• LNS Quick Load Servo III bar feeder

• Bar interface preparation

• Right-side chip conveyor

• Finished-part catcher arm

• MSCTN80 A8 collet chuck with various collets

• Tool holder kit

• Kitagawa BB210 self-centering chuck

• Kitagawa B206 self-centering chuck
