Okuma - LB200-MWAT-TUR-OKU-2006-00001

Name: Okuma LB200-MW
Brand: Okuma
SKU: AT-TUR-OKU-2006-00001
Price: 1807545 INR
Availability: InStock

Rs. 1,807,545

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Okuma LB200-MW For Sale | gindumac.com

Show in original language

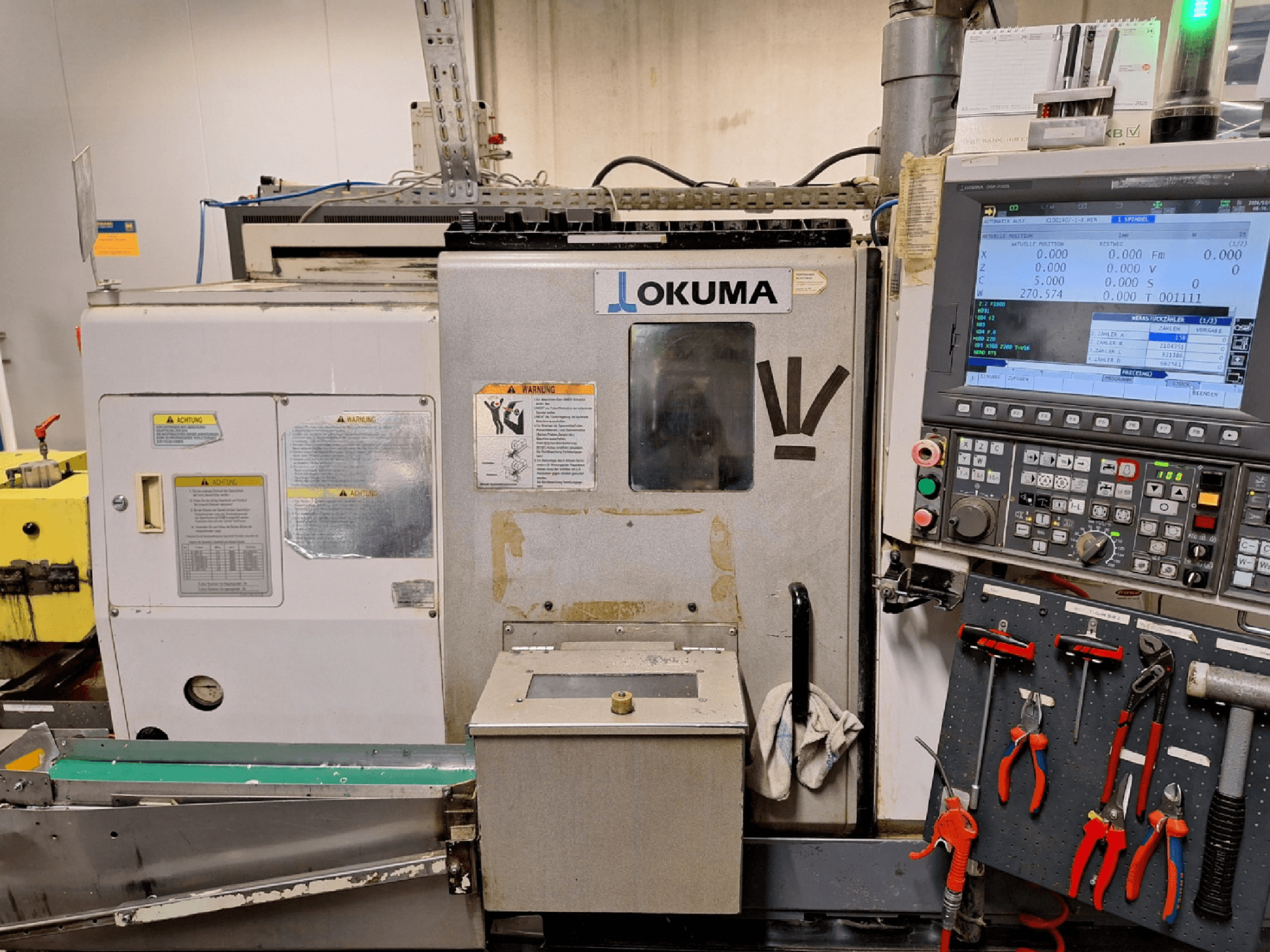

This 4-axis Okuma LB200-MW was manufactured in 2006. It features a tool turret with 12 positions and driven tools, providing versatility for various machining tasks. The machine has a spindle bore of approximately 42 mm and includes optional equipment such as a chip conveyor and coolant tray. If you are looking to get high-quality turning capabilities, consider the Okuma LB200-MW horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: Okuma
year: 2006
MODEL: LB200-MW
production hours: 42200
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
Available from: 01/01/2027

Technical Information - Okuma LB200-MW

Movement

Number of Axes: 4
X-axis Travel: 180 mm
Z-axis Travel: 335 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes

Additional Information

Counter spindle is non-functional

- Power ON Time: 99,999:59:59

- NC Running Time: 80,472:53:12

- Spindle Rotation Time: 62,302:15:19

- Operating/Main Time: 42,200:15:31 -

Spindle Bore (Passage): Approx. 42 mm

- Tool Turret: 1 Disc Turret with VDI 30, 12 positions

- Nominal Voltage: 400 V - Phase Count: 3 Phase

- Frequency: 50 Hz - Max Power Consumption: 17 kVA

- Total Current Consumption: 24.6 A

- Max Motor Current Consumption: 40 A

- Current Interruption At: 10 kA

Included: - 3m FMB Turbo 5-42 Bar Loading Magazine (YOM: 2007, with steady rest / Lünette and 1x loader kit) - Chip Conveyor - Coolant Tray - Operating Manual - Main Spindle Chuck without collets - Counter Spindle Chuck without collets

Optional (not included) :Various Basic Tool Holders (by agreement)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
