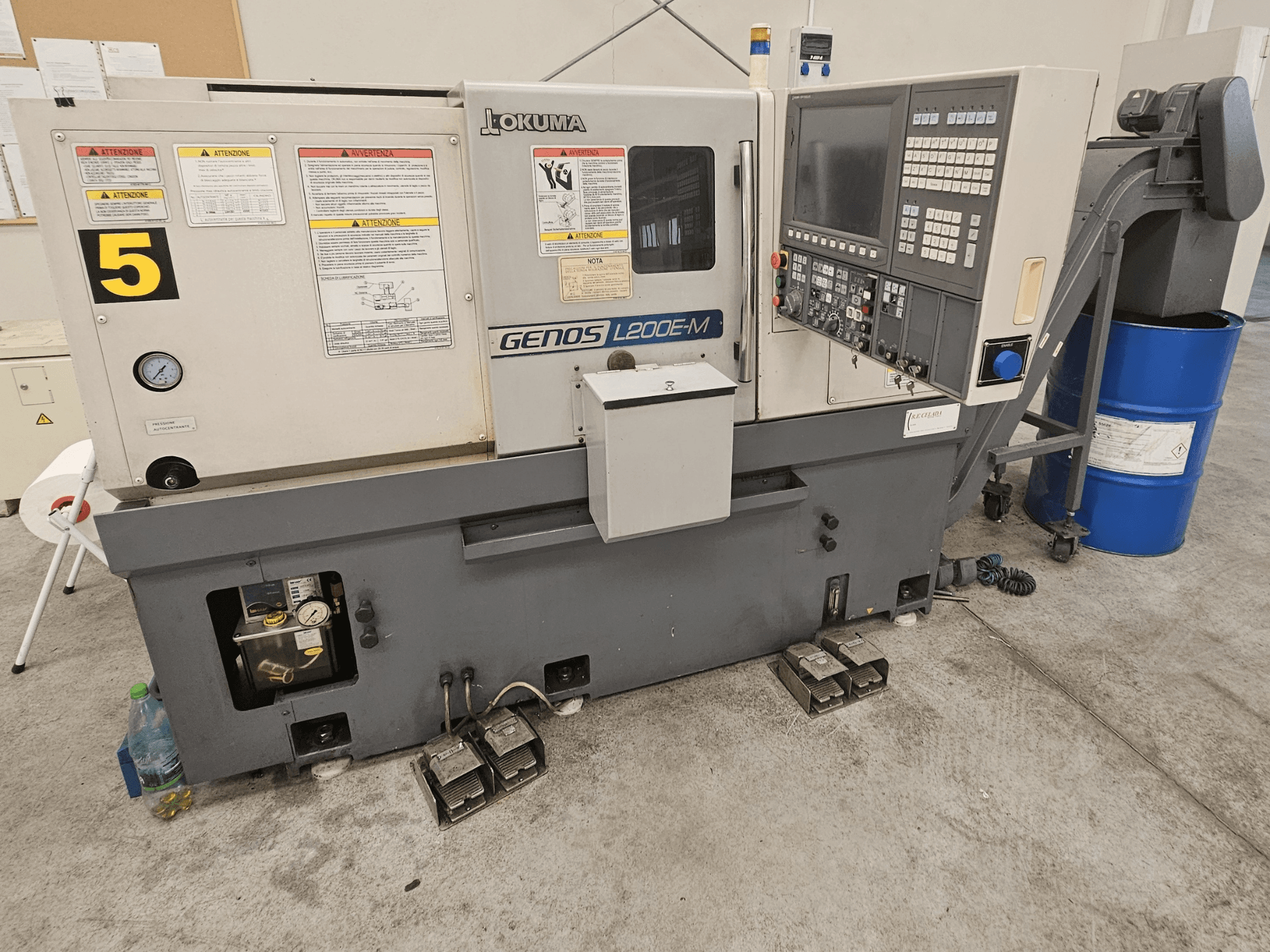

This 3-axis Okuma GENOS L200E-M was manufactured in 2011. It features a maximum turning diameter of 200 mm and a Z-axis travel of 380 mm. The machine is equipped with a 12-station turret with driven tools, allowing for milling and drilling on the C-axis. If you are looking to get high-quality turning capabilities, consider the Okuma GENOS L200E-M horizontal turning center we have for sale. Contact us for further details.
Overview
- brand: Okuma
- year: 2011
- MODEL: GENOS L200E-M
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: OKUMA
Technical Information - Okuma GENOS L200E-M
Control Unit
- Control Brand: OKUMA
- Control Model: OSP‑P200LA‑R
Movement
- Number of Axes: 3
- X-axis Travel: 210 mm
- Z-axis Travel: 380 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Speed: 4500 RPM
Additional Information
Turning configuration: 2 axes (X, Z) + C‑axis; no Y‑axis
Tailstock: Equipped
Tool presetter: Automatic tool presetter installed
Turret: 12‑station turret with driven tools (milling and drilling on C‑axis)
Max. turning diameter: 200 mm
Spindle nose: ASA A2‑6
Spindle bore diameter: approx. 50 mm
Electrical supply: 380 V, 3‑phase, 50/60 Hz
Average apparent power: 17.7 kVA
Full‑load current: 26.7 A
Max. motor current draw: 45 A
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
