ACRA - FEL-1860ENC/BSI-TUR-ACR-2010-00001

Name: ACRA FEL-1860ENC/B
Brand: ACRA
SKU: SI-TUR-ACR-2010-00001
Price: 1885022 INR
Availability: InStock

Rs. 1,885,022

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used ACRA FEL-1860ENC/B For Sale | gindumac.com

Show in original language

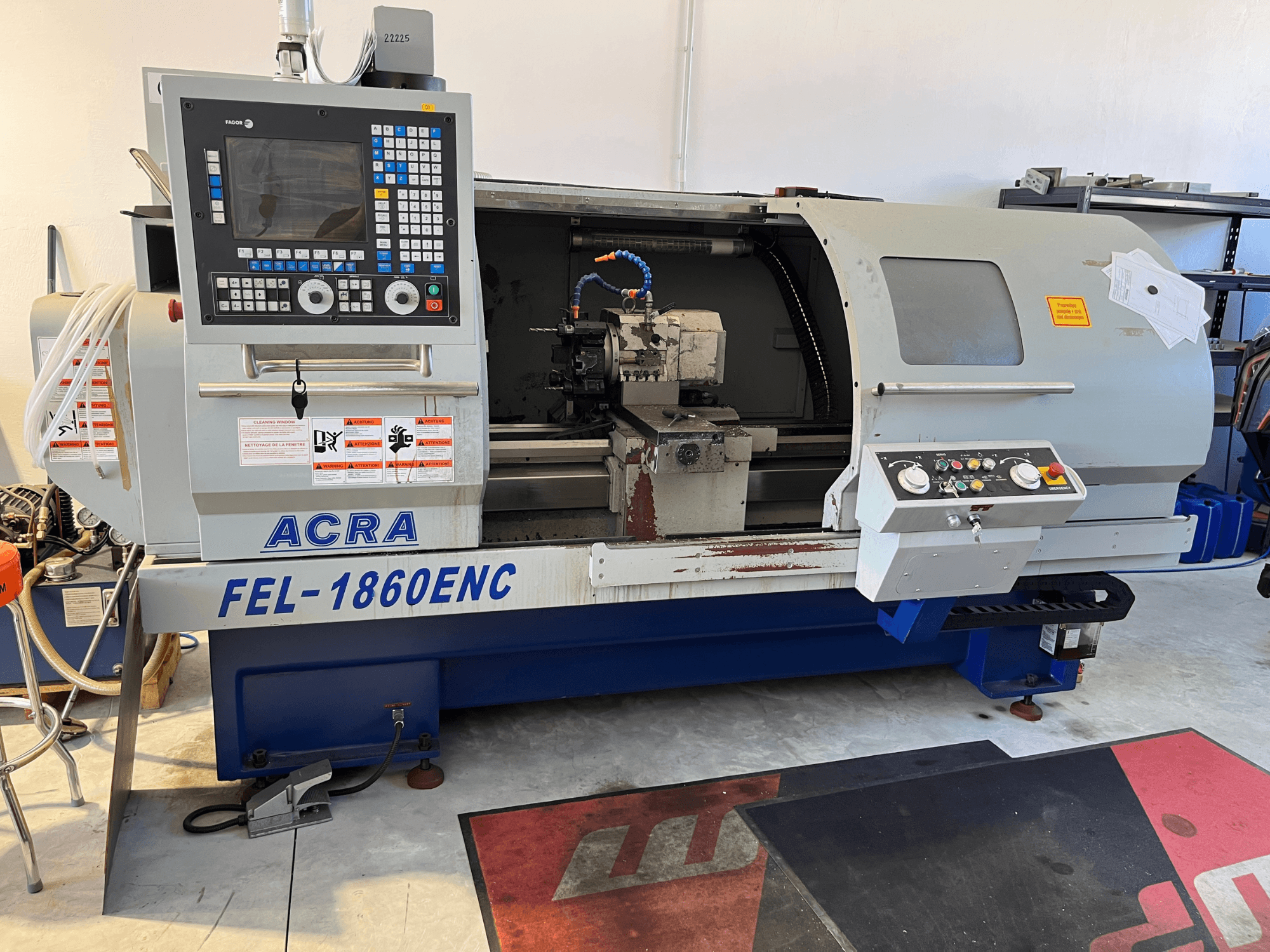

Horizontal turning machine manufactured in 2010. This ACRA FEL-1860ENC/B features a swing over bed of Ø460 mm and a distance between centers of 1,400 mm. It offers a maximum working diameter of Ø260 mm and a spindle speed range of 27–2,500 rpm. If you are looking to get high-quality turning capabilities, consider the ACRA FEL-1860ENC/B machine we have for sale. Contact us for further details.

Overview

brand: ACRA
year: 2010
MODEL: FEL-1860ENC/B
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
control unit brand: FAGOR

Technical Information - ACRA FEL-1860ENC/B

Control Unit

Control Brand: FAGOR
Control Model: Fagor 8055

Dimensions

Machine Height: 2240 mm
Machine Length: 3360 mm
Machine Weight: 2600 kg
Machine Width: 2115 mm

Movement

Number of Axes: 2
X-axis Travel: 230 mm
Z-axis Travel: 1350 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Through-spindle Coolant: No

Additional Information

Spindle motor power: 7.5 kW continuous; 11 kW (30 min rating)
Spindle speed range: 27–2,500 rpm
Spindle bore: Ø60 mm
Rapid Traverse: X-axis 7.5 m/min; Z-axis 10 m/min
Pinol diameter: Ø68 mm
Pinol way: 153 mm
Pinol tool taper: MT4
Lubrication tank: 85 l
Swing over bed: Ø460 mm
Distance between centers: 1,400 mm
Max. working length: 1,250 mm
Max. working diameter: Ø260 mm
Bed width: 305 mm
Spindle speed control: infinitely variable
Tool post: Manual 4-way tool post
Tool size: 20 × 20 mm
Machine weight, gross: approx. 3,100 kg
CNC controller
Rotating center MT4
Level pads, 6 pcs
Tool set and box
Machine light
Operation manual and parts list

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
