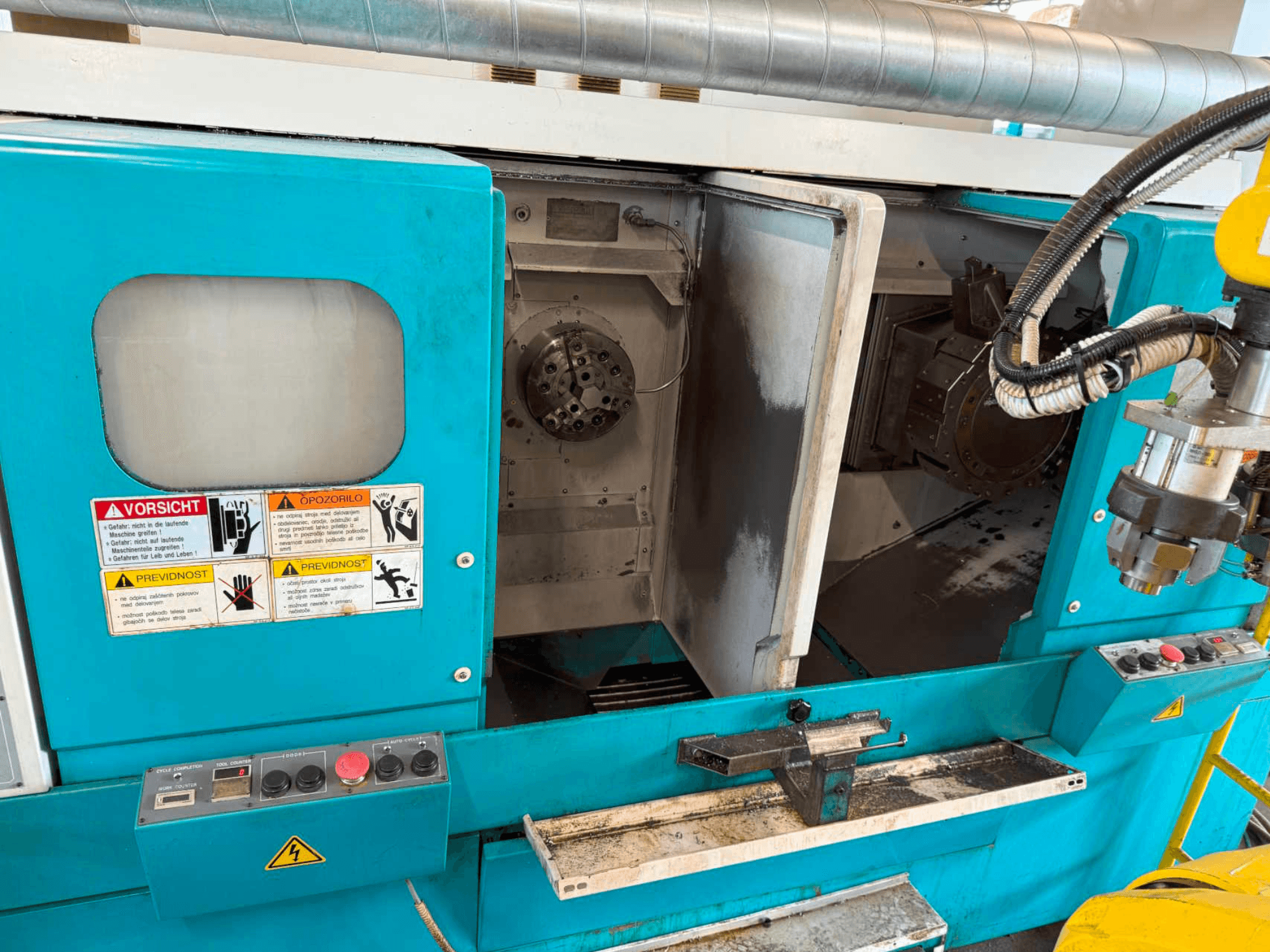

DOOSAN H310T horizontal turning machine, front view showing control panel and spindle area with safety warnings.
DOOSAN H310T horizontal turning machine, front view showing control panel and spindle area with safety warnings.

DOOSAN - H310TSI-TUR-DOO-2005-00002

Rs. 4,509,786
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis DOOSAN H310T was manufactured in 2006. It features a maximum turning diameter of 310 mm and a turning length of 230 mm. The machine is equipped with twin spindles and twin turrets, allowing for efficient machining operations. With a spindle speed of up to 3,500 rpm and a robust construction, this CNC turning center is designed for high productivity. If you are looking to get high-quality turning capabilities, consider the DOOSAN H310T machine we have for sale. Contact us for further details.

Overview

  • brand: DOOSAN
  • year: 2005
  • MODEL: H310T
  • application type: Turning
  • Location: Slovenia
  • machine type: Horizontal Turning Machine
  • control unit brand: FANUC

Technical Information - DOOSAN H310T

Control Unit

  • Control Brand: FANUC
  • Control Model: 18T

Movement

  • X-axis Travel: 210 mm
  • Z-axis Travel: 230 mm

Additional Information

  • Rapid traverse (X/Z): 24 m/min

  • Cutting feedrate: 0.001 – 500 mm/rev

  • Number of spindles: 2

  • Chuck size: Ø250 mm (3-jaw hydraulic chuck)

  • Spindle nose: ASA A2-8

  • Spindle bore: 77 mm

  • Spindle speed: up to 3500 rpm

  • Spindle motor power: 15 / 18.5 kW (AC)

  • Through-spindle coolant: Yes

  • Number of turrets: 2

  • Tool stations: 2 × 10

  • Standard tool size: 25 mm

  • Turret indexing time: 0.35 sec

  • Supports turning, drilling, tapping, and milling operations

  • CNC Control: FANUC 18T

  • Absolute / incremental positioning

  • Linear, circular, and threading interpolation

  • Automatic sliding doors

  • Chip conveyor

  • Separate left/right bed design for high rigidity and stability

  • Prepared for automation

  • Very stable and compact heavy-duty construction

  • Floor space: approx. 2840 × 2125 mm

  • Machine height: approx. 2383 mm

  • Machine weight: approx. 7800 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
