➤ Used DOOSAN PUMA GT3100LM For Sale | gindumac.com

Show in original language

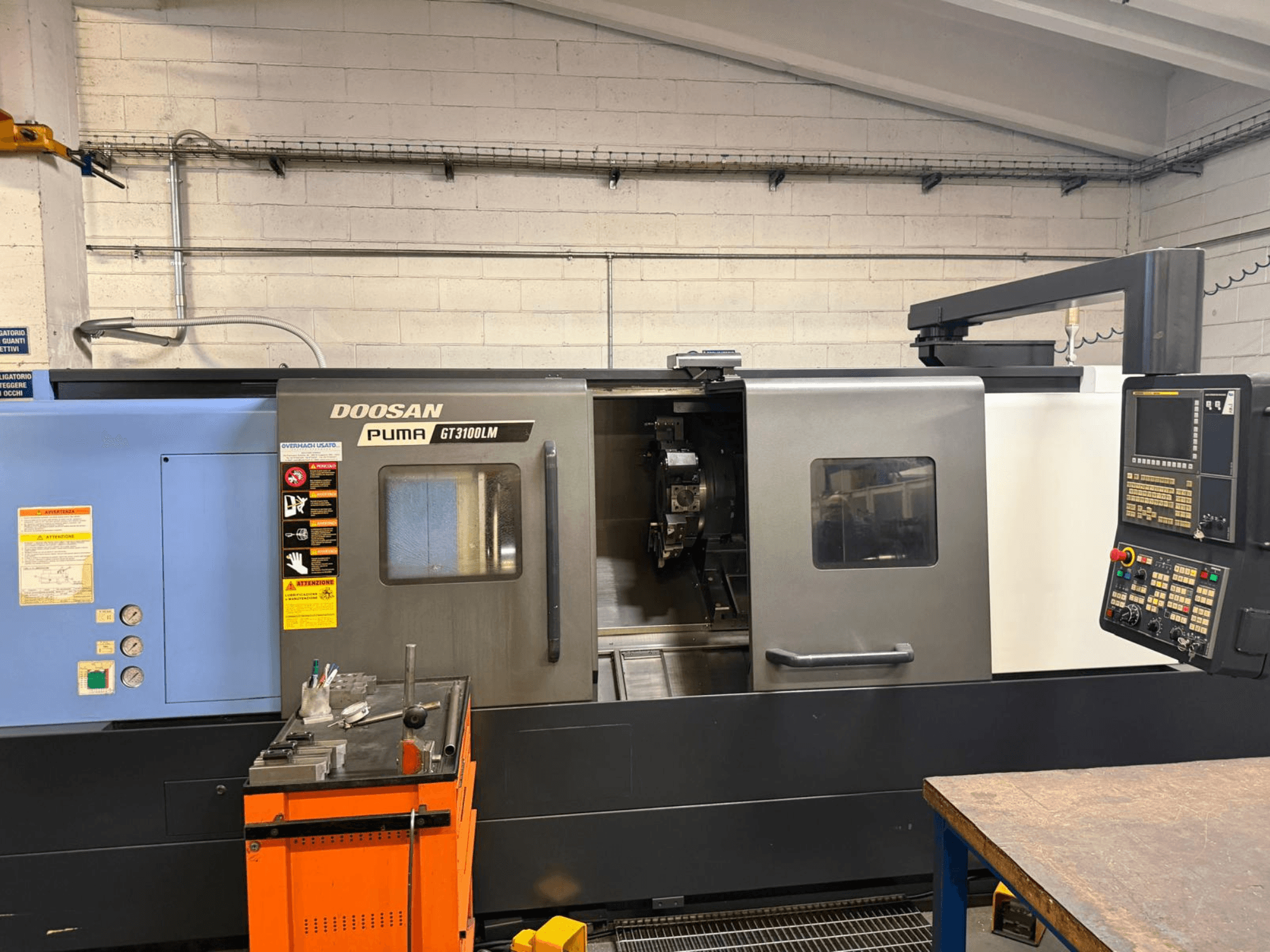

This 3-axis DOOSAN PUMA GT3100LM was manufactured in 2016. It features a maximum turning diameter of 376 mm and a turning length of 1,245 mm. The machine is equipped with a 12-station turret and live tooling capability, providing versatility for various applications. If you are looking to get high-quality turning capabilities, consider the DOOSAN PUMA GT3100LM horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2016
MODEL: PUMA GT3100LM
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN PUMA GT3100LM

Control Unit

Control Brand: FANUC

Dimensions

Machine Height: 2198 mm
Machine Length: 4855 mm
Machine Weight: 7050 kg
Machine Width: 2030 mm

Movement

Number of Axes: 3
X-axis Travel: 260 mm
Z-axis Travel: 1350 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Power: 26 kW
Spindle Speed: 2800 RPM

Additional Information

Electrical: Nominal capacity 33.91 kVA; AC 400 V; 3Ø, PE, 50/60 Hz; Full load current 48.95 A; Interrupt power 5 kA; Short circuit withstand 10 kA; Electrical diagram edition GT3100H31UA00
Chuck: Samchully MH-212, 3-jaw hydraulic; Chuck size 305 mm
Turning capacity: Max swing over bed 720 mm; Max turning diameter 376 mm; Max turning length 1,245 mm; Max bar capacity 102 mm
Spindle: Nose A2-11; Bore diameter 115 mm; Motor power 26/22 kW (30 min/continuous); Max torque 1,123 Nm; C-axis indexing increment 0.001°
Turret: BMT65P, 12 stations; Live tool max speed 5,000 rpm; Live tool motor power 7.5 kW; 12-station turret with live tooling capability
Axes: Rapids X 24 m/min, Z 30 m/min; Guideways: Solid box guideways on all axes
Tailstock: Programmable movable/digital tailstock with live center; Quill taper MT5
Counters: Power-on 13,813 h 38 min; Operating 8,538 h 37 min; Cutting 5,547 h 03 min

Additional equipment

External Eppinger Preci-Flex live tool holders and static blocks
Tool-setting probe arm
Original technical documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
