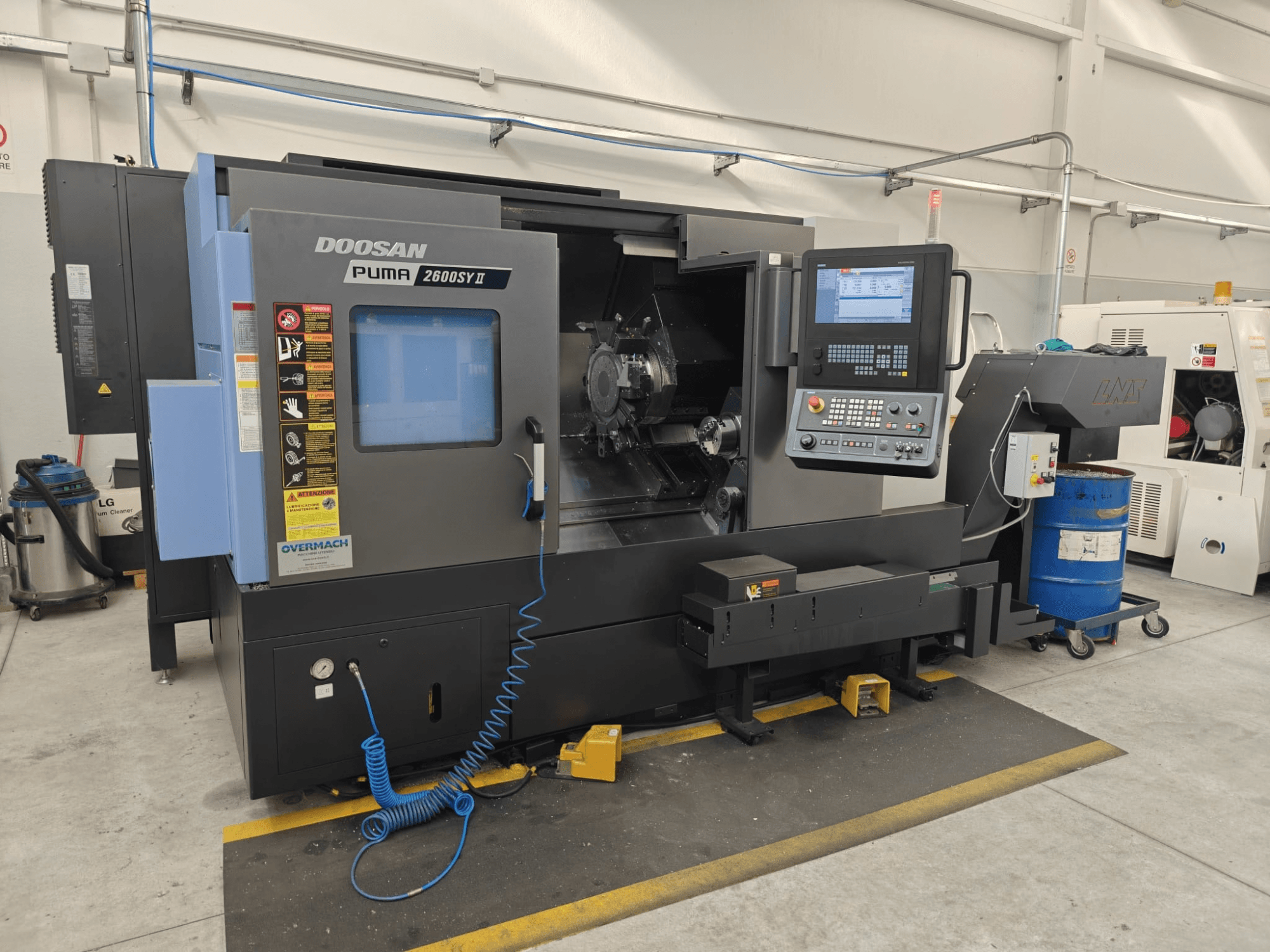

DOOSAN - PUMA 2600 SY IIIT-TUR-DOO-2020-00003

• Controlled axes: X, Z, Y, B, C1, C2

• Slant bed: 30°

Travels and rapid traverse

• B-axis (sub-spindle) travel: 830 mm

• C1-axis: ±360°

• C2-axis: ±360°

• Rapid traverse (X / Z / Y / B): 30 / 30 / 10 / 30 m/min

Main spindle

• Spindle nose: ASA A2-8

• Hydraulic chuck: 254 mm, 3-jaw

• Max. torque: 730 Nm

• Spindle bore: 91 mm

• Drawtube ID: 82 mm

• Integrated built-in spindle motor

• C1 positioning resolution: 0.001°

Sub-spindle

• Spindle nose: ASA A2-5

• Hydraulic chuck: 170 mm, 3-jaw

• Speed range: 60–6,000 rpm

• Motor power: 18.2 kW

• Max. torque: 220 Nm

• Spindle bore: 62 mm

• Drawtube ID: 50 mm

• Built-in motor

• C2 positioning resolution: 0.001°

• Part ejector stroke: 120 mm

Machining capacity

• Max. swing over bed: 780 mm

• Max. swing at front door: 680 mm

• Max. swing over carriage: 630 mm

• Max. turning diameter: 376 mm

• Max. turning length between centers: 760 mm

• Max. bar capacity, main spindle: 81 mm

• Max. bar capacity, sub-spindle: 49 mm

• Off-center milling capacity (Y-axis): 105 mm (±52.5 mm)

• Max. cantilever workpiece weight: 260 kg

• Max. workpiece weight using sub-spindle: 520 kg

Turret and driven tools

• Turret type: BMT-65

• Turret indexing positions: 24

• Tool stations: 12 (all 12 driven)

• Indexing time: 0.15 / 0.65 sec

• Turning tool size: 25 × 25 mm

• Boring tool capacity: Ø50 mm / Ø32 mm

• Driven-tool speed: 50–5,000 rpm

• Driven-tool power: 4.1 / 7.79 kW

• Max. driven-tool torque: 79.8 Nm

• ER-32 capacity: Ø3–20 mm

• Rigid tapping: Yes
