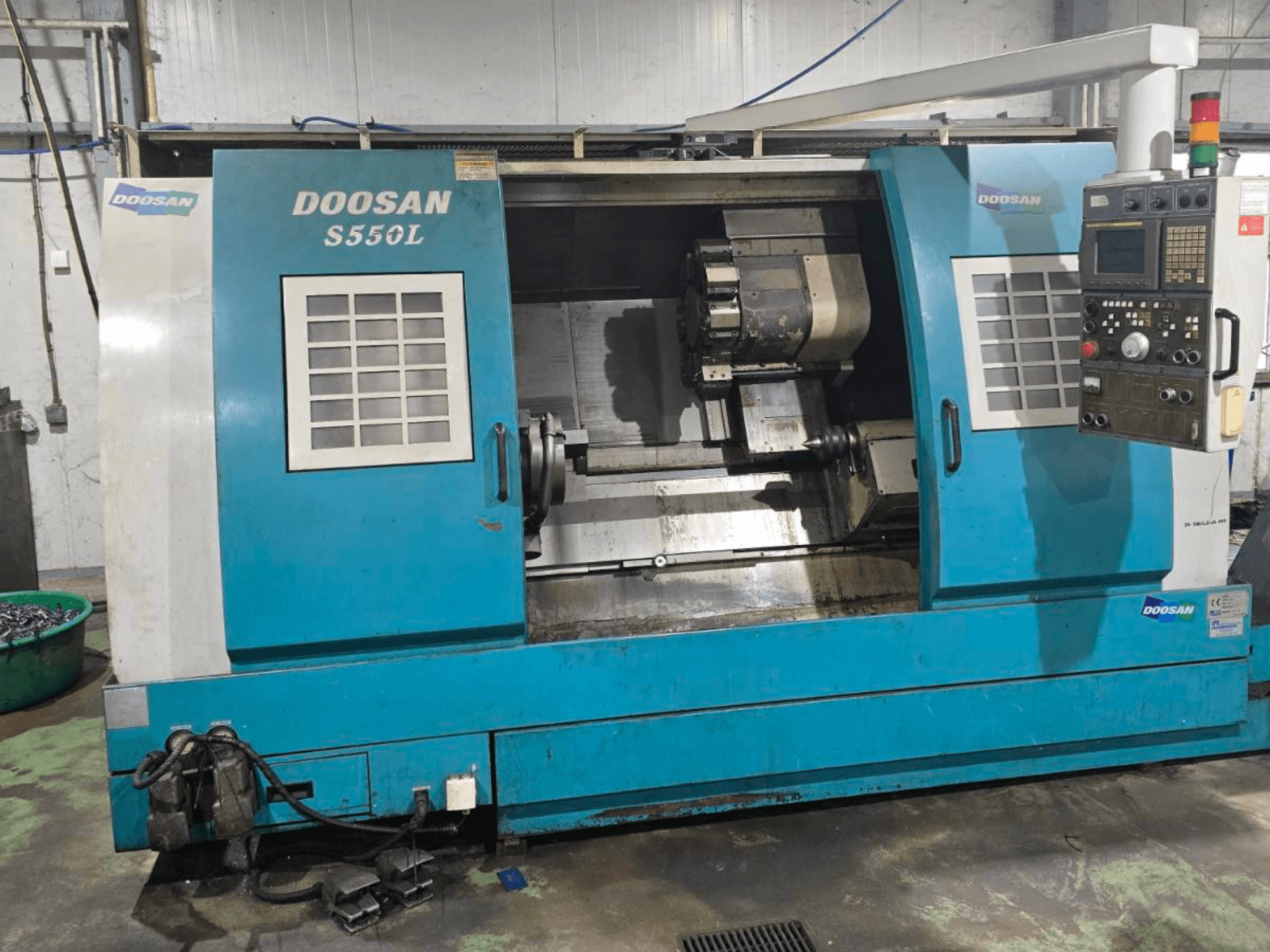

Horizontal turning machine manufactured in 2002. This DOOSAN S 550 L features a maximum workpiece diameter of 550 mm and a spindle power of 22 kW. It includes a programmable tailstock and a 12” 3-jaw chuck, enhancing operational efficiency and precision. If you are looking to get high-quality turning capabilities, consider the DOOSAN S 550 L machine we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2002
- MODEL: S 550 L
- application type: Turning
- Location: Serbia
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DOOSAN S 550 L
Control Unit
- Control Brand: FANUC
- Control Model: 21i-T
Movement
- Number of Axes: 2
- X-axis Travel: 550 mm
- Z-axis Travel: 1130 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 22 kW
- Spindle Speed: 2500 RPM
Additional Information
Condition: Fully functional, ready for demonstration; machine still under power; enhanced operational efficiency and precision
Capacities: max workpiece diameter 550 mm; swing over bed 710 mm; distance between centers 1230 mm; spindle center height 1067 mm; bed width across saddle slideway 280 mm
Spindle: nose ASA A2-8; spindle hole taper MT No. 7; spindle bore Ø102 mm; front bearing Ø150 mm; bearings: roller/angular + thrust; speed override 50–150; motor AC 18.5/22 kW (continuous/30 min)
Turret/tooling: V12 turret; standard tool shank 25 mm; max boring bar Ø50 mm
Axes: rapid traverse rate X: 20, Z: 24 (units as provided)
Control/electrics: NC unit F-21iTB; total power consumption 31 kVA
Pumps: hydraulic pump motor AC 1.5 – 4P kW; way lubricating pump motor AC 0.02 – 4P kW; coolant pump motor AC 0.4 – 2P
Other features: steady-rest and tailstock move when hooked to the carriage
Additional equipment
Programmable tailstock
12" 3-jaw chuck
Self-centring steady rest SLU 3.1
Automatic tool measuring arm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
