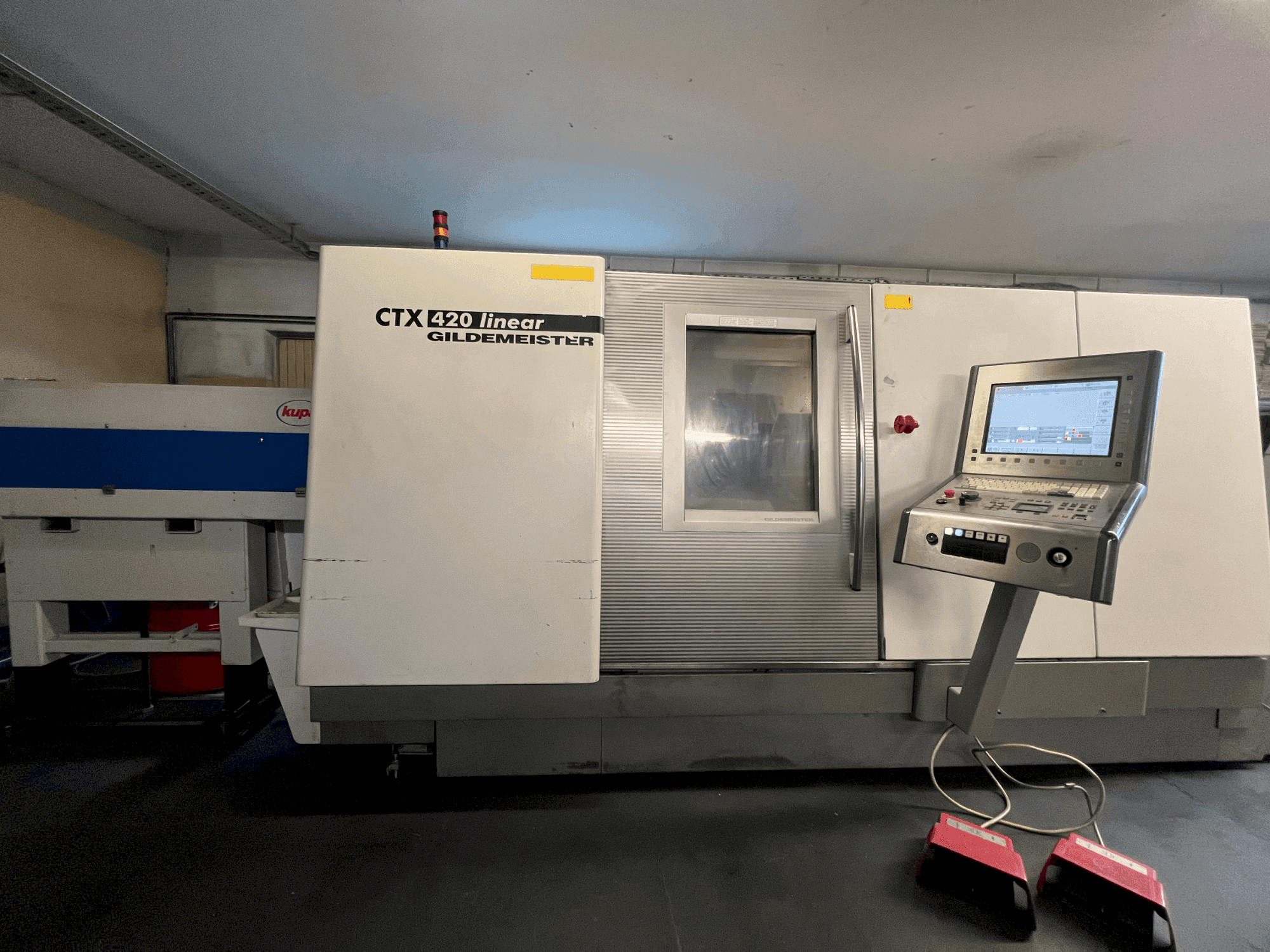

This 3-axis Gildemeister CTX 420 linear was manufactured in 2003. It features a max turning diameter over bed of 680 mm and a chuck diameter of 250 mm, suitable for diverse turning tasks. Equipped with a bar feeder and driven tools, it enhances productivity and precision. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX 420 linear machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Gildemeister
- year: 2003
- MODEL: CTX 420 linear
- application type: Turning
- Location: Slovenia
- machine type: Horizontal Turning Machine
Technical Information - Gildemeister CTX 420 linear
Main drive
- Number of axis: 3
Additional equipment
- - Tool support system: Rev. 20/20
- - It is equipped with a bar feeder and driven tools.
- - Longitudinal slide travel: 635 mm
- - Spindle nose (DIN flat flange): 170h5
- - Internal spindle taper: 79 mm
- - Spindle diameter: 120 mm
- - Chuck diameter: 250 mm
- - Max. torque: 270 N
- - Number of bed units: 1
Additional Information
- Technical Machine Benefits:
- - Max. Turning diameter over bed: 680 mm / max. Turning diameter over guide rails: 565 mm
- - Max. Workpiece length: 600 mm / max. Machining length: 680 mm
- - Base area: 3655 mm x 1923 mm
- - Max. Tailstock travel: 260 mm
- - Center sleeve diameter: 580 mm
- - Base area dimensions: 3655 mm x 1923 mm
- - Voltage: 400 v
- - Total power: 6 kva
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
