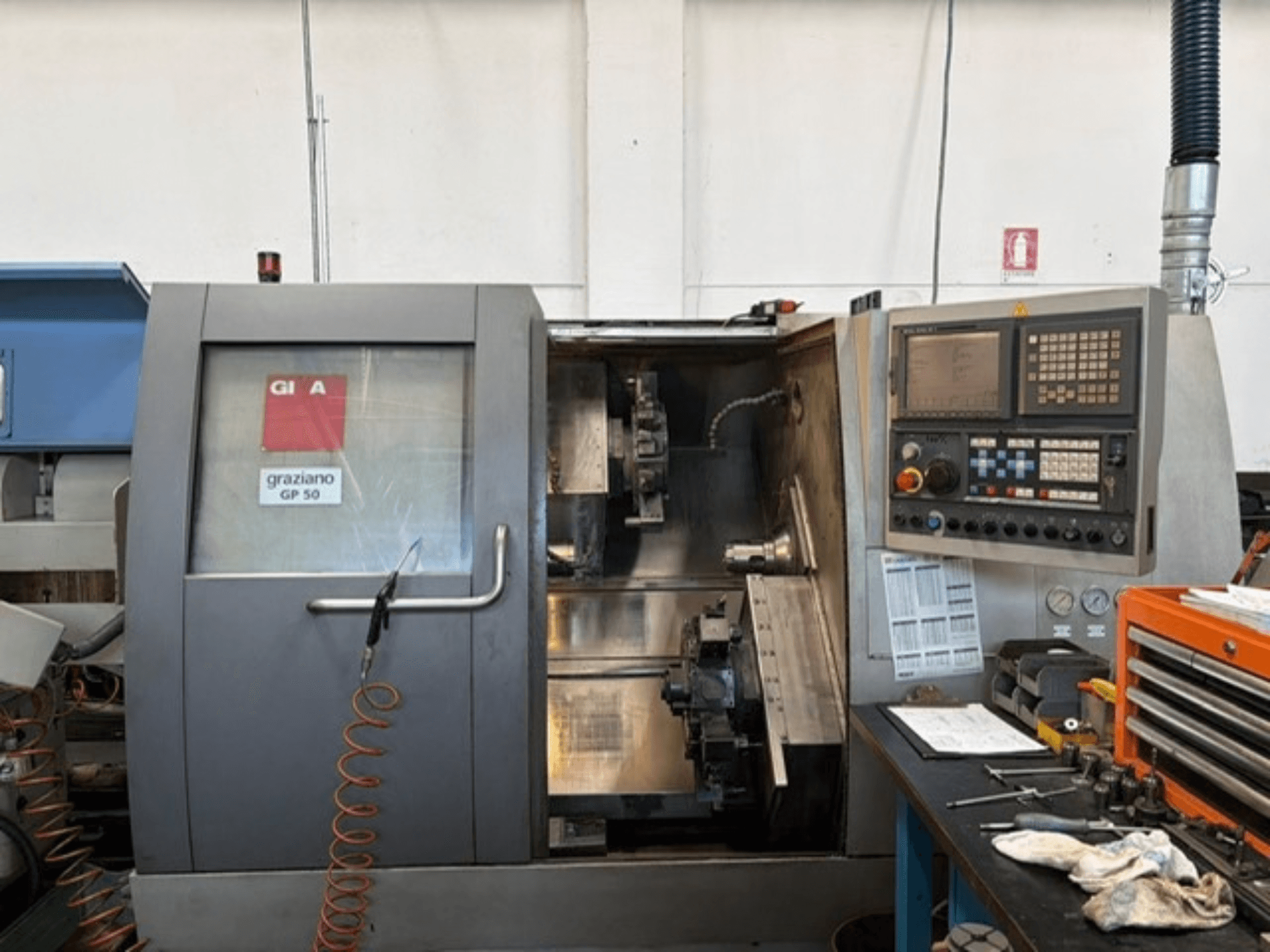

Gildemeister - GP 50 IT-TUR-GIL-2004-00002

• Y-axis: No

• B-axis: Yes (associated with sub-spindle)

• C-axis: Continuous on both spindles

• Spindles:

  • Main spindle: Independent electrospindle with continuous C-axis

  • Sub-spindle: Independent electrospindle with continuous C-axis

  • Twin-spindle configuration

  • Bar passage (main spindle): 50 mm

• Turrets / driven tools:

  • 2 independent Sauter turrets

  • Tool stations: 12 + 12 (24 total), all positions suitable for driven tools

  • Driven tools: Yes (both turrets)

  • Main spindle turret: 12 driven tool positions

  • Sub-spindle turret: 12 driven tool positions

• Machine configuration:

  • 5-axis configuration

  • No Y-axis

  • B-axis with sub-spindle

  • Independent main and sub-spindle

  • Twin independent turret configuration

  • 24 total tool stations

  • Driven tooling on both turrets

Additional equipment

• Bar feeder: Top Automazioni

  • Bar feeder passage: 70 mm

  • Automatic bar feeding system

• Tooling / accessories included:

  • 12 tool holders for 20 × 20 mm or 25 × 25 mm square tools

  • 4 radial driven tool holders

  • 2 axial driven tool holders, 90°

  • 10 drill holders, 90°

  • Approx. 60 spindle collets in various diameters

  • Collet types: BA60 and BA52

  • Collets for Top Automazioni bar feeder
