Gildemeister - TWIN 65DE-TUR-GIL-2006-00003

Rs. 6,348,295
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

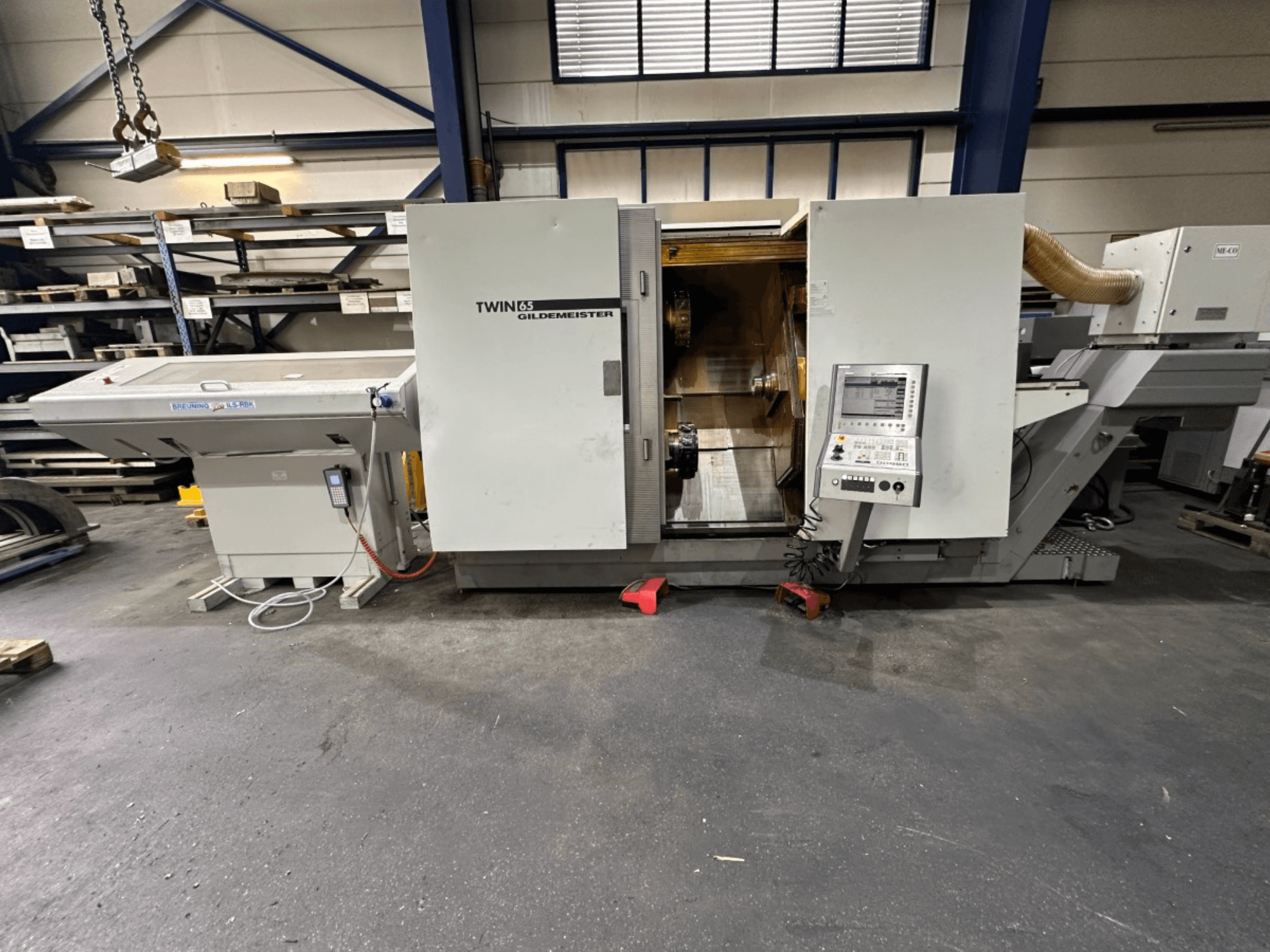

This 9-axis Gildemeister TWIN 65 was manufactured in 2006. It features a spindle power of 65 kVA and a maximum spindle speed of 5000 rpm. The machine includes a tool magazine with 24 tools and a turret-type tool changer. With a robust weight of 12,000 kg and dimensions of 7855 mm x 2500 mm x 2900 mm, this horizontal turning machine is equipped with special features like a touch probe and internal coolant supply. If you are looking to get high-quality turning capabilities, consider the Gildemeister TWIN 65 machine we have for sale. Contact us for further details.

Overview

  • brand: Gildemeister
  • year: 2006
  • MODEL: TWIN 65
  • production hours: 38407
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • control unit brand: SIEMENS

Technical Information - Gildemeister TWIN 65

Control Unit

  • Control Brand: SIEMENS
  • Control Model: 840 Powerline

Dimensions

  • Machine Height: 2900 mm
  • Machine Length: 7855 mm
  • Machine Weight: 12000 kg
  • Machine Width: 2500 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 300 mm
  • Z-axis Travel: 650 mm

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: Yes
  • Number of Tools: 24
  • Spindle Power: 26 kW
  • Spindle Speed: 5000 RPM
  • Taper Size: VDI 30

Additional Information

  • Machine design: 60° slant bed

  • Guideways: Roller guideways

  • Max turning diameter: 250 mm

  • Max turning diameter (standard): 120 mm

  • Max turning length: 900 mm

  • X1 travel (upper slide): 300 mm

  • Z1 travel (upper slide): 650 mm

  • Y1 travel (optional): ±40 mm

  • X2 travel (lower slide): 180 mm

  • Z2 travel (lower slide): 650 mm

  • X3 travel (counter spindle): 175 mm

  • Z3 travel (counter spindle): 670 mm

  • Main spindle chuck size: 175 / 200 mm

  • Maximum rod diameter (without reducing tubes): 62 / 65 mm

  • Spindle bore diameter: 79 mm

  • Spindle nose diameter: 170 mm

  • Collet diameter: 66 mm

  • Front bearing diameter: 120 mm

  • Main spindle power (40/100% ED): 35 / 25 kW

  • Main spindle speed range: up to 5000 rpm

  • Main spindle torque (40/100% ED): 370 / 270 Nm

  • Spindle drive type: AC motor with integrated spindle motor

  • C-axis: Integrated for oriented stopping and contouring

  • C-axis speed: 2000 rpm

  • C-axis holding torque: 270 Nm

  • Counter spindle power (40/100% ED): 26 / 21 kW

  • Counter spindle speed range: up to 5000 rpm

  • Counter spindle torque (40/100% ED): 290 / 230 Nm

  • C-axis (counter spindle) speed: 2000 rpm

  • C-axis (counter spindle) holding torque: 230 Nm

  • Rapid traverse X/Z (slide 1): 30 / 30 m/min

  • Feed force X/Z (slide 1): 4.0 / 7.0 kN

  • Positioning resolution X/Z: 0.0005 mm

  • Motor torque X/Z: 6 / 10.5 Nm

  • Motor speed X/Z: 3000 rpm

  • Ball screw pitch X/Z: 20x32 / 20x40 mm

  • Rapid traverse X/Y/Z (with Y-axis): 30 / 15 / 30 m/min

  • Feed force X/Y/Z: 4.0 / 4.0 / 7.0 kN

  • Positioning resolution X/Y/Z: 0.0005 mm

  • Motor torque X/Y/Z: 6 / 6 / 10.5 Nm

  • Motor speed X/Y/Z: 3000 rpm

  • Ball screw pitch X/Y/Z: 20x32 / 10x32 / 20x40 mm

  • Rapid traverse X/Z (slide 2): 30 / 30 m/min

  • Feed force X/Z (slide 2): 4.0 / 7.0 kN

  • Positioning resolution X/Z (slide 2): 0.0005 mm

  • Motor torque X/Z (slide 2): 6 / 10.5 Nm

  • Motor speed X/Z (slide 2): 3000 rpm

  • Ball screw pitch X/Z (slide 2): 20x32 / 20x40 mm

  • Rapid traverse X/Z (counter spindle slide): 15 / 30 m/min

  • Feed force X/Z (counter spindle slide): 4.0 / 7.0 kN

  • Positioning resolution X/Z (counter spindle): 0.0005 mm

  • Motor torque X/Z (counter spindle): 10.5 / 10.5 Nm

  • Motor speed X/Z (counter spindle): 3000 rpm

  • Ball screw pitch X/Z (counter spindle): 10x32 / 20x40 mm

  • Number of tool stations: 12

  • Tool holder: VDI 30

  • Tool changer type: Turret

  • Tool shank size (DIN 69880): 30 / 40 mm

  • Number of driven tool stations: 12

  • Driven tools: all 12 stations capable of driven tools

  • Driven tool power (40/100% ED): 11.7 / 8.4 kW

  • Driven tool torque (40/100% ED): 28 / 20 Nm

  • Driven tool speed: up to 4000 rpm

  • Tailstock stroke (optional): 300 mm

  • Tailstock force: 150 / 630 daN

  • Center size: MK 4

  • Hydraulic tank capacity: 20 l

  • Hydraulic pump power: 2.2 kW

  • Hydraulic pressure max: 90 bar

  • Clamping pressure main spindle: 80 bar

  • Clamping pressure counter spindle: 70 bar

  • Clamping pressure tailstock: 50 bar

  • Coolant tank capacity: 250 l

  • Coolant pump power: 1.7 kW

  • Coolant flow rate at 6 bar: 20 l/min

  • Electrical connection/total power: 65 kVA

  • Operating voltage: 400 V

  • Frequency: 50 Hz

  • Fuse protection: 125 A

  • Voltage tolerance: +6% / -10%

  • Machine length: 5032 mm

  • Machine depth: 3048 mm

  • Machine height: 2445 mm

  • Machine weight: 10000 kg

  • Noise level during machining: 77 dB(A)

  • Noise level at idle: 78 dB(A)

Additional equipment

  • Touch probe

  • Chip conveyor

  • Internal coolant supply

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
