➤ Used MICROCUT SF 48/1000 For Sale | gindumac.com

Show in original language

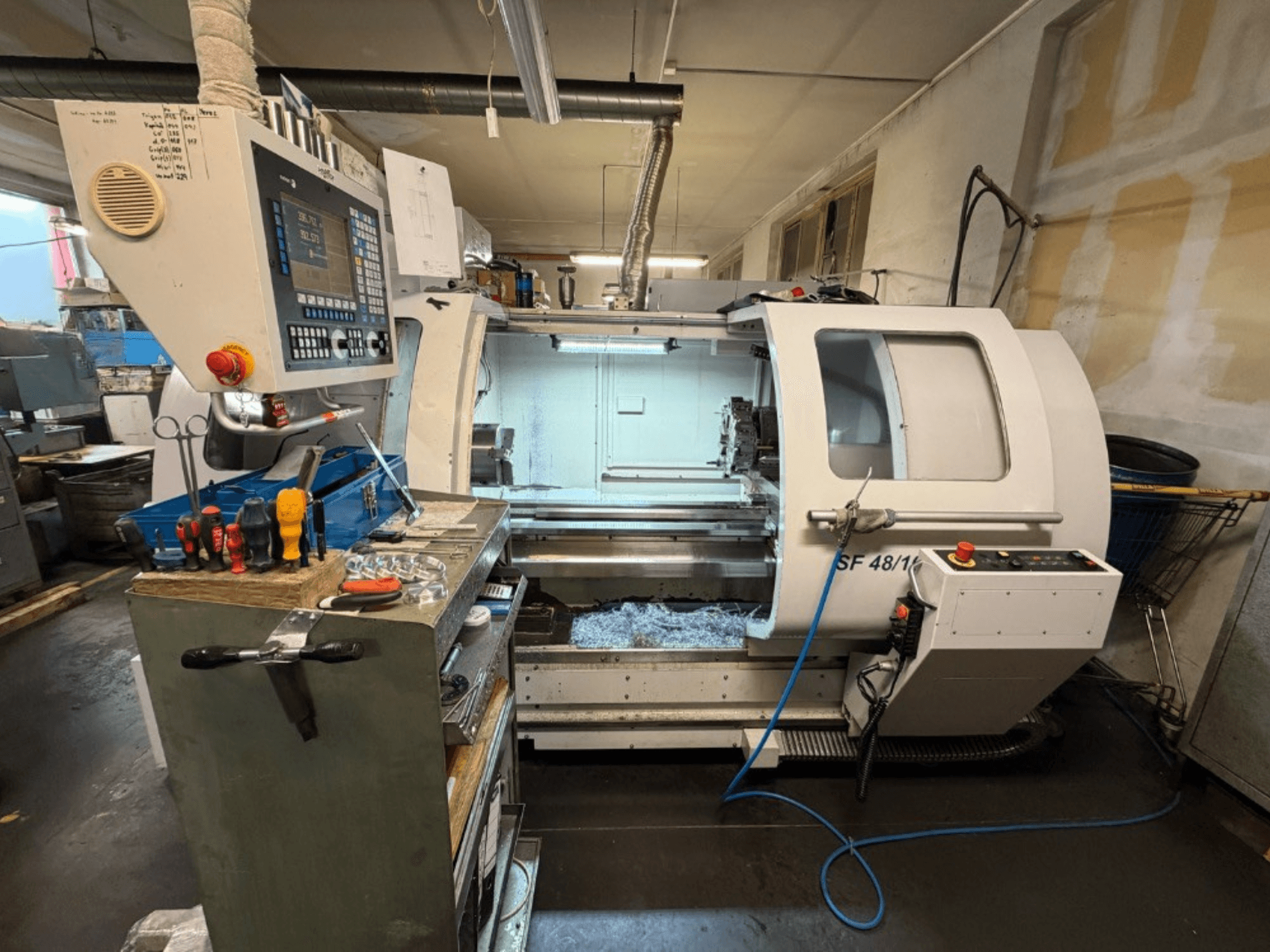

Horizontal turning machine manufactured in 2000. This MICROCUT SF 48/1000 features a maximum turning length of 1000 mm and a swing diameter over the slide of 240 mm. It includes a turret head with 8 tool positions and operates with a spindle speed of up to 4500 rpm. If you are looking to get high-quality turning capabilities, consider the MICROCUT SF 48/1000 machine we have for sale. Contact us for further details.

Overview

brand: MICROCUT
year: 2000
MODEL: SF 48/1000
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
control unit brand: FAGOR

Technical Information - MICROCUT SF 48/1000

Control Unit

Control Brand: FAGOR

Dimensions

Machine Weight: 3000 kg

Movement

Number of Axes: 2
X-axis Travel: 250 mm
Z-axis Travel: 1000 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Speed: 4500 RPM

Additional Information

Swing diameter over the slide: 240
Maximum turning length: 1000
Spindle: D1-6
Spindle passage: 65 mm
Turret head with 8 tool positions
Tool cross-section: 25 x 25 mm
CNC: Fagor 8055 TC
Automatic lubrication
Dimensions: 3030 x 1935 x 2022 mm
Condition: Lathe under power, in operation, and regularly maintained

Additional equipment

Multifix (quick-change tool post)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
