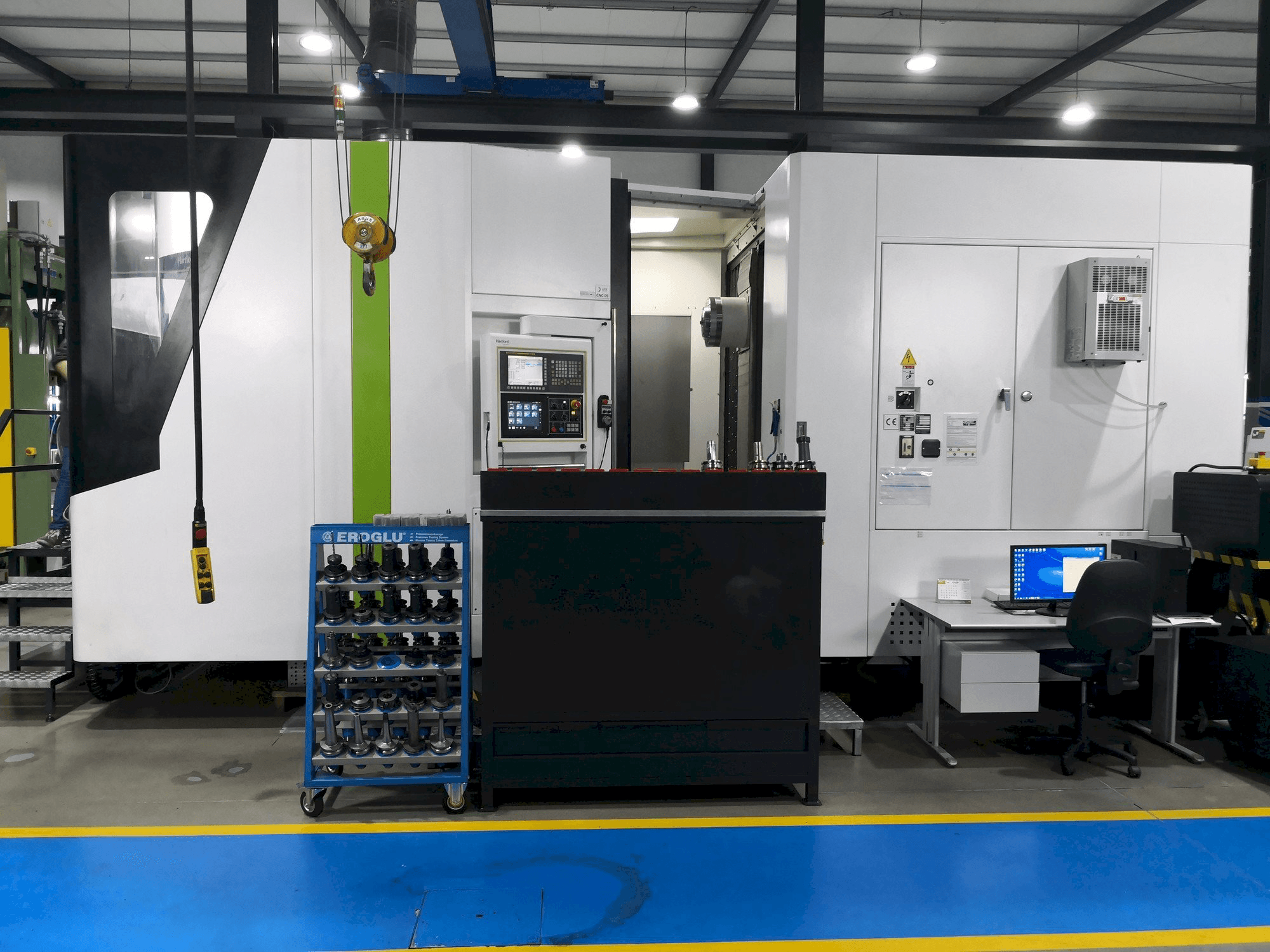

Hartford HMC-10 Horizontal Machining Center

Show in original language

This Hartford HMC-10 Horizontal Machining Center was built in 2017 in Taiwan and has been working for only 4000 hours. Equipped with a FANUC Hartol Expert 3 Control unit, this machine can operate with a spindle speed range up to 10000 rpm. 10 cones for tool clamping, and auxiliary benches are included as additional equipment.

Overview

brand: HARTFORD
year: 2017
MODEL: HMC-10
production hours: 4000
application type: Milling
Location: Portugal
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - HARTFORD HMC-10

General Data

Measurements width: 8000 mm
Measurements depth: 4500 mm
Measurements height: 3500 mm
Machine weight: 27000 kg

Control Unit

Model: Hartol Expert 3
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 1300 mm
Y-AXIS Movement: 1150 mm

Workpiece

Workpiece weight: 2000 kg

Table

Outer length: 1000 mm
Outer width: 1000 mm

Tools

Max weight: 25 kg
Max tool diameter: 125 mm
Max tool length: 600 mm

Media

Main electronic connection: 230 V
Power consumption: 60 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- 15 tools

Additional Information

Machine history

Material type: Steel
End product: Moulds
Industries: Automotive

Machine Benefits

Technical Machine Benefits:
- - Internal cooling
- - When changing pallets / tables the differences are never greater than 0. 02mm. In most cases the difference is zero
- - The compensation of the table / tool is done automatically. It is mandatory to have a controlled environment to be successful.
- - 10 cones for tool clamping
- - Auxiliary benches

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
