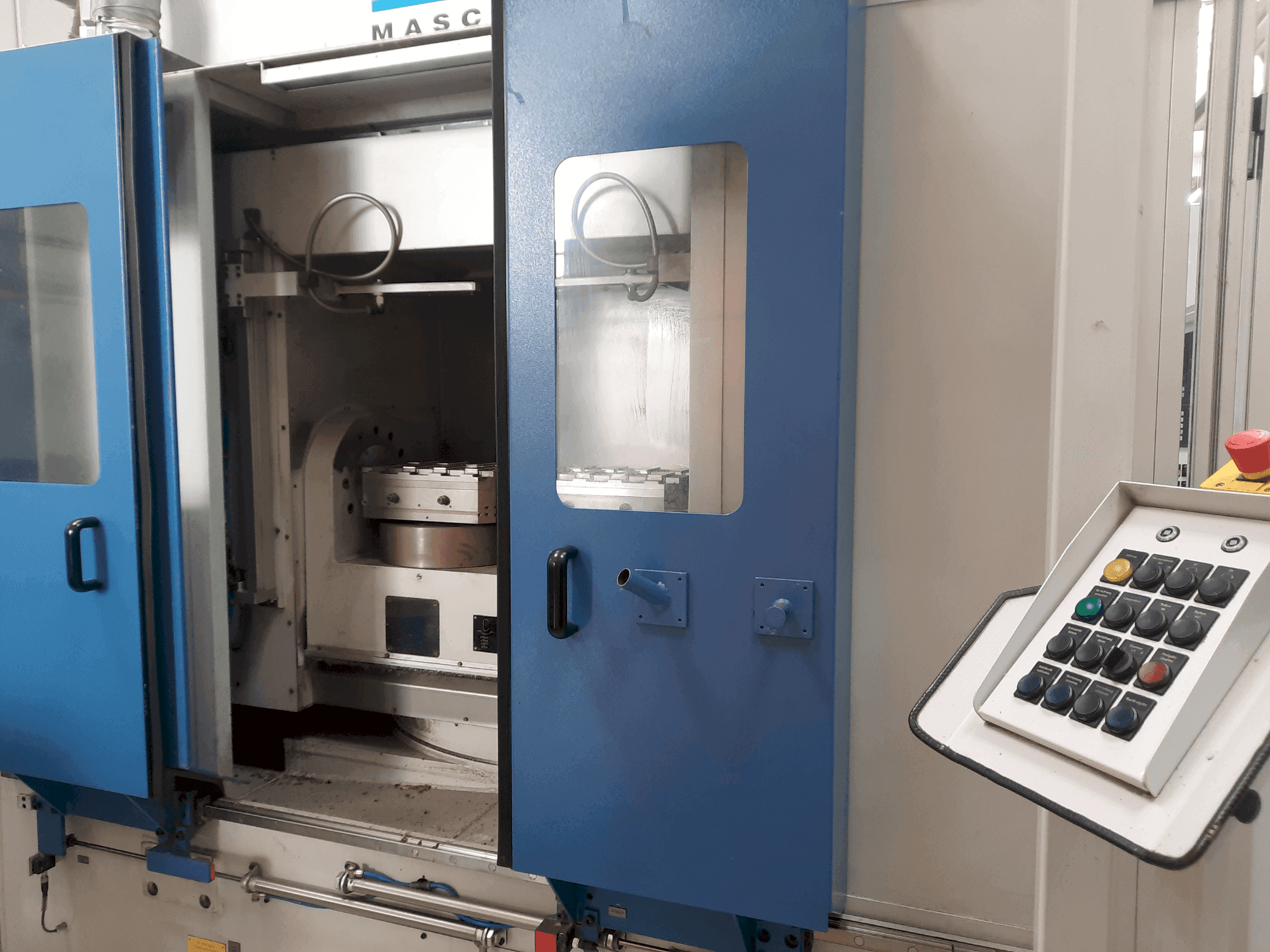

This 5-axis SCHMID SE 371 horizontal machining centre was manufactured in 2019. It features a Siemens Sinumerik 840 D SL control system, a shuttle table, and a 30-position tool changer with HSK-A63 tool holders. Additional highlights include a chip conveyor by Knoll and a recooling system by Lahntechnik. A great opportunity to buy this SCHMID SE 371 horizontal machining centre. Contact us for further details regarding this horizontal machining centre.
Overview
- brand: SCHMID
- year: 2019
- MODEL: SE 371
- production hours: 5936
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- availability: Immediately
- control unit brand: Siemens
Technical Information - SCHMID SE 371
General Data
- Machine weight: 10000 kg
Control Unit
- Brand: Siemens
- Model: Sinumerik 840 D SL
Main drive
- Spindle speed range: 50 - 10000 rpm 1/MIN
- Tool taper: HSK-A63
- Number of axis: 5
Movement
- X-AXIS Movement: 715 mm
- X-AXIS Rapid traverse: 50000 mm/min
- Y-AXIS Movement: 400 mm
- Y-AXIS Rapid traverse: 50000 mm/min
- Z-AXIS Movement: 500 mm
- Z-AXIS Rapid traverse: 50000 mm/min
Turret
- Number of turrets: 1
Tools
- Number of index: 30
- Max weight: 8 kg
- Max tool diameter: 80 mm/ 125 mm with free secondary positions
- Max tool length: 245 mm
Media
- Chip conveyor: Yes
Additional equipment
- - Shuttle table
- - 2x NC rotary swivelling unit
- - Chip conveyor Knoll 600K-1/II 2019
- - Filter system
- - Recooling system Lahntechnik KOF1803-100 2020
- - Hydraulic unit
- - Switch and control cabinets
- - Rotary table rotation axes NC/hydr. clamping : 360 x n° degrees
- - Rotary table diameter : 284 mm,
Additional Information
- Technical Machine Benefits:
- - Swivelling range: -22/+95°
- - Traverse range x - y - z : 715 - 400 - 500 mm
- - Three-phase main drive : 20/26 kw at s1 100% / s6 40% ed
- - Key performance data working spindle kw / s1 / s6 : 0. 5/0. 7 10/14 20/26 20/26
- - Spindle speeds approx. 1/min : 50 1,000 1,850 10,000
- - Torque approx. Nm s1/s6 : 100/135 100/135 100/135 24/31
- - Acceleration x - y - z : 4-6-9 m/sec2
- - Tool change time : approx. 2. 5 sec.
- - Horizontal swivelling range nc/hydr. Clamping : - 22° / + 95° degrees
- - Centre distance of the rotary axes / chuck : 430 mm
- Qualitative Machine Benefits:
- - Digital inverter system
- - Space requirement incl. Operation : approx. 3. 5 x 5 m2
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
