Starrag Heckert - HEC 400 D DE-MIL-STA-2012-00001

Name: Starrag Heckert HEC 400 D
Brand: Starrag Heckert
SKU: DE-MIL-STA-2012-00001
Price: 15705393 INR
Availability: InStock

Rs. 15,705,393

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Starrag Heckert HEC 400 D For Sale | gindumac.com

Show in original language

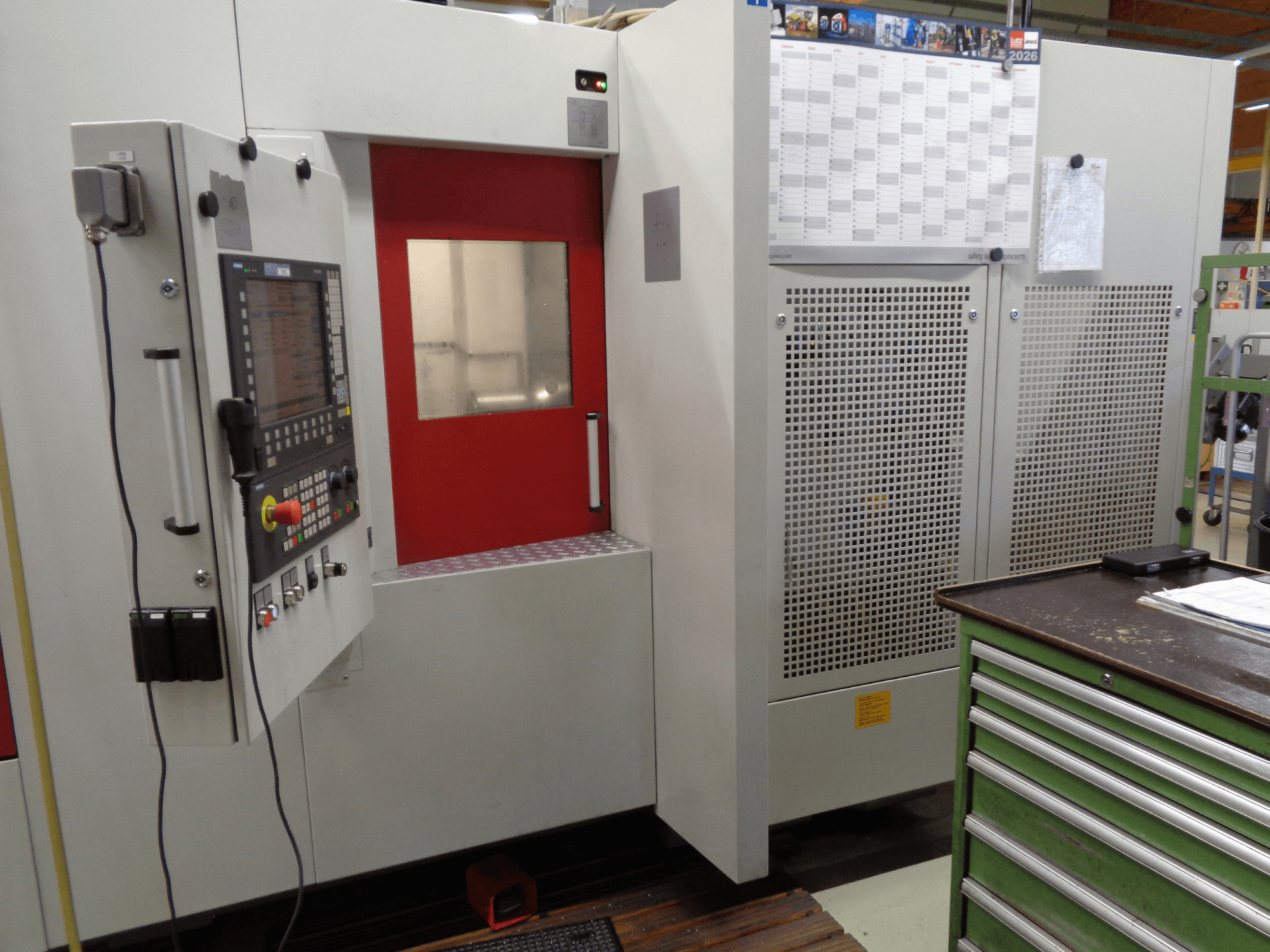

This 4-axis Starrag Heckert HEC 400 D was manufactured in 2012. It features a maximum spindle speed of 12,000 rpm and a tool magazine capacity of 80 tools, allowing for efficient machining operations. The machine includes two workpiece pallets with a size of 400 × 500 mm. If you are looking to get high-quality machining capabilities, consider the Starrag Heckert HEC 400 D horizontal machining centre we have for sale. Contact us for further details.

Overview

brand: Starrag Heckert
year: 2012
MODEL: HEC 400 D
production hours: 41150
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
Available from: 01/12/2026
control unit brand: SIEMENS

Technical Information - Starrag Heckert HEC 400 D

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840D sl

Dimensions

Machine Weight: 10000 kg

Movement

Number of Axes: 4
X-axis Travel: 650 mm

Technical Specification

Spindle Power: 33.5 kW
Spindle Speed: 12000 RPM
Taper Size: SK 40
Tool Stations: 80

Additional Information

Temperature range: 5–35 °C
Operating hours: 41,150 hours
Spindle hours: 1163 hours
NCU type: NCU 710.2
NC software version: V02.07.01.06
MMC software: 07.06.02.02
Standard software cycles: 07.05.11
Tool magazine type: Chain magazine
Workpiece pallets: 2
Pallet size: 400 × 500 mm
Spindle torque: 200 Nm
Coolant pressure (option): up to 80 bar
Coolant tank capacity: 1350 l
Coolant flow (swivel shower): approx. 70 l/min
Axis measurement system: Heidenhain LC483
Rotary axis measurement: Heidenhain RCN226
Position frequency analysis X-axis: 29 Hz
Position frequency analysis Y-axis: 54 Hz
Position frequency analysis Z-axis: 52 Hz
Spindle + motor replaced: July 2025

Additional equipment

Vapour extractor: AFS 600

spindle and motor replaced in July 2025

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
