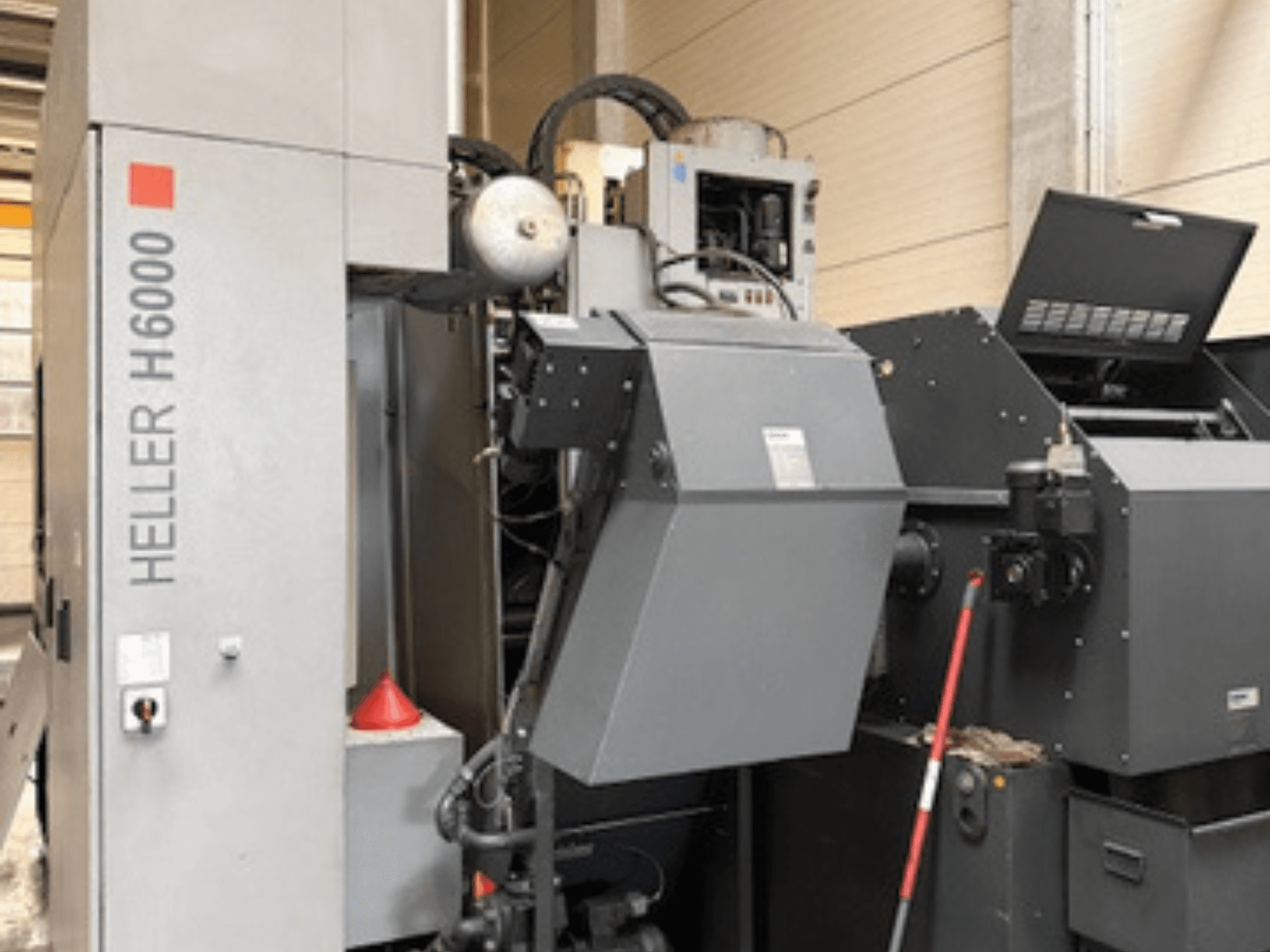

HELLER - H6000DE-MIL-HEL-2011-00005

- Operating Hours (Betriebsstunden): 77,128 h

- Effective Operating Time (Nutzlaufzeit): 57,997 h

- Control Unit: SIEMENS 840D solution line

- X-Axis Travel: 1,000 mm

- Y-Axis Travel: 1,000 mm

- Z-Axis Travel: 1,000 mm

- Rapid Traverse Speed: 50,000 mm/min

- Feed Speed: 1 - 50,000 mm/min

- Acceleration: 5 m/s²

- Max. Permissible Clamping Mass: 1,000 kg (1,400 kg)

- Pallet Changing Time: 13 s

- Pallet Changer: 2 pallet slots

- Pallet Size: 630 x 630 mm (2 units in basic machine + 1 additional pallet)

- Workpiece Diameter: 900 mm (1,290 mm)

- Workpiece Height: 1,200 mm

- Work Unit: PC 100 PowerCutting

- Speed Range: 8,000 rpm

- Max. Drive Power (S6-40%): 43 kW

- Max. Torque (S6-40%): 822 Nm

- Workpiece Table: NC Rotary Table, indexing 360,000 x 0.001°

- Workpiece Setup Station: Manually rotatable pallet 4 x 90°

- Workpiece Clamping: Mechanical (includes 5-fold media interface, hydraulic pressure 60 bar)

- Tool Taper: HSK 100 A (DIN 69 893)

- Tool Magazine: Chain magazine with 50 slots

- Max. Tool Diameter (all slots occupied): 112 mm

- Max. Tool Diameter (adjacent free slots): 280 mm

- Max. Tool Length: 600 mm

- Min. Chip-to-Chip Time (t2,3 according to VDI 2852): 4.2 s

- Coolant & Chip Management: KNOLL scraper belt chip conveyor for wet machining, KNOLL KF 400 paper band filter coolant cleaning system (70 bar internal coolant supply / IKZ), work area flushing, drip tray drawing, window blow-off device

- Tool Monitoring & Accessories: Fast drill breakage control, chain magazine tool shank cleaning device, process-integrated tool monitoring + collision protection monitoring, portable handwheel unit (Bedienhandgerät) with interface

- Electrical Parameters: 400 V, 50 Hz, Nominal Current 87 A
