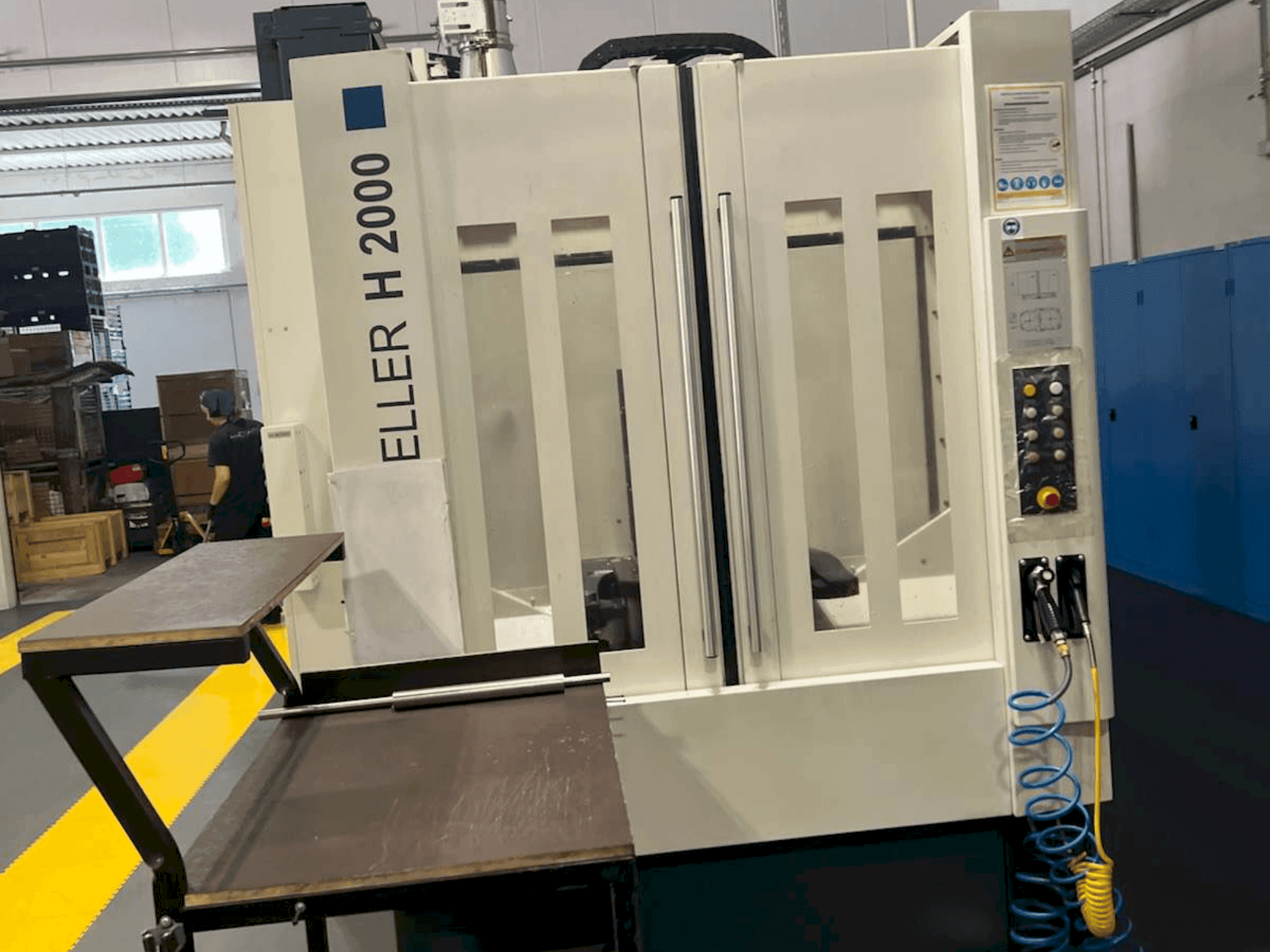

Front view of HELLER H2000 machine
Front view of HELLER H2000 machine

HELLER - H2000SI-MIL-HEL-2017-00001

Rs. 24,929,000
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis HELLER H2000 horizontal machining center was manufactured in 2017. It features a Siemens 840D Solution Line control, rapid traverse of 60,000 mm/min, and a spindle speed of 10,000 rpm. The machine can handle workpieces up to 720 mm in diameter and 850 mm in height, with a maximum table load of 600 kg. Consider the opportunity to buy this HELLER H2000 horizontal machining center. Contact us for more information about this machine.

Overview

  • brand: HELLER
  • year: 2017
  • MODEL: H2000
  • application type: Milling
  • Location: Slovenia
  • machine type: Horizontal Machining Centre
  • control unit brand: SIEMENS

Technical Information - HELLER H2000

Control Unit

  • Brand: SIEMENS
  • Model: 840D Solution line

Main drive

  • Number of axis: 4

Movement

  • X-AXIS Movement: 630 mm
  • X-AXIS Rapid traverse: 60000 mm/min
  • Y-AXIS Movement: 630 mm
  • Y-AXIS Rapid traverse: 60000 mm/min
  • Z-AXIS Movement: 630 mm
  • Z-AXIS Rapid traverse: 60000 mm/min

Table

  • Table load: 600 kg

Tools

  • Type of tool holder: HSK 63 A

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Chip conveyor
    • - Coolant filtration with paper filter KF 400
    • - Through-spindle coolant, 50 bar
    • - Work area flushing

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Acceleration: 8 m/s²
        • - Standard color: grey-white / sand grey / ultramarine blue
        • - Max. Workpiece diameter: 720 mm
        • - Max. Workpiece height: 850 mm
        • - Nc rotary table, indexing 360000 × 0. 001°
        • - Clamping station, manually operated pallet, 4 × 90°
        • - 2 pallets, 400 × 500 mm
        • - Tool magazine positions: 54

      Extra information

      • - Operating mode: Mode 3 Electrical: 50 Hz, 400 V Hydraulic interface for tool clamping, 5-fold, 60 bar Additional hydraulic control line Hydraulic connection kit with couplings (2 units) Nosepiece for multi-spindle head Infrared receiver for RENISHAW probe RENISHAW probe Drill breakage detection system Signal tower (red-yellow-green) Technology cycles package Additional operating panel at tool magazine

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
