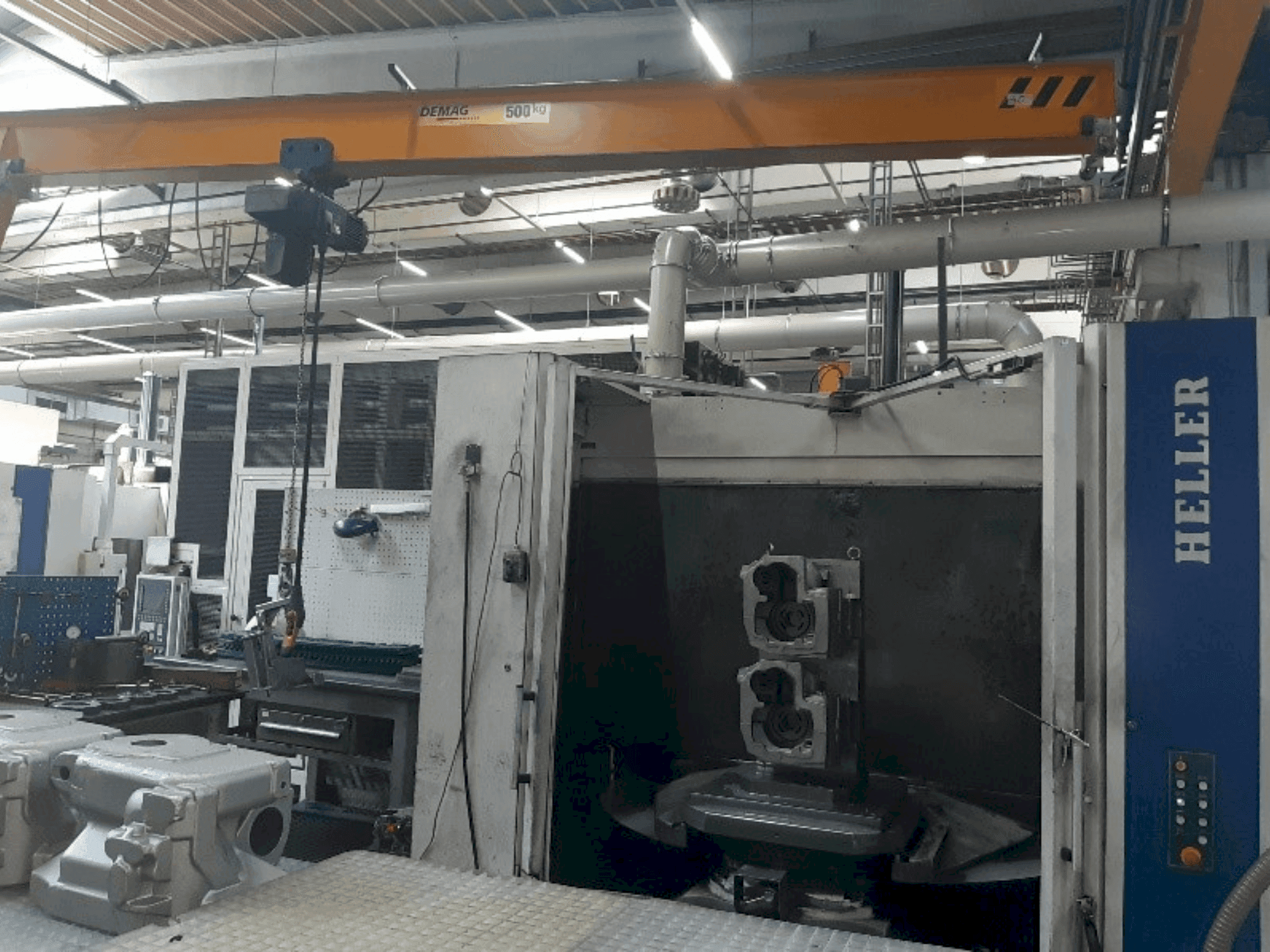

Front view of HELLER MCH 350  machine

HELLER - MCH 350DE-MIL-HEL-2006-00002

Rs. 12,479,300
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis HELLER MCH 350 was manufactured in 2006, featuring a Siemens 840D PL control system and a robust spindle capable of 7,000 rpm. It includes a HSK 100 tool clamping system and a large magazine with 234 slots. The machine offers a substantial working area of 1250 x 1000 x 1000 mm and a pallet size of 800 x 800 mm. For more information about this machining centre, please reach out to us.

Overview

  • brand: HELLER
  • year: 2006
  • MODEL: MCH 350
  • production hours: 48659
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - HELLER MCH 350

Control Unit

  • Model: 840D PL
  • Brand: SIEMENS

Main drive

  • Number of spindles: 1
  • Spindle speed range: 7000 rpm 1/MIN
  • Spindle motor power: 43 kW
  • Tool taper: HSK 100
  • Number of axis: 4

Movement

  • X-AXIS Movement: 1250 mm
  • Y-AXIS Movement: 1000 mm
  • Z-AXIS Movement: 1000 mm

Table

  • Outer length: 800 mm
  • Outer width: 800 mm
  • Number of tslots: 234

Media

  • Internal cooling: Yes

    Additional equipment

    • - KNOLL Coolant System, VRF 250, IKZ 50 bar
    • - Rotary table with 360,000° x 0.001° positioning
    • - Infrared receiver for measuring probe (BLUM)
    • - Multi-spindle head mount
    • - Quick drill breakage control (SBBK)
    • - Code chip for tools runtime and quantity recording
    • - Integrated process monitoring (IPM)
    • - Disk blowing device for operator door
    • - Evacuation strategy

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Internal cooling: yes, 50 bar
        • - Control panel at tool insertion point with terminal
        • - Workpiece clamping: mechanical
        • - High spindle power and torque for heavy-duty machining
        • - Advanced rotary table for precise multi-axis positioning
      • Qualitative Machine Benefits:
        • - Comprehensive tool management and monitoring systems enhance precision and efficiency
        • - Robust cooling and safety features ensure optimal operation and worker safety

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
