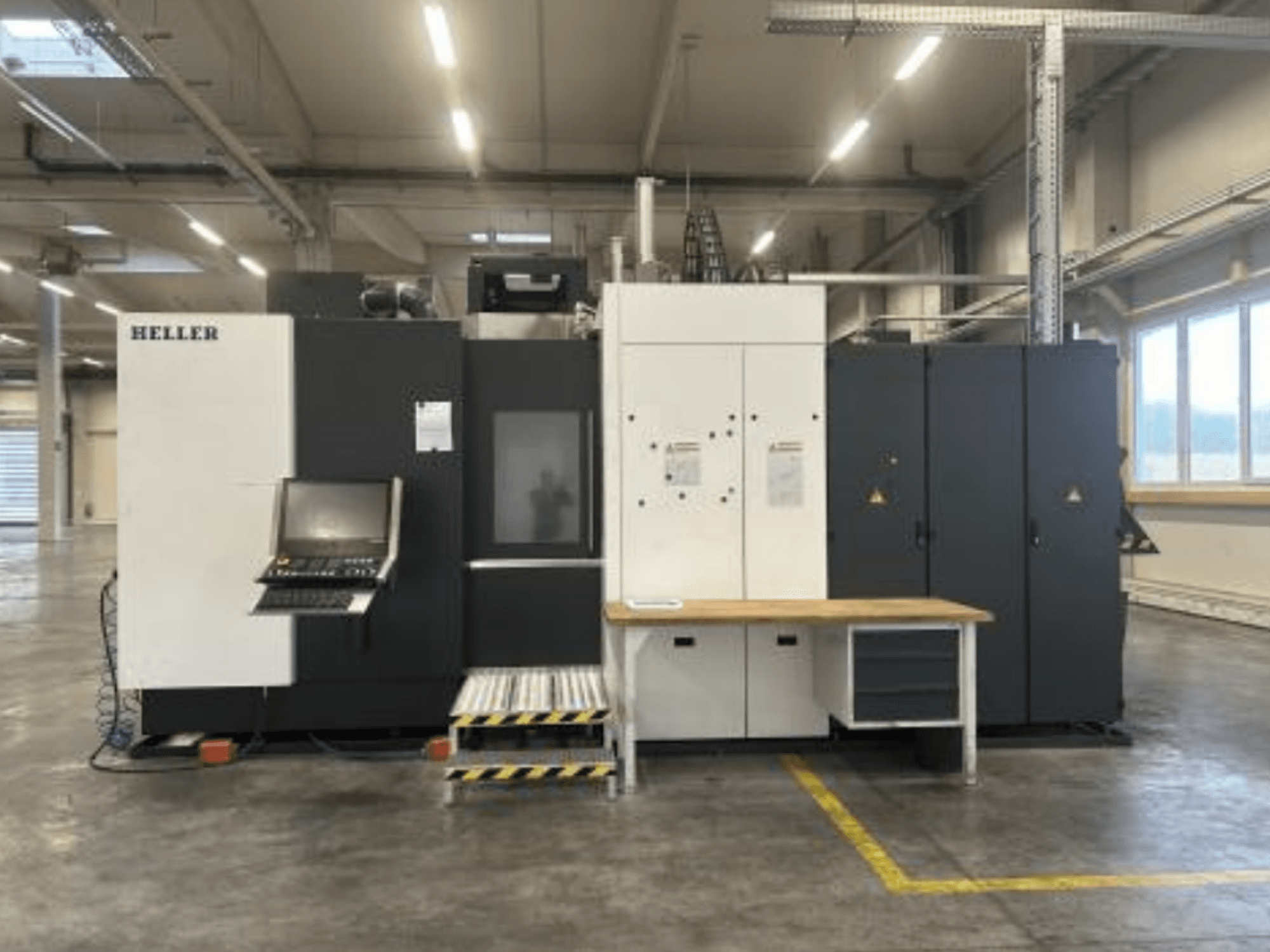

HELLER - H5000AT-MIL-HEL-2021-00001

- Machine Count: 2 units

- B-Axis (NC Rotary Table) Resolution / Indexing: 360,000 x 0.001 deg

- B-Axis (NC Rotary Table) Speed: 25 rpm

- B-Axis Indexing Accuracy Tp (VDI/DGQ 3441 / ISO 230 At): 8 arcsec

- B-Axis Max. Tangential Moment: 12,000 Nm

- B-Axis Max. Tilting Moment: 18,000 Nm

- Voltage / Frequency: 3~ 400 V / 50 Hz

- Nominal Current: 65 A

- Short Circuit Current Rating: 9 kA

- Feed Force X- and Y-Axis (ED S3 -40%): 15,000 N

- Feed Force Z-Axis (ED S3 -40%): 20,000 N

- Rapid Traverse (POWER Package X/Y/Z): 50 m/min

- Acceleration (POWER Package X/Y/Z): 5 m/s²

- Rapid Traverse (SPEED Package X/Y/Z): 65 / 65 / 72 m/min

- Acceleration (SPEED Package X/Y/Z): 7 / 7 / 11 m/s²

- Linear Axis Positioning Tolerance (Tp): 0.005 mm

- Tool Taper: HSK-A 100 / SK 50

- Speed Range: 5 - 8,000 rpm (Power Cutting 100 G / Power Cutting enforced 100 G) / 5 - 6,000 rpm (High Power Cutting 100 G) / 5 - 13,000 rpm (Speed Cutting 100 i) / 5 - 10,000 rpm (Power Cutting 100 i) / 5 - 12,000 rpm (Dynamic Cutting 100 i)

- Drive Power (ED S6-40%): 43 kW / 45 kW / 60 kW

- Max. Torque (ED S6-40%): 228 Nm / 360 Nm / 400 Nm / 822 Nm / 1,146 Nm / 2,292 Nm

- Front Bearing Spindle Diameter: 100 mm / 110 mm

- Max. Permissible Tool Mass: 25 kg (8 kg if every location occupied, 35 kg option)

- Tool Chain Magazine Slots: 50 / 100 / 150

- Tool Rack Magazine Slots: 265 / 425

- Max. Tool Length: 600 mm

- Max. Tool Diameter: 112 mm (all locations occupied) / 280 mm (with free locations)

- Pallet Dimensions: 630 x 630 mm

- Max. Workpiece Diameter: 900 mm

- Max. Workpiece Height: 1,000 mm

- Max. Clamping Mass (Pallet 1): 1,000 kg (single-sided) / 1,400 kg (double-sided)

- Pallet Change Time (without hydraulic clamping): 13 s

- Pallet Change Time (with hydraulic clamping): 13.5 s

- Coolant System Option PBF: Paper band filter Interlit TMF 600, 40 µm nominal fineness, 1,800 L tank capacity, 50 bar / 70 bar high-pressure coolant (IKZ) option

- Coolant System Option VRF: Backwash filter KNOLL VRF 250, 40 µm nominal fineness, 1,200 L tank capacity, 50 bar / 70 bar high-pressure coolant (IKZ) option

- Machine Floor Footprint (L x W x H with coolant & conveyor): 7.30 x 3.38 x 3.90 m

- Total Operating Power (Machine without coolant system): approx. 37 kVA

- Compressed Air Supply Pressure: 5 - 6 bar

- Permissible Ambient Temperature: 10 - 45 °C

- Material Processed: Aluminum (exclusively)

- Estimated Operating Hours: approx. 12,000–15,000 hours (pending confirmation)

- Operational Status: Currently installed/in place and powered on
