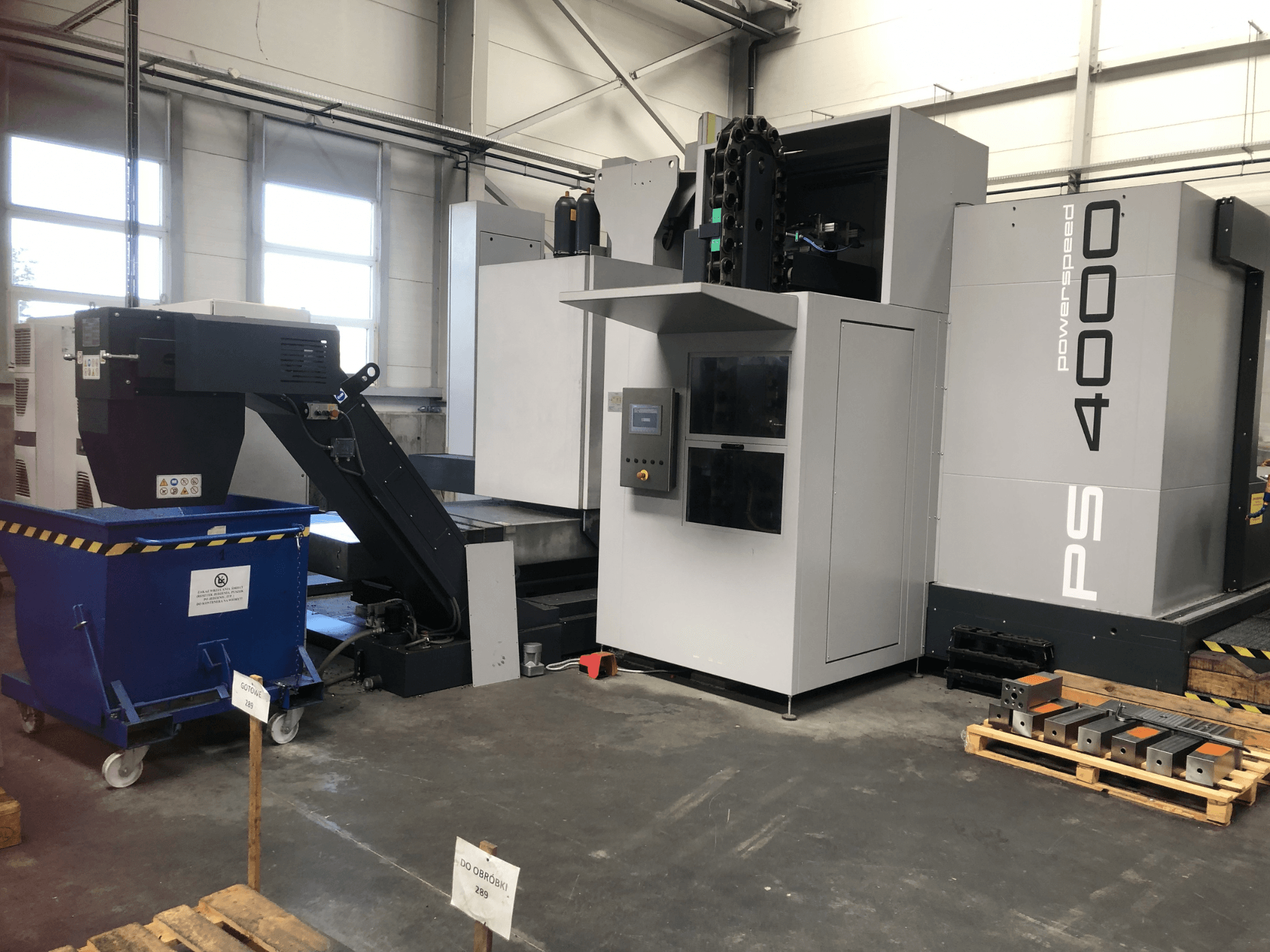

This 5-axis SHW PowerSpeed 4000 CNC horizontal machining center was manufactured in 2022. It features an impressive X-axis travel of 1,500 mm, Y-axis travel of 1,000 mm, and Z-axis travel of 750 mm. The machine includes a rotary table with a diameter of 1,400 mm and a maximum table load of 4,000 kg. If you are looking to get high-quality machining capabilities, consider the SHW PowerSpeed 4000 machine we have for sale. Contact us for further details.
Overview
- brand: SHW
- year: 2022
- MODEL: PowerSpeed 4000
- application type: Milling
- Location: Poland
- machine type: Horizontal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - SHW PowerSpeed 4000
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 355
Dimensions
- Table Load: 4000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 1500 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 750 mm
Technical Specification
- Spindle Power: 20 kW
- Spindle Speed: 1800 RPM
- Taper Size: ISO 50
Additional Information
Bosch Servodyn servo drives; individual AC drives on X/Y/Z
Status / Condition: Machine connected and operational; very good technical condition; regularly maintained; available for inspection under power
Documentation: Complete technical, electrical, programming, transport and maintenance manuals; large documentation package included
W (quill) 115 mm
Rotary table: RT 5D, Ø 1,400 mm; controlled axes X, Y, Z, W, B (table); 7 T-slots + center slot; T-slot 22 mm (DIN 650); spacing 160 mm; center bore Ø 100 H6; max speed 2.5 rpm; table weight ~2,800 kg
Spindle: 95 mm front bearing diameter; horizontal and vertical milling spindle capability
Feed rates: Infinitely variable; 2–8,000 mm/min; rapid 8,000 mm/min
Tool clamping force: Horizontal 16,000 N; Vertical 10,000 N
Machine configuration and features: Horizontal machining center with automatic indexing rotary table; full enclosure; automatic lubrication system; Bosch Servodyn drive package; Heidenhain CNC control; large electrical cabinet with climate-controlled cooling units
Main capacities (summary): W 115 mm; rotary table Ø 1,400 mm
Additional equipment
Vertical milling head (attachment)
Tool holders (as visible in photos)
Tool trolley (as visible in photos)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
