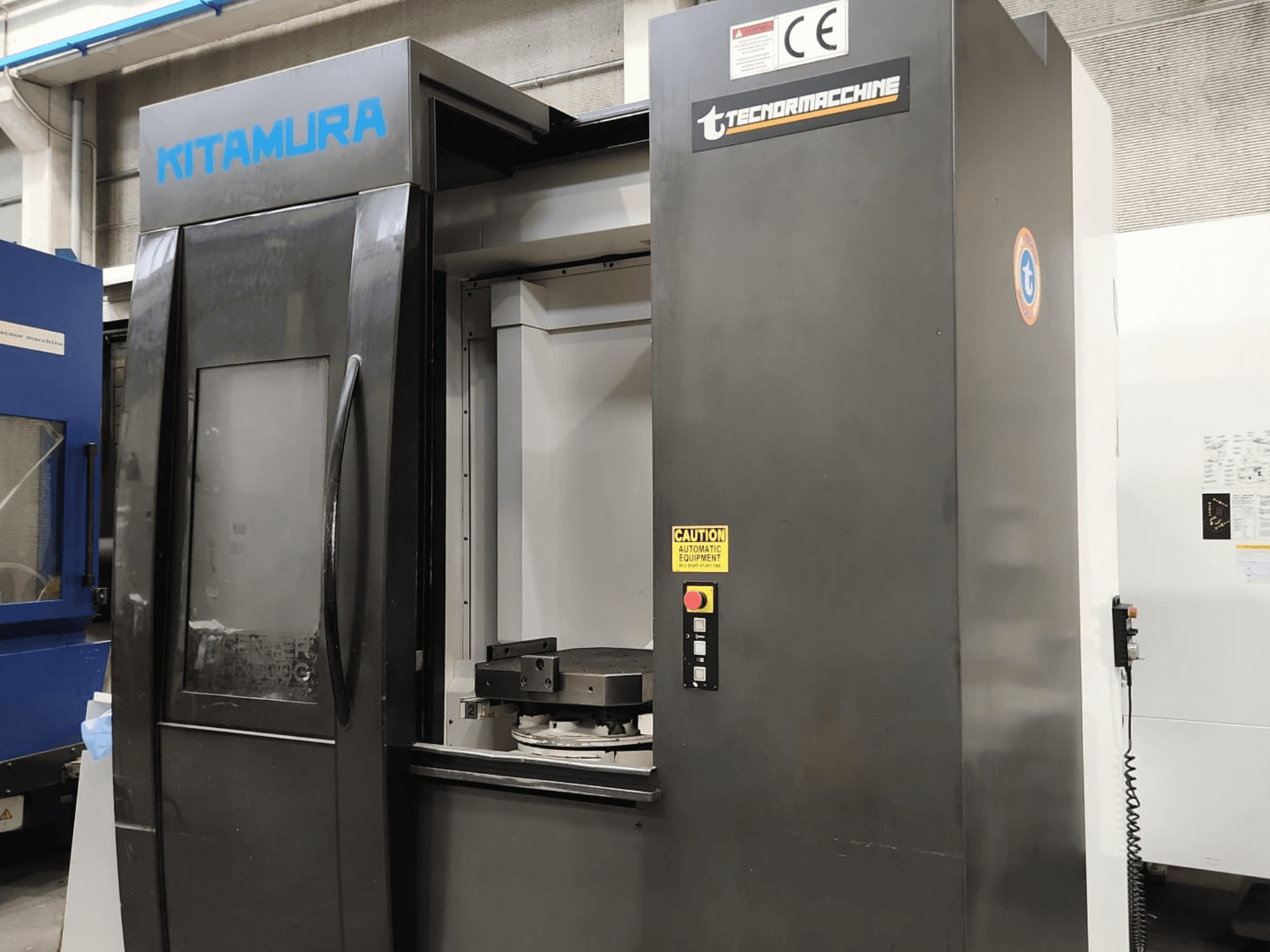

This 4-axis Kitamura Mycenter HX500iG was manufactured in 2015. It features a maximum workpiece diameter of 800 mm and a maximum workpiece height of 1,100 mm. The machine includes a robust pallet size of 500 x 500 mm and a maximum table load of 800 kg. If you are looking to get high-quality machining capabilities, consider the Kitamura Mycenter HX500iG horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: Kitamura
- year: 2015
- MODEL: Mycenter HX500iG
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
Technical Information - Kitamura Mycenter HX500iG
Dimensions
- Machine Height: 1178 mm
- Machine Length: 4957 mm
- Machine Weight: 16100 kg
- Machine Width: 3585 mm
- Table Load: 800 kg
Movement
- Number of Axes: 4
- X-axis Travel: 870 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 930 mm
Technical Specification
- Max. Tool Weight: 10 kg
- Spindle Power: 22 kW
- Spindle Speed: 20000 RPM
- Taper Size: BT 40
Additional Information
CNC controller: Arumatik-Mi
Pallet size: 500 x 500 mm (19.7" x 19.7")
Number of pallets: 2
Pallet change time: 8.8 s
Max. workpiece diameter: Ø 800 mm (Ø 31.5")
Max. workpiece height: 1,100 mm (43.3")
B-axis travel: 0–360° (full 4th axis, DD motor driven)
B-axis rapid feed: 43,200 deg/min (120 rpm)
Table surface to spindle center: 50–850 mm (2.0"–33.5")
Table center to spindle nose: 140–1,070 mm (5.5"–42.1")
Drive method: Gear drive, 4-step
Max. spindle torque: 266.4 N·m (196.5 ft-lbs)
Spindle motor: 22 kW (30 HP AC / 15 min) / 15 kW (20 HP AC / continuous)
Rapid feedrate (X/Y/Z): 60 m/min (2,362 ipm)
Cutting feedrate (X/Y/Z): 60 m/min (2,362 ipm)
Tool storage capacity: 50 tools (fixed pot, random bidirectional)
Tool holder style: CT(BT) 40 / HSK-A63 optional
Max. tool diameter: Ø 95 mm (3.7") / Ø 170 mm (6.7") with adjacent pot empty
Max. tool length: 600 mm (23.6")
Tool-to-tool change time: 1.3 s
Chip-to-chip change time: 3.8 s minimum
Linear scales: Fine-resolution optical feedback on X/Y/Z
Rotary scale: Direct high-resolution (0.02 sec) rotary encoder feedback on B-axis
Thermal displacement control: Intelligent advanced control system
Coolant tank volume: 700 liters
Power requirement: 55 kVA, 200V AC, 3-phase
Air requirement: 0.5 MPa, 410 L/min (90 psi, 14 cfm)
Additional equipment
Through-spindle coolant: High-pressure internal coolant system at 20 bar (RCM 20 bar)
Chip conveyor: Scraping / double-decker type
Work area tool sensor: Renishaw tool presence transmitter/laser inside working area
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
