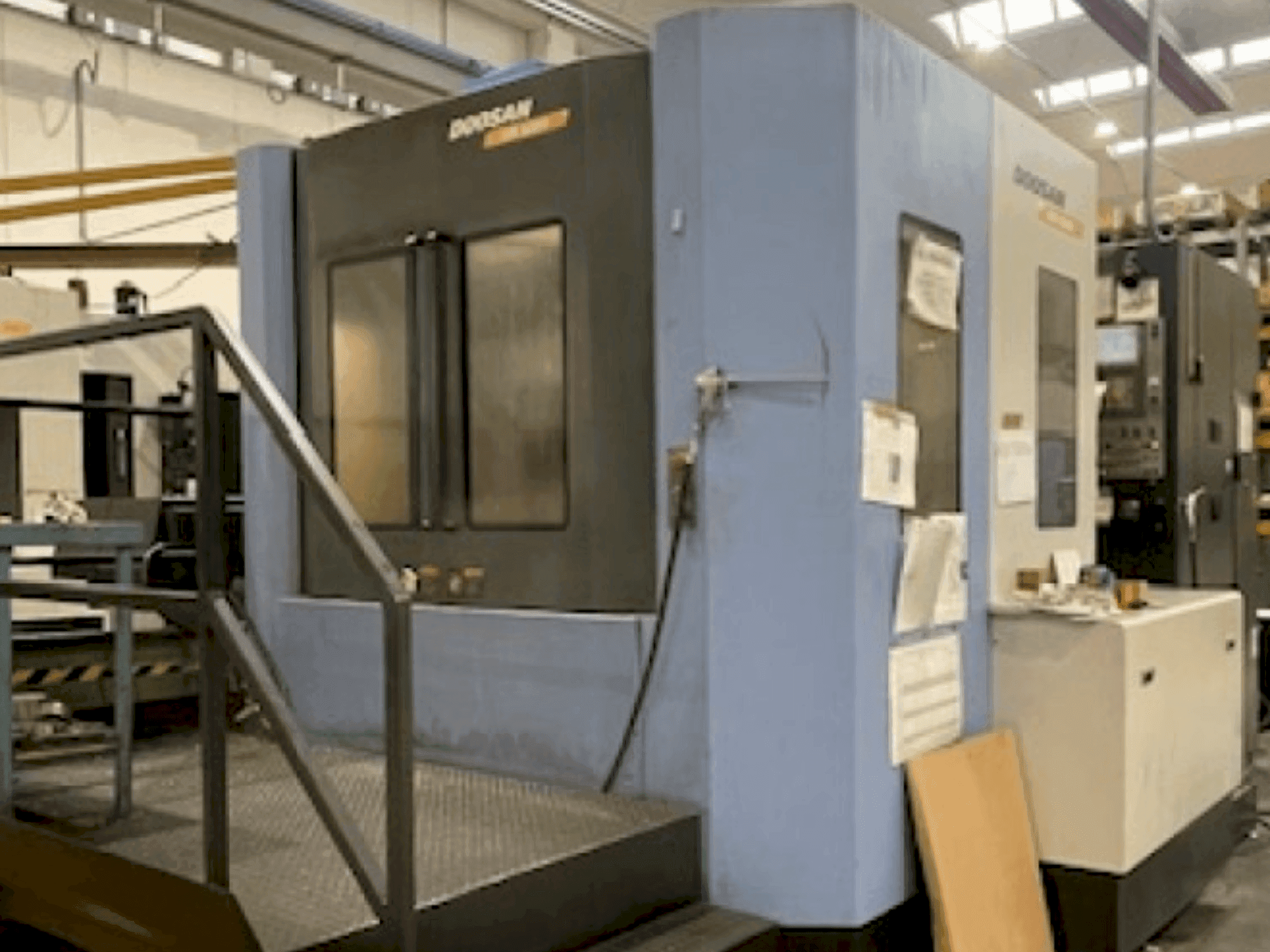

Front view of DOOSAN HM 6300 (2009)  machine

DOOSAN - HM 6300IT-MIL-DOO-2009-00001

Rs. 8,239,000
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

The DOOSAN HM 6300 is a 4-axis horizontal machining centre from 2009 with a CNC FANUC 31i-Mod.A control unit. It offers expansive axis movement: 1000 mm on X, 800 mm on Y, and 850 mm on Z, with rapid 48 m/min travel. The two 630 x 630 mm pallets, with a 1° indexing and 180° rotary change, support 1,200 kg each. The spindle, powered by a 30 kW motor, reaches 6000 rpm, and the 60-position tool chain accommodates various tool sizes. Accessories include a chip conveyor, Renishaw predisposition, and a high-pressure coolant system. Contact us for more details.

Overview

  • brand: DOOSAN
  • year: 2009
  • MODEL: HM 6300
  • application type: Milling
  • Location: Italy
  • machine type: Horizontal Machining Centre
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - DOOSAN HM 6300

General Data

  • Machine weight: 21000 kg

Control Unit

  • Model: 31i–Mod.A
  • Brand: FANUC

Main drive

  • Number of spindles: 1
  • Spindle speed range: 600 1/MIN
  • Spindle motor power: 30 Kw
  • Tool taper: ISO 50 Din 69871
  • Number of axis: 4

Movement

  • X-AXIS Movement: 1000 mm
  • X-AXIS Rapid traverse: 48 m/min
  • Y-AXIS Movement: 800 mm
  • Y-AXIS Rapid traverse: 48 m/min
  • Z-AXIS Movement: 850 mm
  • Z-AXIS Rapid traverse: 48 m/min

Tools

  • Number of index: 60

Media

  • Chip conveyor: Yes

    Additional equipment

    • - 2 Pallets (dimensions 630 x 630 mm, indexing: 1°, change type: 180° rotary, weight allowed on the pallet: 1,200 kg)
    • - Renishaw predisposition
    • - Remote electronic handwheel

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High-speed spindle (6000 rpm) with substantial motor power (30 kw) supports robust machining.
        • - Exceptional rapid traverse rate of 48 m/min on all axes enhances efficiency and reduces cycle times.
      • Qualitative Machine Benefits:
        • - Precision in machining with pallet indexing of 1° and a high-quality tooling system (iso 50 din 69871).
        • - Effective coolant system and renishaw predisposition for improved machining accuracy and setup flexibility.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
