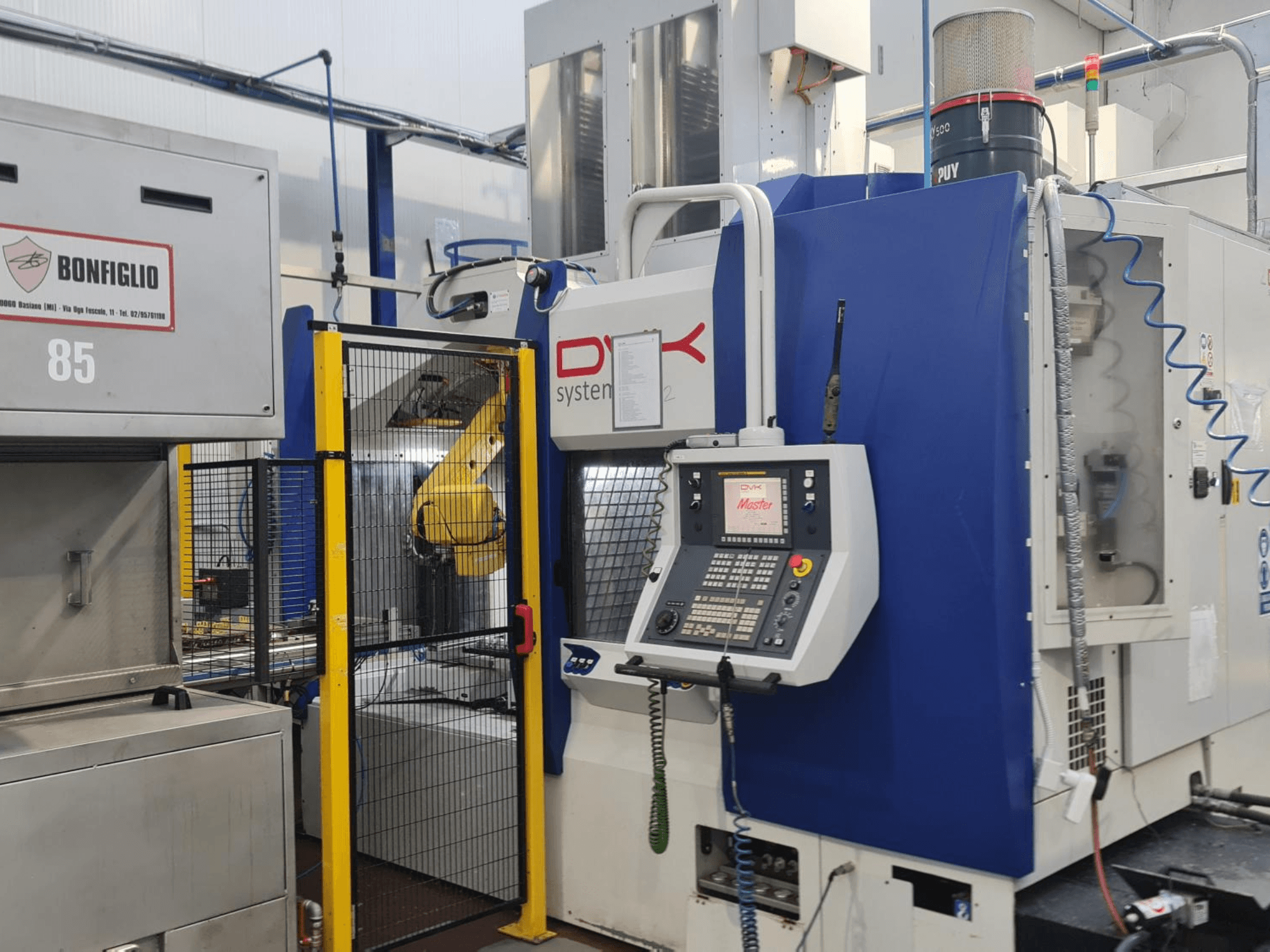

This 5-axis DVK System Master 1 RE was manufactured in 2020. It features a robust working area with X-axis travel of 250 mm, Y-axis travel of 350 mm, and Z-axis travel of 300 mm. The machine is equipped with a powerful 25 kW spindle and an automatic tool changer with a capacity of 32 tools. If you are looking to get high-quality machining capabilities, consider the DVK System Master 1 RE horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: DVK
- year: 2020
- MODEL: System Master
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - DVK System Master
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Weight: 10000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 250 mm
- Y-axis Travel: 350 mm
- Z-axis Travel: 300 mm
Technical Specification
- Spindle Power: 25 kW
- Spindle Speed: 14000 RPM
- Tool Stations: 32
Additional Information
CNC control: FANUC CNC with 10.4" colour operator panel, PLC, Ethernet connectivity, dedicated machine software
CE certified
Working area:
Birotational clamping vise axes: A-axis 360° continuous, B-axis 360° continuous
Spindle:
Type: OMLAT electrospindle
Torque: 80 Nm
Tool interface: HSK-A63
Tool magazine/ATC:
Automatic tool changer
Max tool diameter: 70 mm (150 mm with adjacent pockets free)
Random tool selection
Clamping system:
Self-centering birotational hydraulic vise
Jaw stroke: 50 mm
Clamping force: 5,000–30,000 N
Cooling & lubrication and services:
Liquid-cooled spindle
Centralized automatic grease lubrication
Pneumatic system
Hydraulic system
Air-water heat exchanger
Machine pressurization system
Machine data:
Installed power: 55 kW
Supply voltage: 400 V / 50 Hz
Additional equipment
Robot automation:
FANUC M20iA/20M anthropomorphic robot, 6 axes, 20 kg payload
Schunk PGN125 two-jaw gripper
Pallet system:
Two vertical pallet magazines
Pallet size: 480 × 300 mm
54 pallet positions per magazine (standard)
Chip/coolant and extraction:
Internal coolant through spindle
60 µm cartridge filter
MAHLE self-cleaning 60 µm filter
Rain-type work area washing system
Chip conveyor with drag chain and rotofilter
Coolant chiller
Oil mist extraction system
Measurement, monitoring and accuracy:
Marposs 3D radio probe
Laser tool presetter
Thermal compensation on X, Y and Z axes
Optical scales on X, Y and Z axes
Tool life monitoring
Extended work coordinate system (48 additional offsets)
Artificial vision system with 2 cameras
Clamping enhancement:
Pressure-controlled hydraulic clamping
Included auxiliary equipment:
Bonfiglio MROTOS 8555 4 E LRSA industrial parts washer, robot integrated
Automator ADP5090 dot peen marking system with AC500 controller, robot integrated:
Marking area: 50 × 90 mm
Pneumatic marking head
Connectivity: Ethernet / USB / RS232 / RS485
Touch-screen AC500 controller
Marking speed up to 10 characters/second
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
