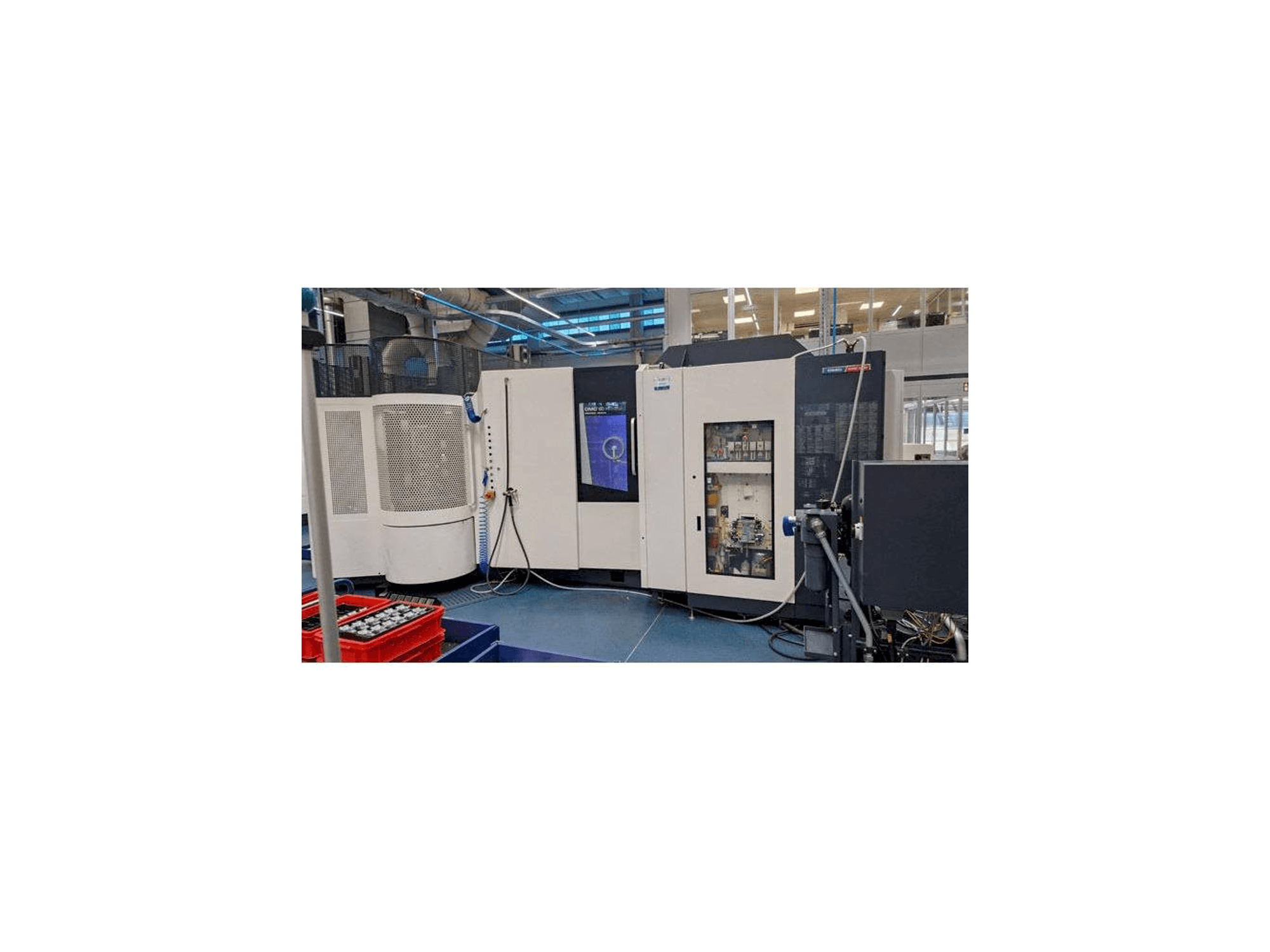

Front view of DMG DECKEL MAHO DMC 60H Linear  machine

DMG DECKEL MAHO DMC 60H Linear

DMG - DECKEL MAHO DMC 60H Linear

2013

Rs. 19,521,650

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

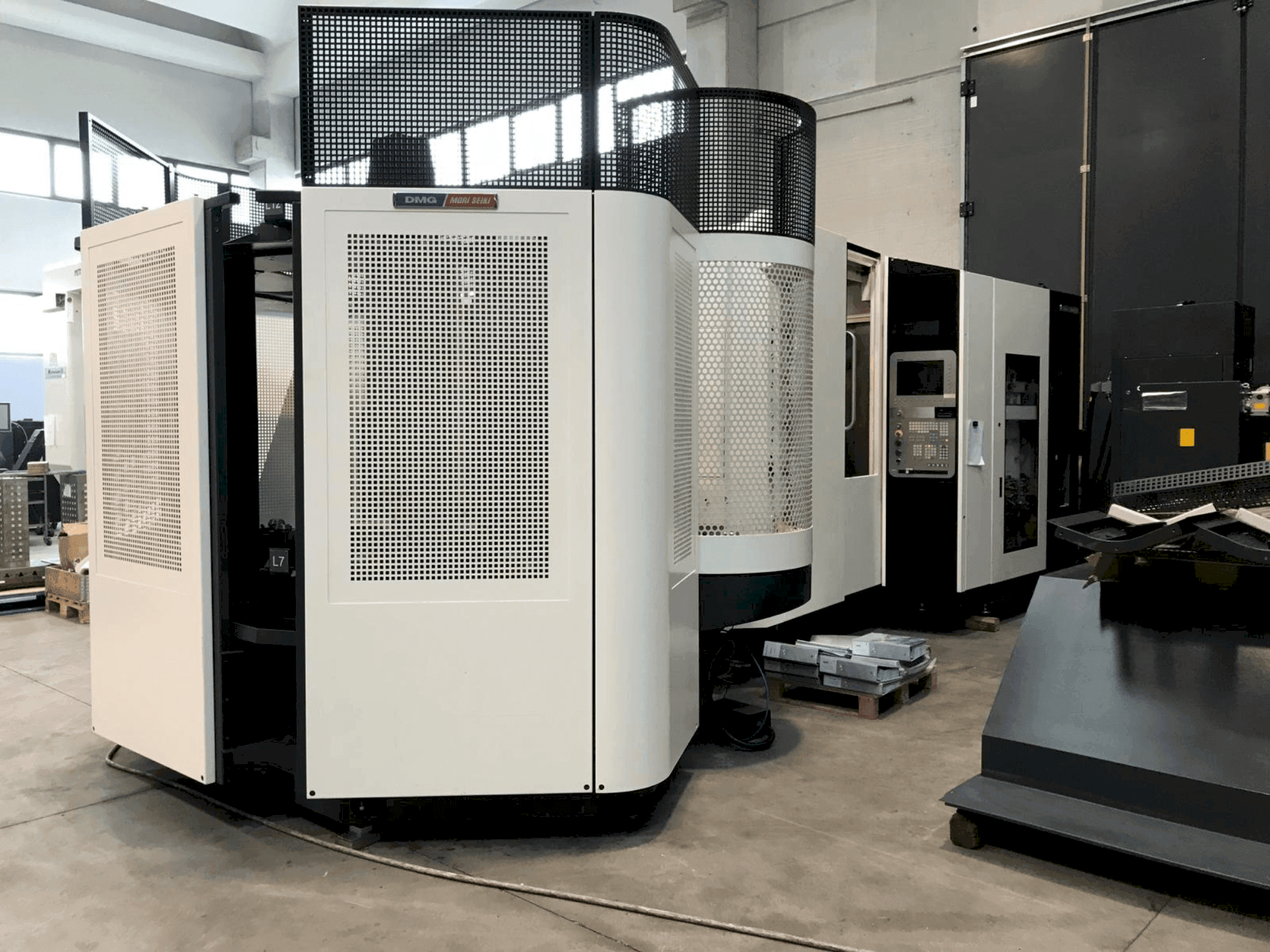

This DMG DMC 60H Linear Horizontal Machining center was manufactured in the year 2013 and has 46048 production hours. It is equipped with a Siemens 840 D control unit and has 3 axis. The machine has a spindle speed of 18000 rpm. See original delivery note as PDF (German) attached to see all technical positions.

Overview

  • brand: DMG
  • year: 2013
  • MODEL: DECKEL MAHO DMC 60H Linear
  • production hours: 46048
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (horizontal)
  • availability: Immediately
  • control unit brand: SIEMENS
  • GINDUMAC ID: DE-MIL-DMG-2013-00001

Technical Information

Control Unit

  • Brand: SIEMENS
  • Model: 840D
  • CNC main language: German
  • CNC language customizable: Yes

Main drive

  • Spindle speed range: 18000 1/MIN
  • Spindle motor power: 20 kW
  • Tool taper: HSK-A63
  • Number of axis: 3

Movement

  • X-AXIS Movement: 630 mm
  • Y-AXIS Movement: 800 mm
  • Z-AXIS Movement: 850 mm

Workpiece

  • Workpiece weight: 600 Kg

Table

  • Outer length: 500 mm
  • Outer width: 500 mm

Tools

  • Number of stations: 5
  • Slots in storage: 303
  • Type of tool holder: HSK-A63

    Additional equipment

    • - Scraper belt chip conveyor with coolant system 980 liter, paper belt filter, discharge height 950 mm, width 380 mm, IKZ 80 bar / 14 l/min through spindle center (AD), pressure infinitely programmable, selectable via NC program, Roof flushing of the working area 180 l/min via flushing nozzles with a ripple valve
    • - Rotating viewing window / work area door
    • - Flushing gun with pump
    • - Double gripper
    • - Wheel magazine
    • - NC rotary table Ø 630 mm
    • - 3D path control

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Number of pallets: 12 // round pallet storage: rs 12
        • - Rotary pallet changer // work table with pallet support // permissible load: 600 kg // 2 pallets 500 x 500 mm with t-slots // pallet management // pallet changer cladding // claw flushing pallet
        • - Cooling through the spindle center: 80 bar
        • - Tool magazine: wheel magazine (5 wheels) with 303 magazine slots hsk a63
        • - Infrared measuring probe renishaw pp60 optical (omp60) hsk-a 63
        • - Mpc machine protection control (machine protection through rapid shutdown)
        • - Laminated glass safety pane for right-hand cabin door window
      • Qualitative Machine Benefits:
        • - Mcis tdi tool management (module tdi machine) - overview , tool handling, planning
        • - Extraction mechanical and electrical preparation for oil mist extraction
        • - Tool breakage check mechanical design

      Extra information

      • - Documentation and Electrical circuit diagram (German) available

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
