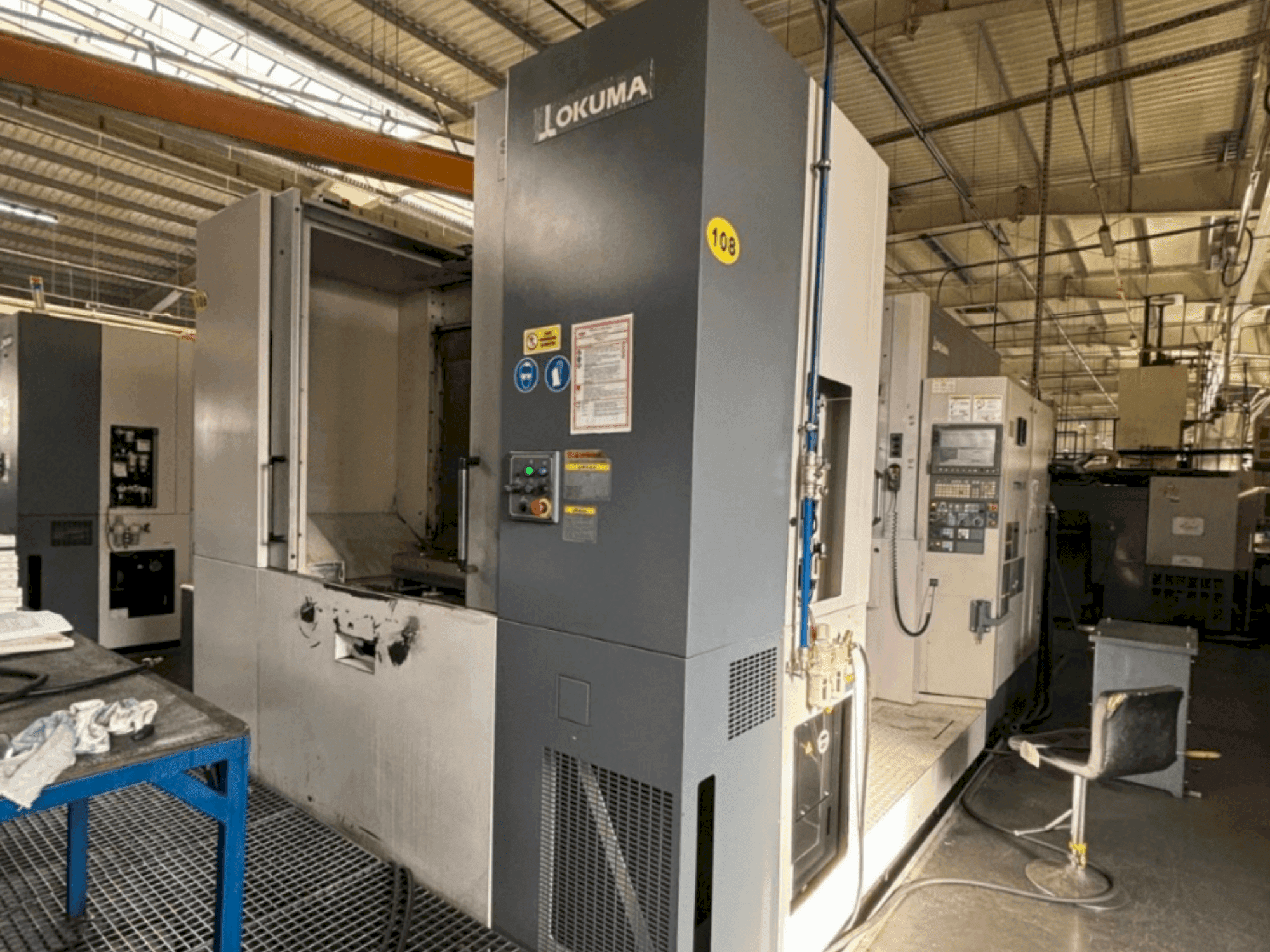

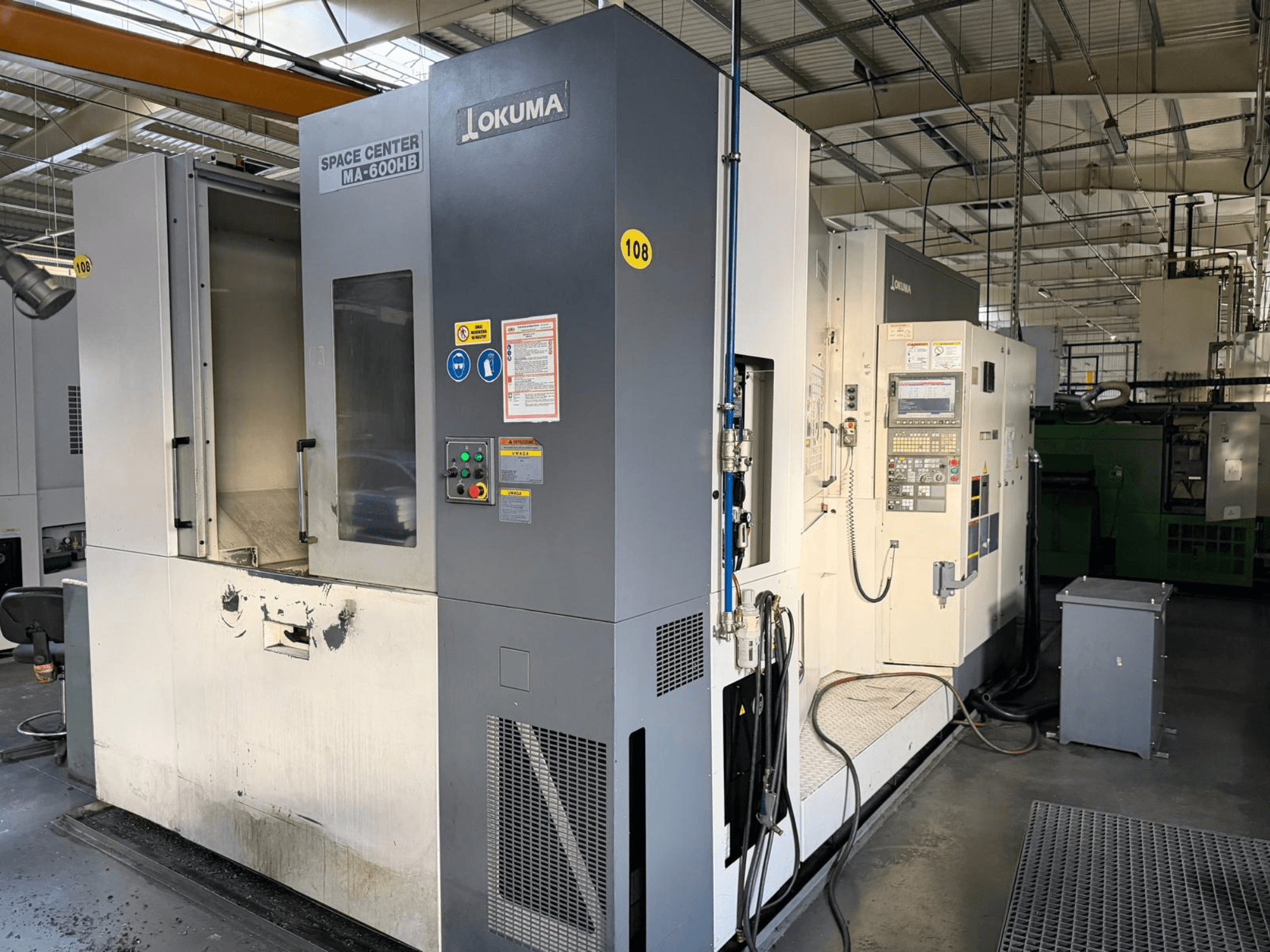

Okuma - MA 600 HBIT-MIL-OKU-2011-00004

• Spindle center to table surface: 50 to 950 mm

• Spindle nose to pallet center: 70 to 1,070 mm

• Table / Pallet

  • Max rotation dimensions: 1,000 × 1,000 mm

  • Continuous table positions: 360,000

  • Pallet change time: 7 sec

  • Pallet type: MAS perforated

• Cooling through spindle: 20 bar

• Compressed air pressure: 46 bar

• Feed

  • Cutting feedrate: 60,000 mm/min

  • Positioning accuracy X-Y-Z: 0.004 mm

  • Repeatability X-Y-Z: 0.0015/100 mm

• Tooling / Magazine

  • Tool change time (tool/tool): 1.9 sec

  • Tool change time (chip/chip): 4.4 sec

  • Tool selection: random

  • Max tool diameter (non-adjacent): 240 mm

• Floor space: 3.38 × 6.11 m

• Installed power: 50 kVA

• Machine features

  • Work area shower wash system: Yes

  • Presetting at table edge: Yes

  • Provision for probe / zero offset: Yes

Additional equipment

• Chip conveyor: Mayfran
