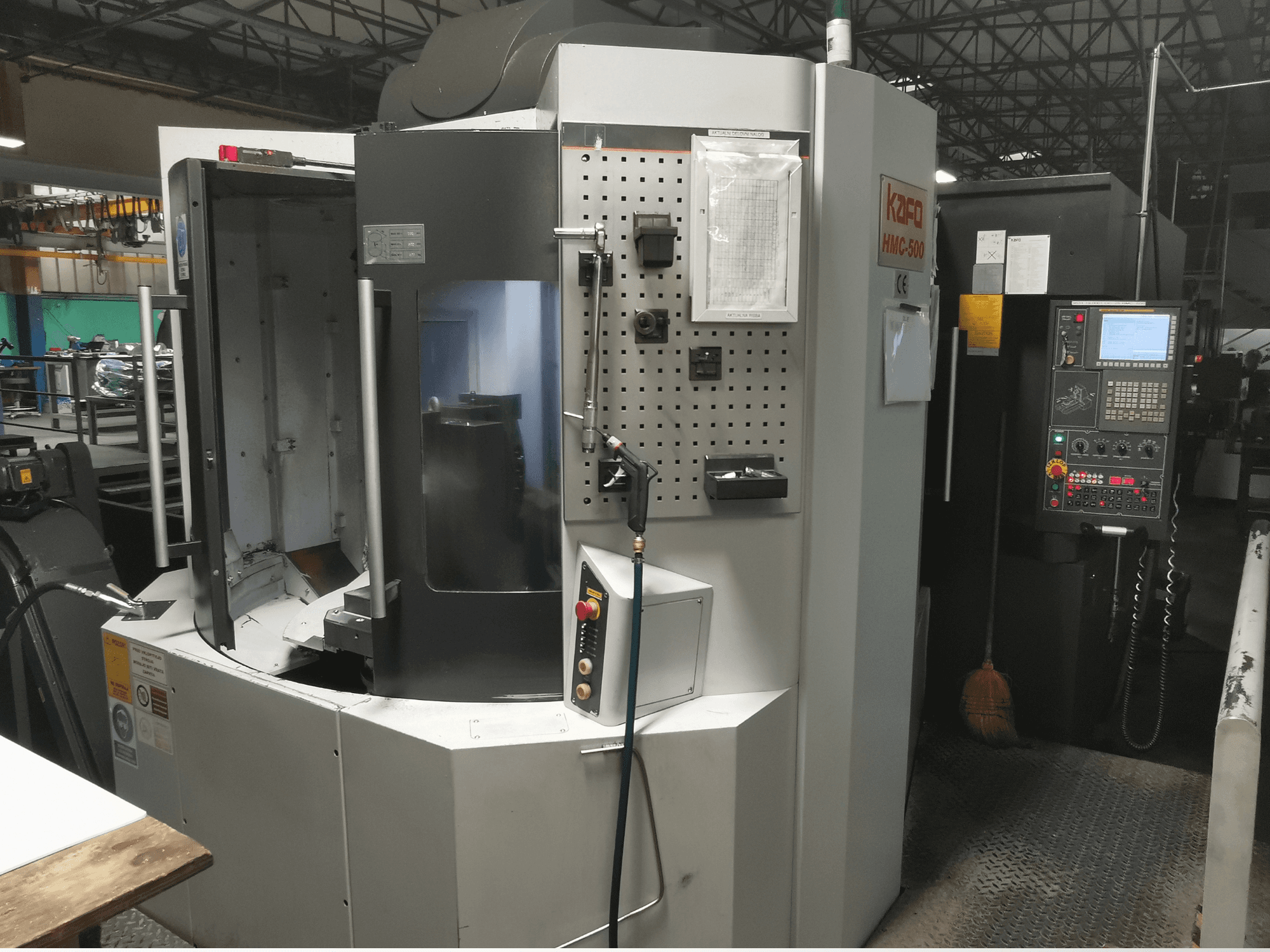

Kafo HMC-500 horizontal machining center, front view, showcasing control panel, tool holder, and empty machine chamber.
Kafo HMC-500 horizontal machining center, front view, showcasing control panel, tool holder, and empty machine chamber.

KAFO - HMC-500SI-MIL-KAF-2019-00001

Rs. 16,418,278
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis KAFO HMC-500 was manufactured in 2019 and features a robust FANUC 0i-F control unit. With a spindle speed of up to 10,000 rpm and a tool magazine capacity of 40 tools, it ensures efficient machining. The machine has a pallet size of 500x500 mm and a maximum workpiece size of Ø700 mm by 800 mm. Consider the opportunity to buy this KAFO HMC-500 horizontal machining centre. Contact us for more information about this machine.

Overview

  • brand: KAFO
  • year: 2019
  • MODEL: HMC-500
  • production hours: 10458
  • application type: Milling
  • Location: Slovenia
  • machine type: Horizontal Machining Centre
  • control unit brand: FANUC

Technical Information - KAFO HMC-500

Control Unit

  • Control Brand: FANUC
  • Control Model: oi-F

Additional Information

  • Production Hours: Power On Time: 26225 h, Run Time: 12983 h, Cutting Time: 10458 h, Free Purpose Time: 5548 h

  • Power Supply: 3×380 V, 50–60 Hz

  • Full Load Amp: 125 A

  • Hydraulic Pressure: 50 kg/cm²

  • Short Circuit Rating: 5 kA

  • Weight: 13000 kg

  • Spindle Speed: Max. 10000 rpm

  • Spindle Power: 25–30 kW

  • Tool Taper: BT-40

  • Axis Travels: X-axis: 720 mm, Y-axis: 650 mm, Z-axis: 650 mm

  • Rapid Traverse (X/Y/Z): 24 / 24 / 18 m/min

  • Cutting Feedrate: 10 m/min

  • Axis Motors: X-axis motor: 7.5 kW, Y-axis motor: 6 kW, Z-axis motor: 4 kW, B-axis motor: 4 kW

  • Max. Workpiece Size (Diameter / Height): Ø 700 mm / 800 mm

  • Pallet Size: 500 × 500 mm

  • Pallet Load Capacity: 800 kg

  • APC Pallet Change Time: 10 s

  • B-axis Indexing: 0.001°

  • Tool Magazine Capacity: 40 tools

  • Max. Tool Diameter: Ø 90 mm

  • Max. Diameter Without Adjacent Tools: Ø 250 mm

  • Max. Tool Length: 400 mm

  • Max. Tool Weight: 20 kg

  • Chip-to-Chip Time: 2 s

  • Tool-to-Tool Time: 1 s

  • Table to Floor: 1246 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
