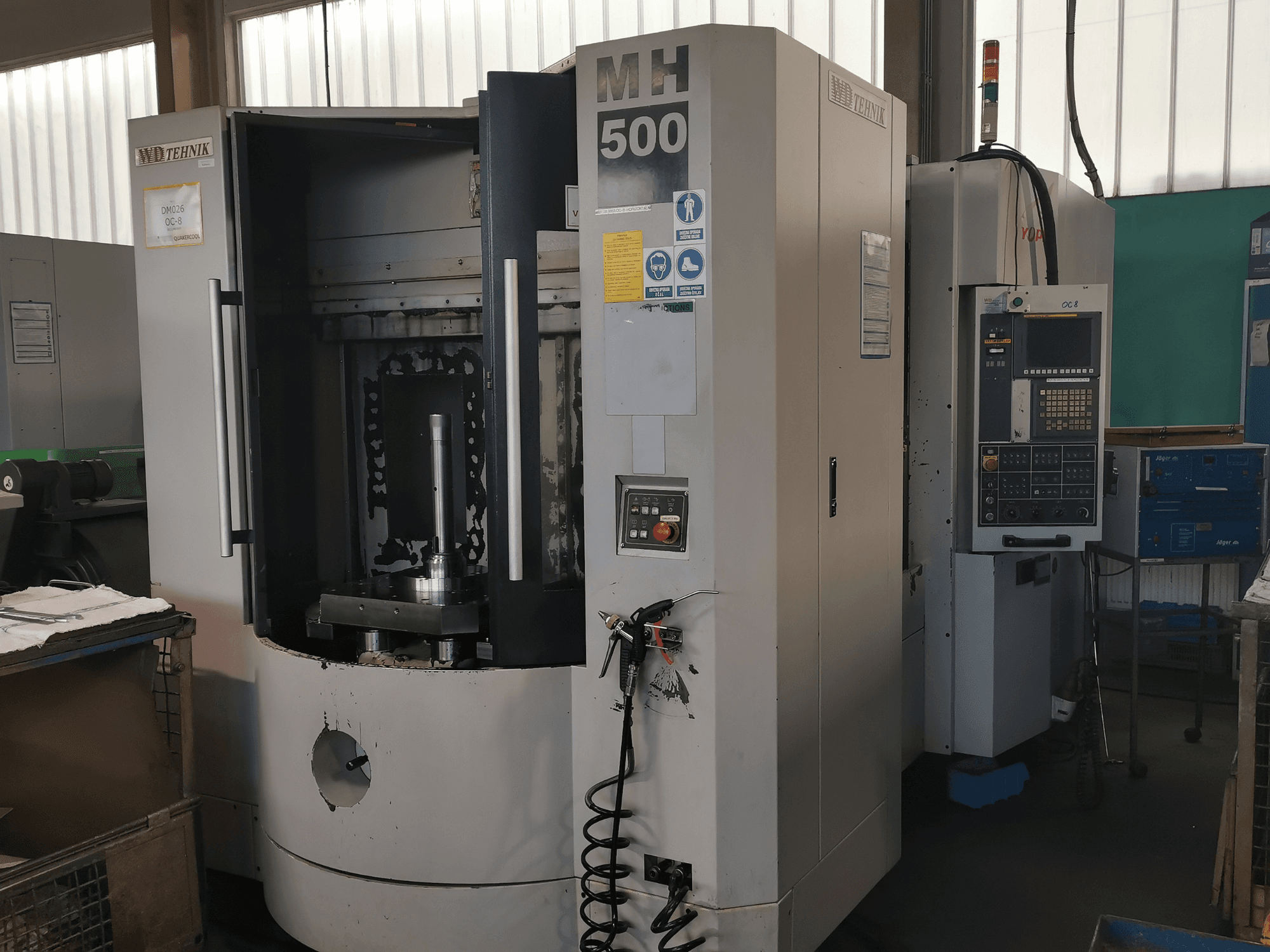

MH 500 machining center in a workshop, front view; visible control panel and workpiece holder inside the machine.
MH 500 machining center in a workshop, front view; visible control panel and workpiece holder inside the machine.

Yida - MH-500SI-MIL-YID-2009-00001

Rs. 5,365,450
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Yida MH-500 horizontal machining center was manufactured in 2009. It features a spindle speed of up to 10,000 rpm, a pallet size of 500 × 500 mm, and a tool magazine with a 40-tool capacity. Ideal for high-precision machining with its LM linear guideways and rapid traverse rates. If you are looking to get high-quality milling capabilities, consider the Yida MH-500 machine we have for sale. Contact us for more information about this machine.

Overview

  • brand: Yida
  • year: 2009
  • MODEL: MH-500
  • production hours: 18098
  • application type: Milling
  • Location: Slovenia
  • machine type: Horizontal Machining Centre

Technical Information - Yida MH-500

Movement

  • X-axis Travel: 610 mm
  • Y-axis Travel: 510 mm
  • Z-axis Travel: 610 mm

Additional Information

  • Production Hours:

  • Power ON: 61604 hours

  • Operating time: 27145 hours

  • Cutting time: 18098 hours

  • Parts produced: 107438 pieces

  • Axes: 4

  • Machine Weight: 10275 kg

  • Voltage: 415 V

  • Frequency: 50 Hz

  • Current: 125 A

  • Power Requirement: 30 kVA

  • Air Requirement: 5 bar

  • Taper: ISO No. 40

  • Spindle diameter: Ø65 mm

  • Speed: 10000 rpm (optional 15000 rpm)

  • Spindle motor: 11 / 15 kW

  • Pallet size: 500 × 500 mm

  • Max. loading capacity: 450 kgf

  • Indexing: 0.001°

  • Number of pallets: 2

  • Pallet change time: 7–8 seconds

  • Pallet changer type: Swing arm type

  • Spindle nose to table center: 140–750 mm

  • Spindle center to table surface: 30–540 mm

  • Cutting feedrate: 1–8000 mm/min

  • Rapid traverse (X/Y/Z): 32000 mm/min

  • Slideways: LM linear guideways

  • Capacity: 40 tools (optional 60 tools)

  • Tool selection: Random

  • Tool taper: BT40 (optional CAT40)

  • Max. adjacent tool diameter: Ø76 mm (Ø80 optional)

  • Max. tool length: 280 mm

  • Max. tool weight: 7 kg

  • Servo motors (X/Y/Z): 4 kW

  • Servo motor (B-axis): 3 kW

  • Coolant pump motor: 1270 W

  • Hydraulic motor: 2.2 kW

  • Chip conveyor motor: 200 W

  • ATC motor: 430 W

  • Overall size: 3145 × 2552 × 3890 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
