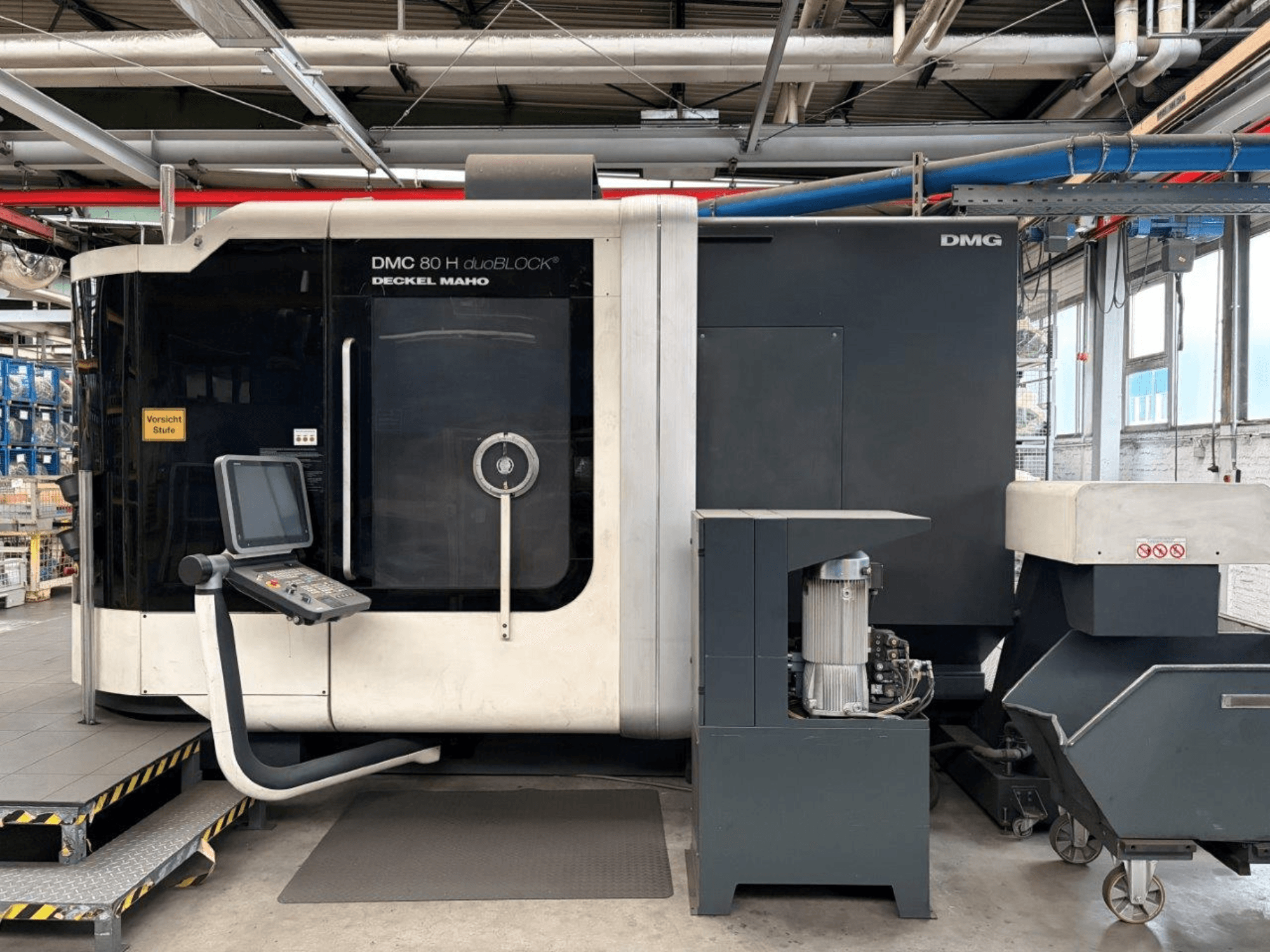

DECKEL MAHO - DMC 80 H duoBLOCKDE-MIL-DEC-2010-00003

Power capacity: 103 kVA

Current (In max): 148 A

Voltage: 400 V

Frequency: 50 Hz

Control voltage: 24 V

Measuring system: Direct, absolute, photoelectric

Resolution (X, Y, Z): 0.001 mm

Position tolerance (X, Y, Z): 0.007 mm (Standard) / 0.006 mm (with Accuracy Package)

Position tolerance A-axis: 9 ws (Standard) / 8 ws (with Accuracy Package)

Position tolerance B-axis: 8 ws (Standard) / 6 ws (with Accuracy Package)

Position tolerance C-axis: 7 ws (Standard) / 5 ws (with Accuracy Package)

Table height (top of pallet to floor): 1120 mm

Distance spindle center to table: 150 mm (minimum distance, Motor spindle) / 145 mm (Gear spindle)
