Matsuura - H. Plus 405 DE-MIL-MAT-2006-00003

Rs. 5,110,276
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

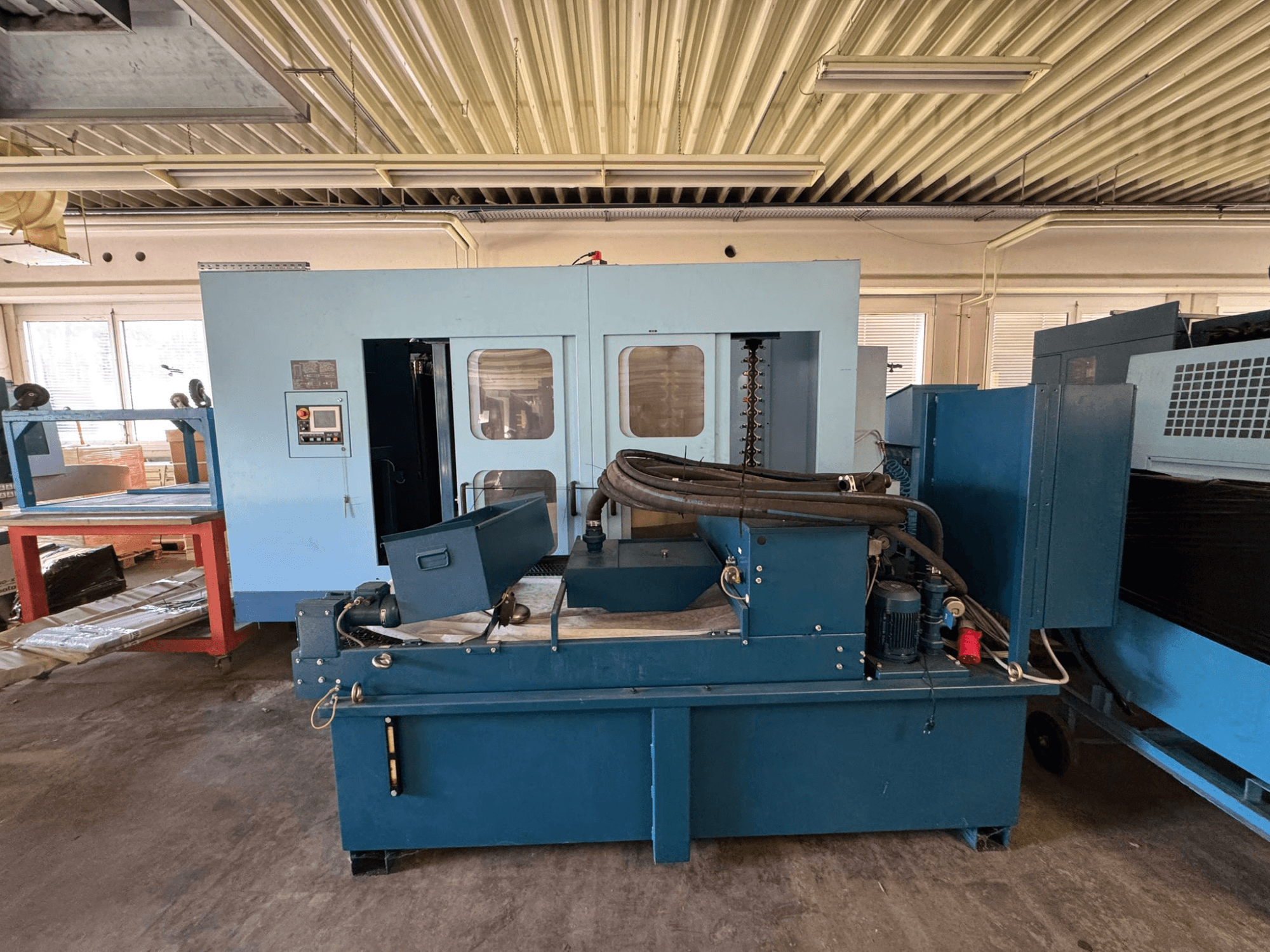

This 4-axis Matsuura H. Plus 405 was manufactured in 2006. It features an X-axis travel of 600 mm, Y-axis travel of 660 mm, and Z-axis travel of 660 mm, along with a 360° rotary B-axis. The machine has a maximum workpiece size of 700 × 850 mm and a tool changer capacity of 60 tools. If you are looking to get high-quality machining capabilities, consider the Matsuura H. Plus 405 horizontal machining centre we have for sale. Contact us for further details.

Overview

  • brand: Matsuura
  • year: 2006
  • MODEL: H. Plus 405
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre

Technical Information - Matsuura H. Plus 405

Movement

  • Number of Axes: 4
  • X-axis Travel: 600 mm
  • Y-axis Travel: 660 mm
  • Z-axis Travel: 660 mm

Technical Specification

  • Spindle Power: 22 kW
  • Spindle Speed: 12000 RPM
  • Taper Size: SK 40

Additional Information

  • B-Axis: 360° rotary table

  • Rapid Traverse X/Y/Z: Up to 60 m/min

  • Pallet Size: 500 × 500 mm

  • Maximum Workpiece Size: 700 × 850 mm

  • Maximum Workpiece Weight: 400 kg

  • Pallet Changer: 2-position

  • Main Spindle Speed: Max. 12,000 rpm

  • Tool Holder Options: SK40 / BT40 / HSK63

  • Max Spindle Drive Power: 15 / 22 kW

  • Maximum Spindle Torque: 187 Nm

  • Tool Changer Capacity: 60 tools

  • Chip-to-Chip Time: Approx. 3.5 sec.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
