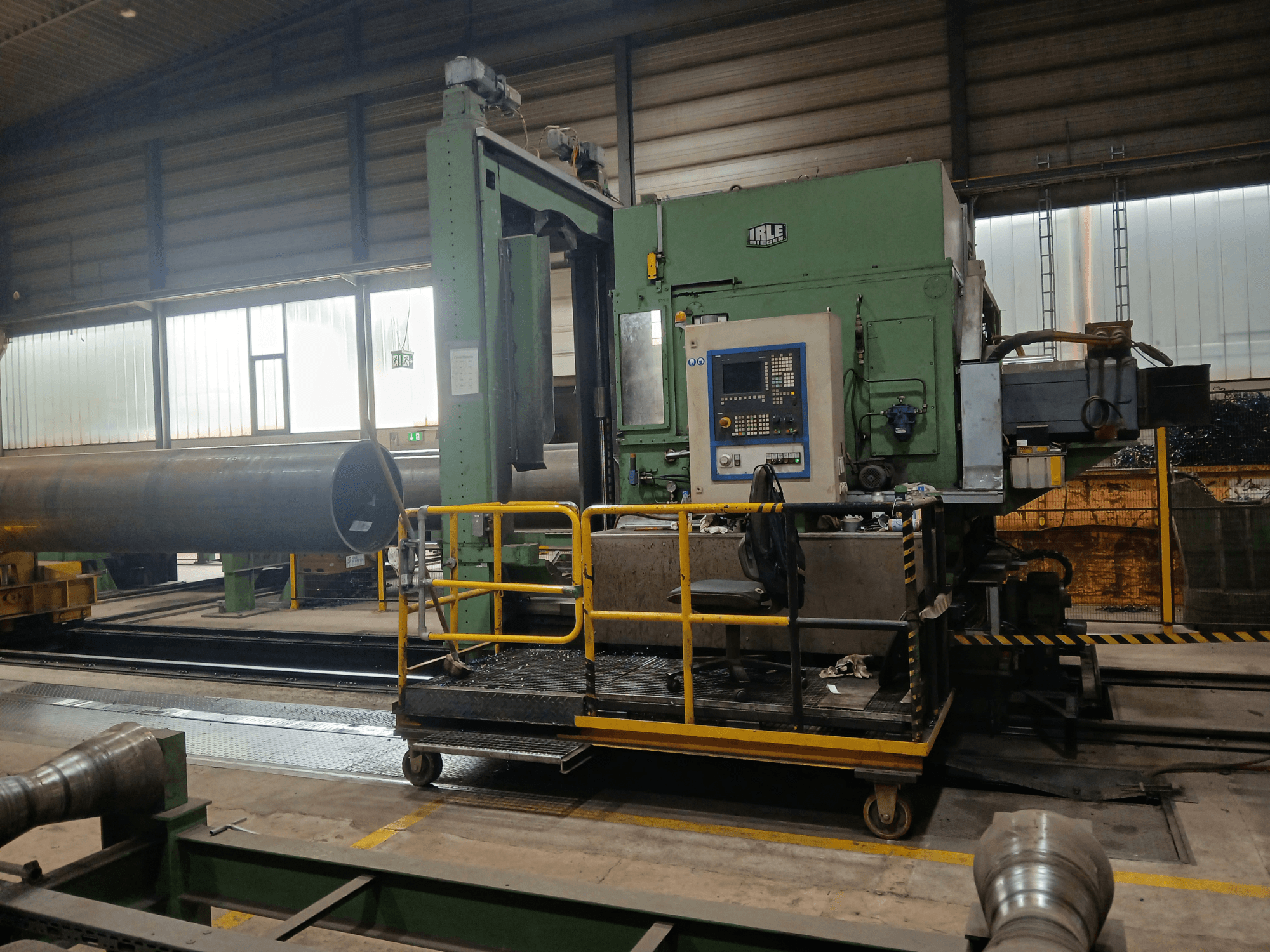

IRLE - IRD 1600 CNCDE-MIL-IRL-2004-00001

- Max. Pipe Diameter to be Processed: 1,625 mm

- Min. Pipe Diameter to be Processed: 406 mm

- Max. Pipe Length to be Processed: 13,200 mm

- Min. Pipe Length to be Processed: 6,000 mm

- Min. Pipe Wall Thickness: 12 mm

- Max. Pipe Wall Thickness (Copying Process): approx. 40 mm

- Max. Pipe Wall Thickness (CNC Operation): 70 mm

- Max. Pipe Weight to be Supported: 25500 kg

- Height between Hall Floor and Pipe Inlet: 800 mm

- Total Machine Length: approx. 24,000 mm

- Total Machine Width: approx. 4,100 mm

- Total Height from Floor to Top of Clamping Vise: 5,000 mm

- Total Machine Weight: approx. 71400 kg

- Operating Voltage: 400 V, 3-phase, 50 Hz

- Control Voltage: 220 V DC / 50 Hz

- Nominal Operating Current: 400 A

- Intermediate Bed - Bed Length: approx. 3,950 mm

- Intermediate Bed - Bed Width: approx. 1,800 mm

- Intermediate Bed - Bed Height (incl. chassis): approx. 600 mm

- Intermediate Bed - Travel Speed on Foundation Rails: 500 - 5,000 mm/min

- Intermediate Bed - Drive Motor Power: 5.5 kW

- Headstock - Faceplate Speed Range: 7 - 105 min⁻¹

- Headstock - Motor Speeds: 300 - 4,500 min⁻¹

- Headstock - Motor Power: 100 kW

- Headstock - Motor Power (S1 Duty Cycle): 105 kW

- Headstock - Max. Faceplate Torque (S1 Duty): 33,000 Nm

- Headstock - Characteristic Speed: 27 min⁻¹

- Headstock - Main Spindle Diameter (Front Bearings): 300 mm

- Faceplate (X-Axis) - Faceplate Diameter: approx. 1,950 mm

- Faceplate (X-Axis) - NC Tool Support Travel Range: approx. 650 mm

- Faceplate (X-Axis) - Tool Support Feed Rate (Infinitely Variable): 0.5 - 1,500 mm/min

- Faceplate (X-Axis) - Max. Achievable Feed Force: 25 kN

- Feed Gearbox (Z-Axis) - Headstock Feed Travel on Machine Bed: 800 mm

- Feed Gearbox (Z-Axis) - Feed Rate (Infinitely Variable via AC Servomotor): 0.5 - 200 mm/min

- Feed Gearbox (Z-Axis) - Rapid Traverse Speed: 1,500 mm/min

- Feed Gearbox (Z-Axis) - Feed Force: 30 kN

- Feed Gearbox (Z-Axis) - Feed Motor Torque: 27 Nm

- Pipe Clamping Steady Rests - Clamping Range: 406 - 1,625 mm

- Pipe Clamping Steady Rests - Pipe Weight Capacity per Steady Rest: 150 kN

- Pipe Clamping Steady Rests - Adjustable Clamping Force: 10 - 200 kN

- Pipe Clamping Steady Rests - Max. Adjusting Speed of Centrally Moving Clamping Crossbars: 600 mm/min
