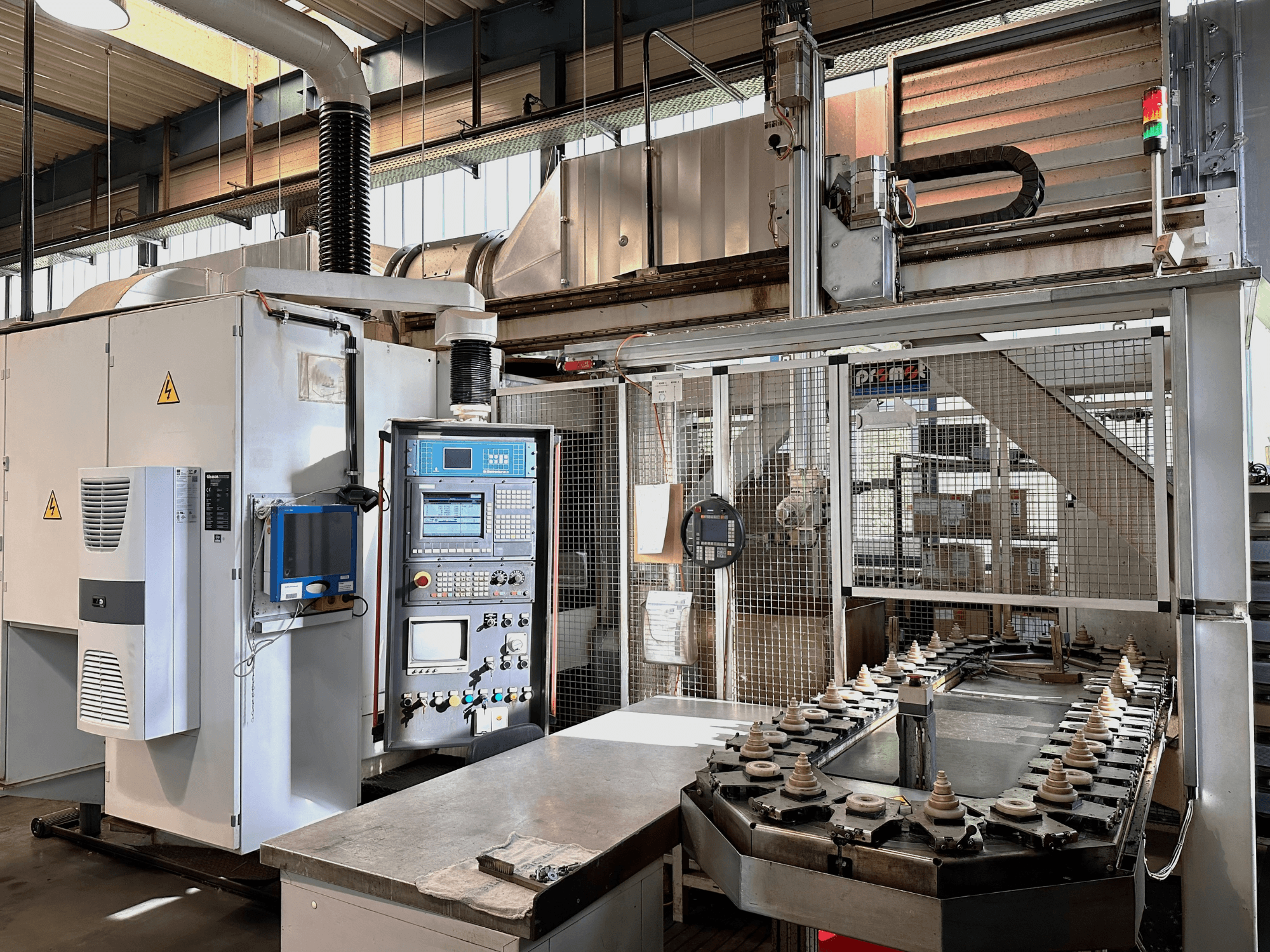

This 5-axis Gleason PFAUTER G320 CNC + Promot Automation was manufactured in 2001. It features a Siemens 840 control unit, a maximum workpiece diameter of 380 mm, and a module range of 0.5-7.0. The system includes Promot Automation handling, a robotics system, and a cooling belt system. If you are looking to get high-quality gear grinding capabilities consider the Gleason PFAUTER G320 CNC machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Gleason PFAUTER
- year: 2001
- MODEL: G320 CNC + Promot Automation
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - Gleason PFAUTER G320 CNC + Promot Automation
Control Unit
- Control Brand: SIEMENS
- Control Model: 840
Dimensions
- Machine Weight: 11500 kg
Movement
- Number of Axes: 5
Additional Information
Operator panel: included
Module range: 0.5–7.0
Workpiece diameter: min 10 mm, max 380 mm
Number of teeth: 10–600
Axis travels: Z (vertical) 200 mm; X (horizontal) 230 mm; Y (tangential/shift) 135 mm
Clamping head swivel (A): ±45°
Tailstock stroke: 125 mm
Dressing travels: V (tangential) 180 mm; U (radial) 110 mm
Grinding wheel speed: up to 3000 rpm, stepless
Linear axis speed: 10,000 mm/min
Max. table rotation speed: 240 rpm
Table resolution: 0.001°
Feeds: machining and working feeds stepless
Grinding wheel dimensions: diameter 270–350 mm; width up to 104 mm; bore 160 mm
System weight: approx. 11,500 kg
Space required (machine): approx. 3.7 m × 2.4 m × 2.75 m
Additional equipment
Promot Automation handling unit (robotics handling)
Operator panel/handheld (for automation)
Conveyor belt
Cooling belt system
Hydraulic unit
Space required (automation): approx. 4.5 m × 1.6 m × 4.0 m
Accessories as shown in photos
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
