- ➤ Used OMV BPF-4 1200 For Sale | gindumac.com

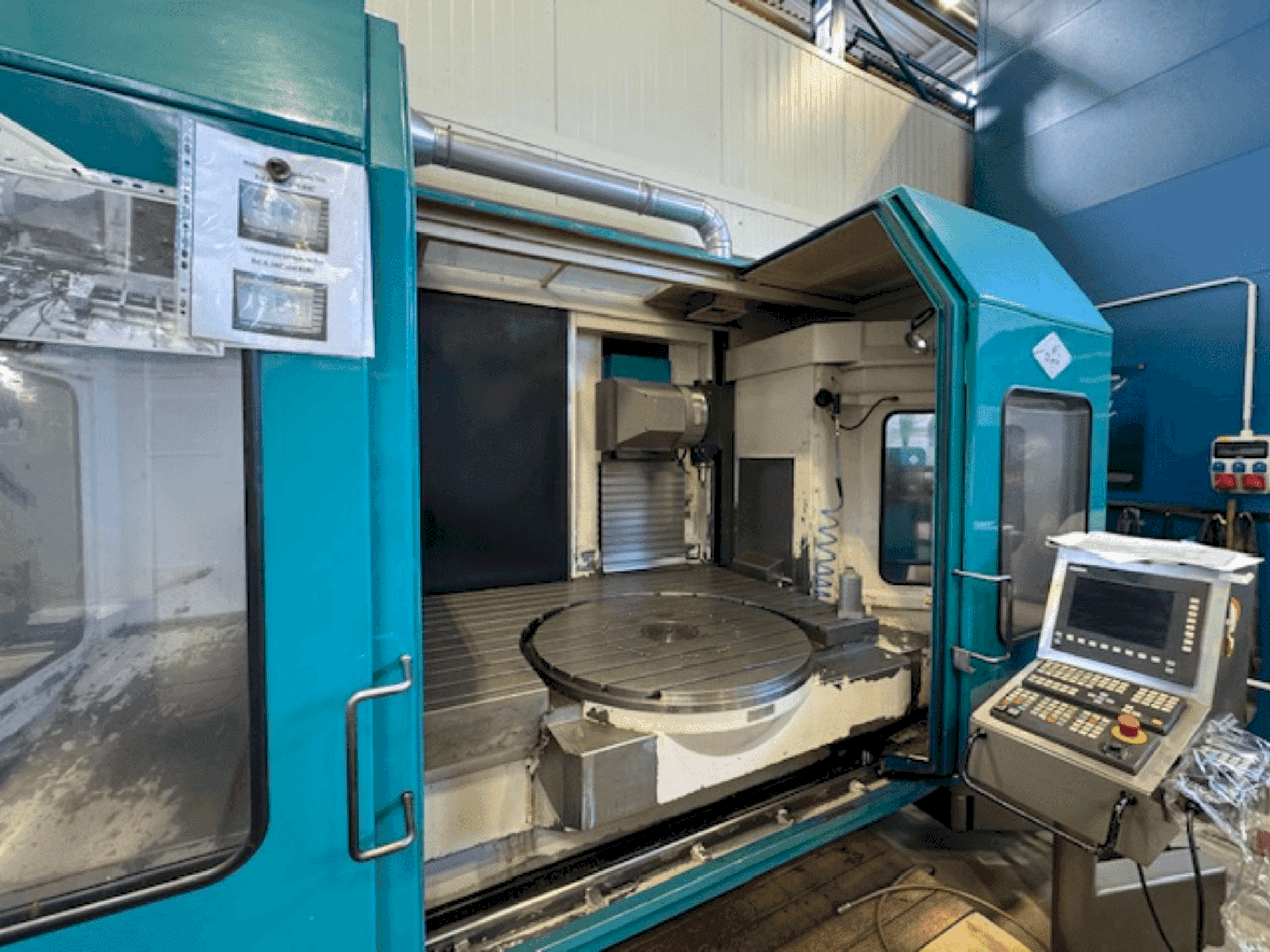

This 5-axis OMV BPF-4 1200 universal machining centre was manufactured in 1999. Ideal for precision engineering, it offers robust construction and reliable performance. Consider the opportunity to buy this OMV BPF-4 1200 universal machining centre. Contact us for more information.
Overview
- brand: OMV
- year: 1999
- MODEL: BPF-4 1200
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - OMV BPF-4 1200
Control Unit
- Control Brand: SIEMENS
Dimensions
- Machine Depth: 4550 mm
- Machine Height: 2700 mm
- Machine Weight: 17600 kg
- Table Load: 3000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 1200 mm
- Y-axis Travel: 850 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 20000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
Table length: 2300 mm // table width: 930 mm
T grooves: 7
Width t-slots: 18 mm
Groove spacing: 120 mm
Working feed: 0 to 12000 mm/min fast feed: 12000 mm/min
Table distances: floor: 780 mm vertical spindle nose: 325 to 925 mm spindle nose horizontal: 410 to 1010 mm
Type: electric spindle iso 40
Din: 69871 / compressed air: 6 bar
Vertical inclination: +170 degrees // horizontal inclination: +120 degrees
The bed has a weight of approx. 14000 kg
Extra Information
360 degree swivel table
Table diameter 1000 mm, locked! The head can be moved in any direction and stopped at any position. Simultaneous movement is possible on the X, Y, Z, A and B axes, but not on the rotary table!
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
