HELLER - MCH 250DE-MIL-HEL-2002-00002

Rs. 3,763,867
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

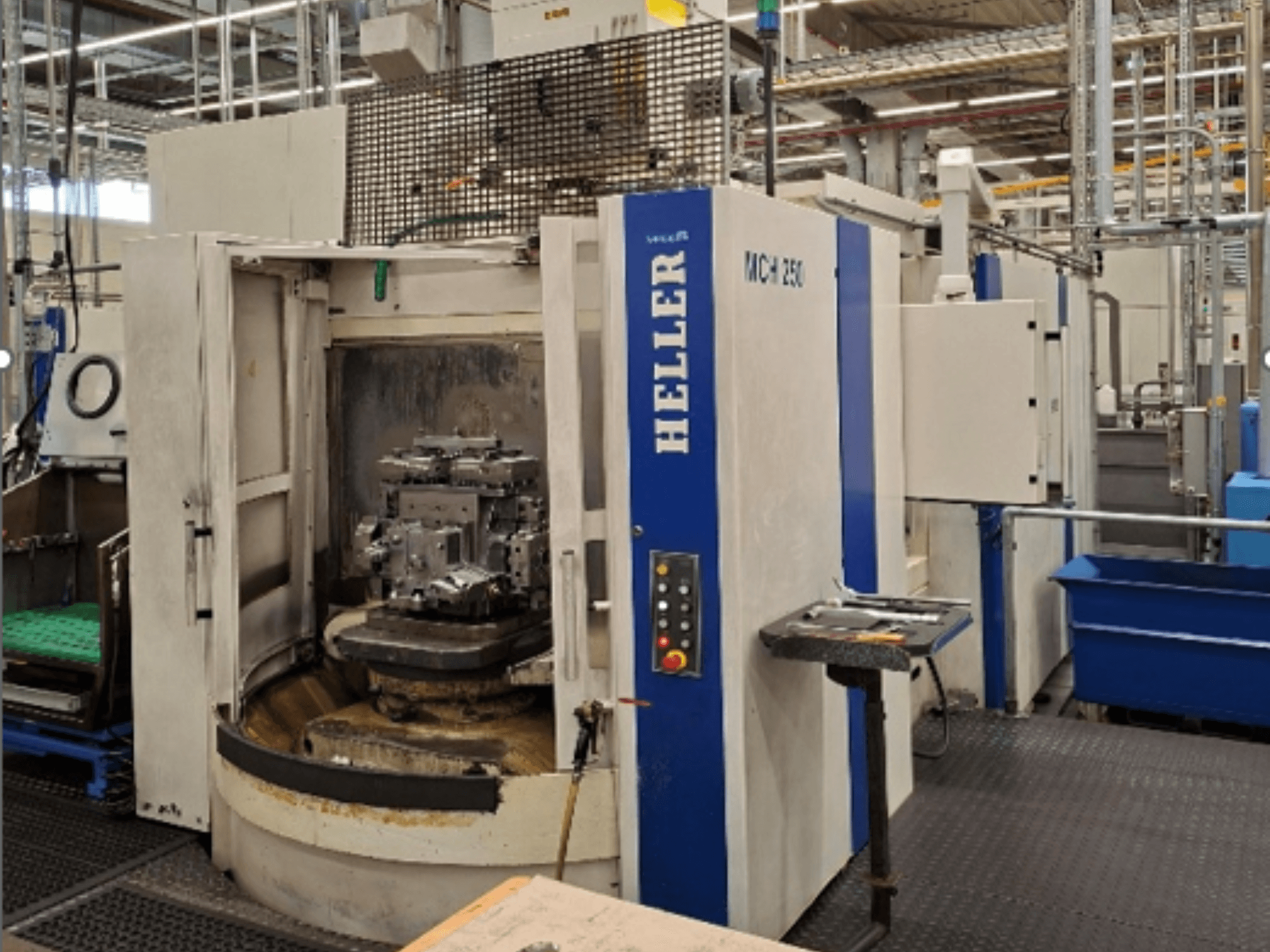

This 4-axis HELLER MCH 250 was manufactured in 2002. It features a generous X, Y, and Z-axis travel of 800 mm each, along with a B-axis travel of 360,000 x 0.001°. The machine is equipped with a Siemens 840D control unit and a tool magazine with 100 positions. If you are looking to get high-quality machining capabilities, consider the HELLER MCH 250 horizontal machining centre we have for sale. Contact us for further details.

Overview

  • brand: HELLER
  • year: 2002
  • MODEL: MCH 250
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre
  • control unit brand: SIEMENS

Technical Information - HELLER MCH 250

Control Unit

  • Control Brand: SIEMENS
  • Control Model: 840D

Movement

  • Number of Axes: 4
  • X-axis Travel: 800 mm
  • Y-axis Travel: 800 mm
  • Z-axis Travel: 800 mm

Technical Specification

  • Spindle Speed: 6000 RPM
  • Taper Size: HSK 100
  • Tool Stations: 100

Additional Information

Control Unit: Siemens 840D

Tool Holder / Taper: HSK 100

Tool Magazine Positions: 100

Pallet Changer: Included

X-Axis Travel: 800 mm

Y-Axis Travel: 800 mm

Z-Axis Travel: 800 mm

B-Axis Travel: 360,000 x 0.001°

Spindle Speed: 6,000 RPM

Measuring Probe: Blum probe

Voltage: 400 V (3~)

Frequency: 50 Hz

Rated Current: 185 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
