HITACHI SEIKI - HS630DE-MIL-HIT-2001-00001

Rs. 2,309,459
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

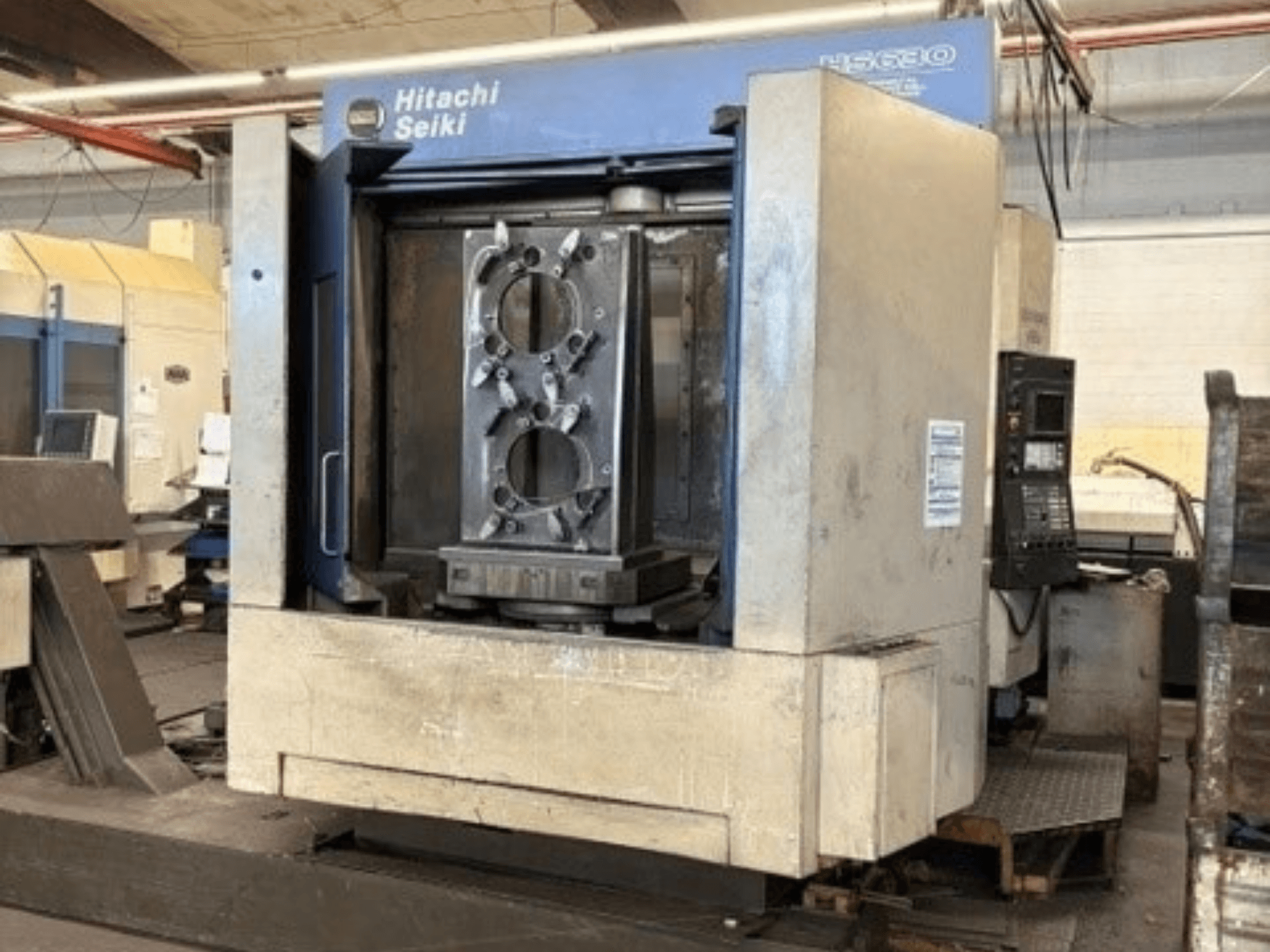

This 4-axis HITACHI SEIKI HS630 was manufactured in 2001. It features a travel of 850 mm on the X-axis, 800 mm on the Y-axis, and 850 mm on the Z-axis. The machine has a table work area of 630 x 630 mm and a maximum pallet load capacity of 1200 kg. If you are looking to get high-quality machining capabilities, consider the HITACHI SEIKI HS630 horizontal machining centre we have for sale. Contact us for further details.

Overview

  • brand: HITACHI SEIKI
  • year: 2001
  • MODEL: HS630
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre
  • control unit brand: FANUC

Technical Information - HITACHI SEIKI HS630

Control Unit

  • Control Brand: FANUC

Dimensions

  • Machine Weight: 15000 kg
  • Table Length: 630 mm
  • Table Width: 630 mm

Movement

  • Number of Axes: 4
  • X-axis Travel: 850 mm
  • Y-axis Travel: 800 mm
  • Z-axis Travel: 850 mm

Technical Specification

  • Spindle Power: 45 kW
  • Spindle Speed: 10000 RPM

Additional Information

- Recent Maintenance / Upgrades: Equipped with new linear guides on Y-axis, refurbished ball screw with new bearings

- Control System: Seikos Lambda / Fanuc Control

- Table Work Area: 630 x 630 mm

- Indexing Angle: 1° (360°)

- Indexing Method: Absolute, 3-position

- Pallet Load Capacity: Max. 1200 kg

- Distance Spindle Center to Table Surface: 100 - 900 mm

- Distance Spindle Nose to Table Center: 150 - 1000 mm

- Spindle Taper: NT50 / NT40

- Spindle Speed: 1.0 - 6000 rpm / 100 - 10000 rpm (Fully automatic & stepless)

- Smallest Increment: 0.001 mm

- Cutting Feedrate: 1 - 20000 mm/min

- Jog Feedrate: 5000 mm/min

- Rapid Traverse: 45000 mm/min

- Spindle Motor (AC 50% ED): 30/45 kW (40/30 HP)

- Hydraulic Motor: 2.2 kW (3 HP) - 4P

- Lubrication Motor: 17-2 (0.02)-2 W (HP)-P

- X-Axis Drive Motor: FANUC MODEL α30

- Y-Axis Drive Motor: FANUC MODEL α40F

- Z-Axis Drive Motor: FANUC MODEL α30

- Table Indexing Motor: 1.0 kW (1.4 HP)

- Spindle Cooling Motor: 0.4 kW (0.5 HP) - 4P

- ATC Tool Capacity: 40 pieces (Optional 60 / 90 / 120 tools)

- Max. Tool Diameter: Ø 125 mm

- Max. Tool Length: 500 mm

- Max. Tool Weight: 25 kg

- Tool Selection Method: Any / Bi-directional via 2- and 4-digit T-Word

- APC Exchange Method: Rotary type

- Machine Weight: 15000 kg (33000 lbs)

- Tool Shank Standard: BT50

- Tool Shank Runout Tolerance: Max. 0.025 mm (Positions A & B)

- Tool Shank Perpendicularity: 0.015/100 mm relative to plane A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
