Matsuura - H.Plus 405ES-MIL-MAT-2005-00001

Rs. 8,138,095
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

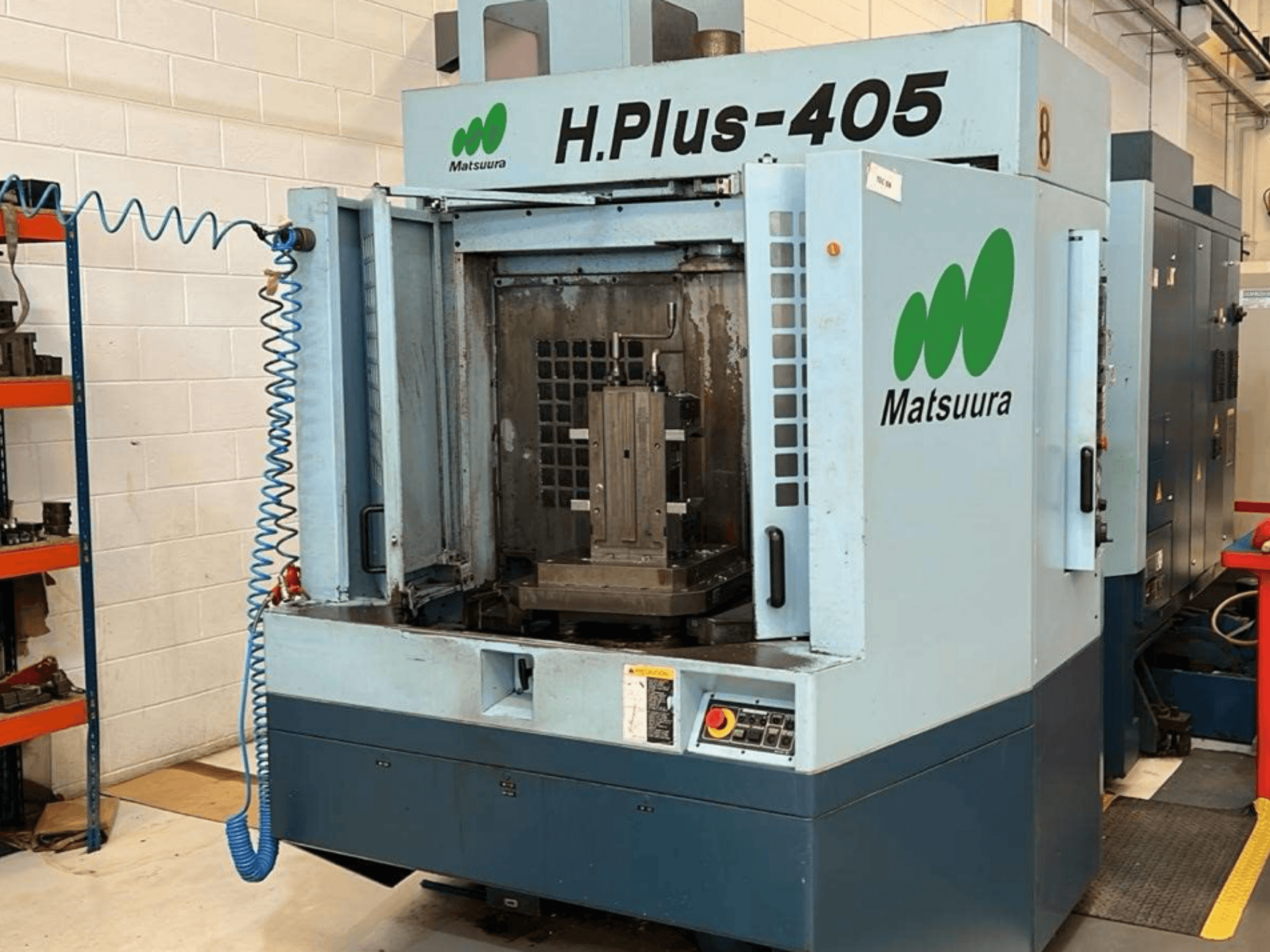

This 3-axis Matsuura H.Plus 405 was manufactured in 2005. It features a pallet working surface of 500 x 500 mm and a maximum load capacity of 400 kg. The machine offers an impressive X, Y, and Z-axis travel of 600 mm each, along with a spindle speed range of 40 - 12,000 rpm. If you are looking to get high-quality machining capabilities, consider the Matsuura H.Plus 405 horizontal machining centre we have for sale. Contact us for further details.

Overview

  • brand: Matsuura
  • year: 2005
  • MODEL: H.Plus 405
  • application type: Milling
  • Location: Spain
  • machine type: Horizontal Machining Centre

Technical Information - Matsuura H.Plus 405

Dimensions

  • Table Load: 400 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 600 mm
  • Y-axis Travel: 600 mm
  • Z-axis Travel: 600 mm

Technical Specification

  • Max. Tool Weight: 10 kg
  • Spindle Speed: 12000 RPM

Additional Information

  • Pallet working surface: 500 x 500 mm

  • Max. workpiece size: Ø 650 x 750 mm

  • Spindle bearing inner diameter: 80 mm

  • Number of tool slots: 51

  • Max. tool diameter: 90 mm

  • Max. tool length: 350 mm

  • Rapid traverse rate: 50 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
