Matsuura - H.PLUS-300DK-MIL-MAT-1997-00001

Name: Matsuura H.PLUS-300
Brand: Matsuura
SKU: DK-MIL-MAT-1997-00001
Price: 1277994 INR
Availability: InStock

Rs. 1,277,994

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Matsuura H.PLUS-300 For Sale | gindumac.com

Show in original language

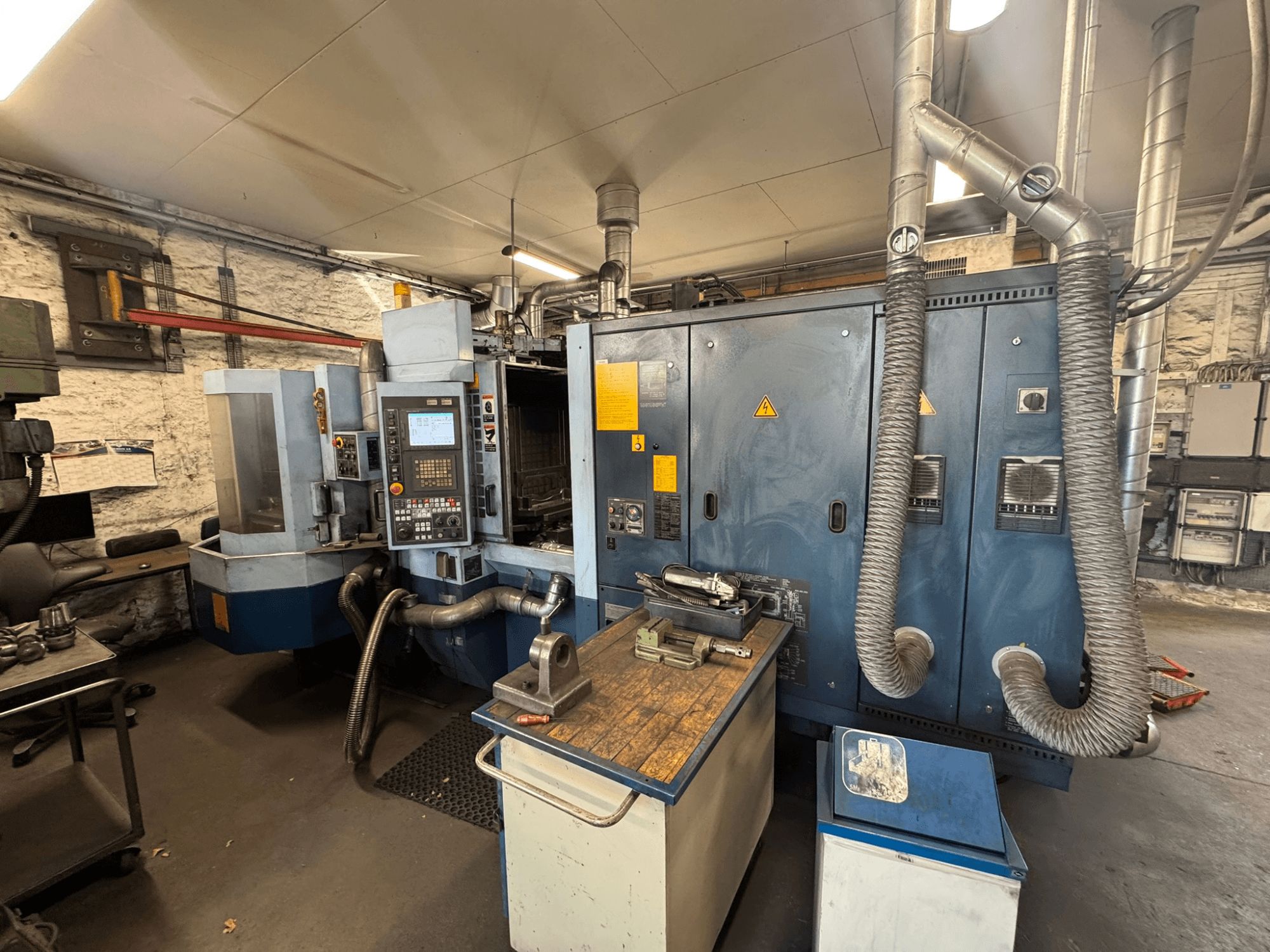

This 3-axis Matsuura H.PLUS-300 was manufactured in 1997. It features a maximum spindle speed of 15,000 rpm and impressive travels of 500 mm in both the X and Y axes, with a Z-axis travel of 480 mm. The machine is equipped with an automatic tool changer that holds 80 tools and includes coolant in the spindle. If you are looking to get high-quality machining capabilities, consider the Matsuura H.PLUS-300 horizontal machining centre. Contact us for further details.

Overview

brand: Matsuura
year: 1997
MODEL: H.PLUS-300
production hours: 19000
application type: Milling
Location: Denmark
machine type: Horizontal Machining Centre
control unit brand: MATSUURA

Technical Information - Matsuura H.PLUS-300

Control Unit

Control Brand: MATSUURA
Control Model: G-Tech 18i

Movement

Number of Axes: 3
X-axis Travel: 500 mm
Y-axis Travel: 500 mm
Z-axis Travel: 480 mm

Technical Specification

Spindle Speed: 15000 RPM
Taper Size: ISO 40
Tool Stations: 80

Additional Information

Through-spindle coolant
Tool setter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
