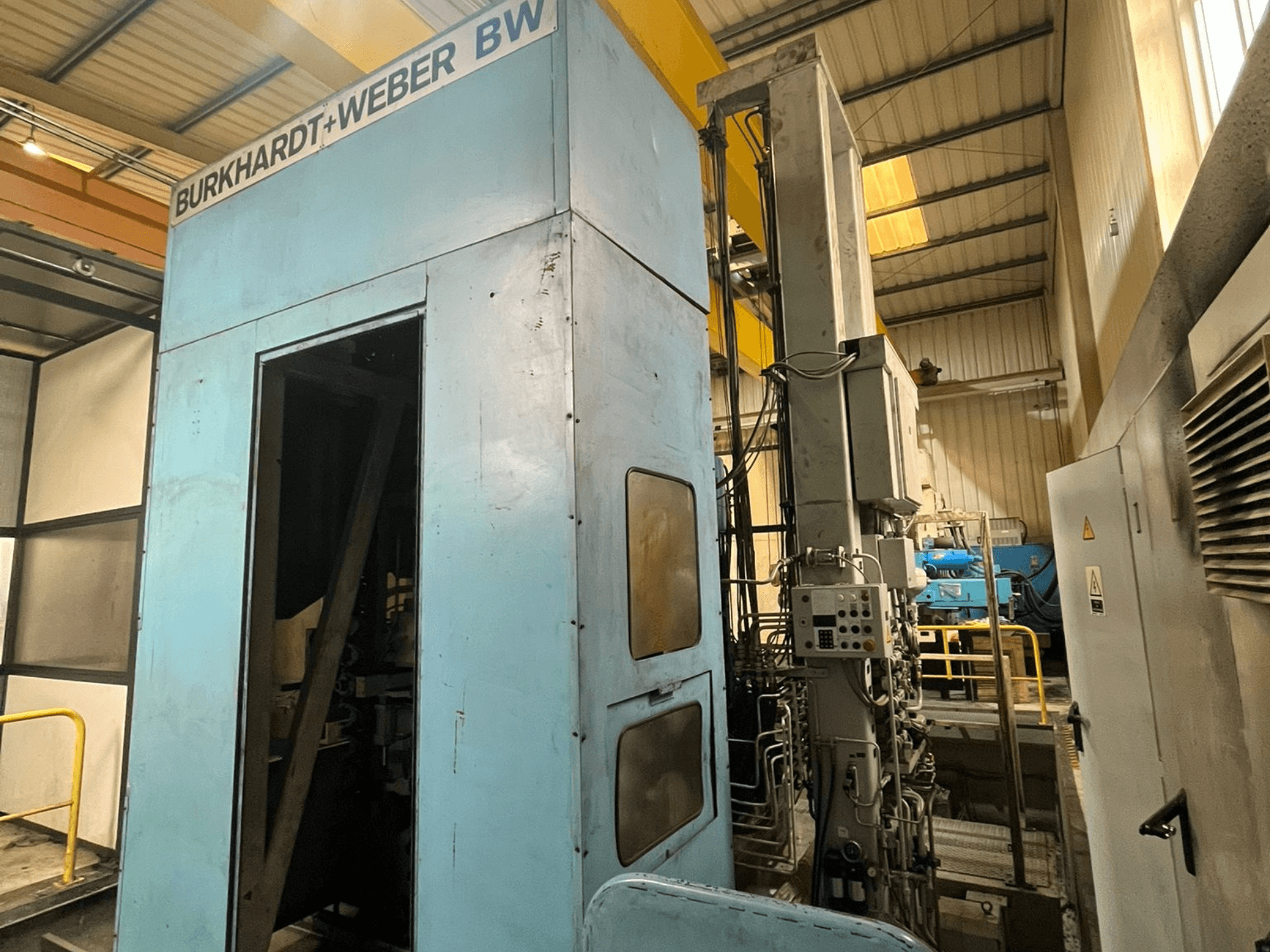

This 4-axis Burkhardt-Weber MC100 was manufactured in 1998. It features a working range with an X-axis travel of 3,000 mm, Y-axis travel of 2,500 mm, and Z-axis travel of 1,500 mm. The machine has a maximum table load capacity of 20,000 kg and a spindle speed of 3,500 RPM. If you are looking to get high-quality milling capabilities, consider the Burkhardt-Weber MC100 horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: Burkhardt-Weber
- year: 1998
- MODEL: MC100
- application type: Milling
- Location: Portugal
- machine type: Horizontal Machining Centre
Technical Information - Burkhardt-Weber MC100
Dimensions
- Table Load: 20000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 2500 mm
- Z-axis Travel: 1500 mm
Technical Specification
- Spindle Speed: 3500 RPM
- Taper Size: BT 50
Additional Information
B-axis (NC rotary table): 360° continuous
Tooling standard: High-torque configuration for large-scale milling
Additional notes:
Retrofitted in 2008
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
