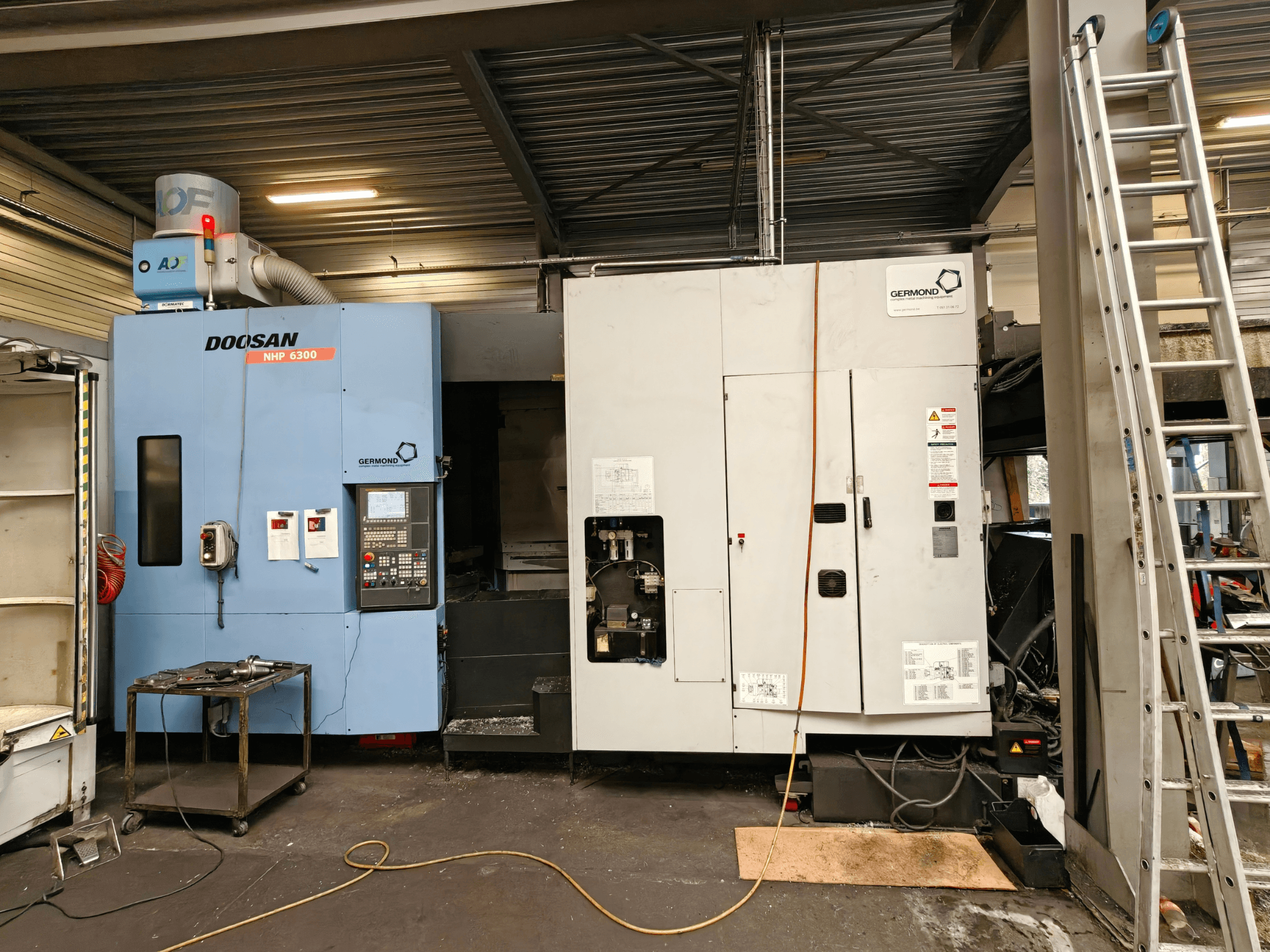

DOOSAN - NHP6300BE-MIL-DOO-2014-00001

• Distance from top of pallet to spindle center: 100–1,100 mm

• Distance from pallet center to spindle nose: 75–975 mm

• Pallet

  • Type: Indexing (rotary)

  • Indexing angle: 1°

  • Size: 630 × 630 mm

  • Maximum load: 1,500 kg

  • Mounting pattern: 24 × M16 × P2.0 {5–18H8}

  • Maximum workpiece size (Ø × H): Ø1,050 × 1,350 mm

• Spindle

  • Speed: 10,000 rpm (options: 6,000 / 15,000 rpm)

  • Taper: ISO 50 (7/24 taper)

  • Maximum torque: 489 Nm (options: 599.8 / 350 Nm)

• Feed rates

  • Rapid traverse (X/Y/Z): 60 / 60 / 60 m/min

  • Maximum cutting feed: 30,000 mm/min

• Automatic Pallet Changer (APC)

  • Number of pallets: 2

  • Type: Rotary shuttle

  • Change time: 12 s

  • Drive: Servo motor

• Automatic Tool Changer (ATC)

  • Tool interface: BT / CT / DIN (HSK optional)

  • Magazine type: Chain

  • Standard capacity: 40 tools (options: 60 / 90 / 120 / 150)

  • Matrix magazine capacity: 196 / 256 / 316 / 376 tools

  • Maximum tool diameter: Ø130 mm (Ø125 mm per note)

  • Maximum tool diameter with adjacent pockets empty: Ø320 mm

  • Maximum tool length: 630 mm (HSK: 700 mm)

  • Tool-to-tool change time: 2.0 / 3.5 s

  • Chip-to-chip change time: 5.0 / 6.5 s

• Motor power and utilities

  • Spindle motor: 25 / 30 kW (options: 22 / 30, 50 / 55 kW)

  • Compressed air supply: 0.54 MPa

• Tank capacities

  • Coolant: 925 l

  • Lubrication: 7.2 l

Additional equipment

• Fastems automation system
