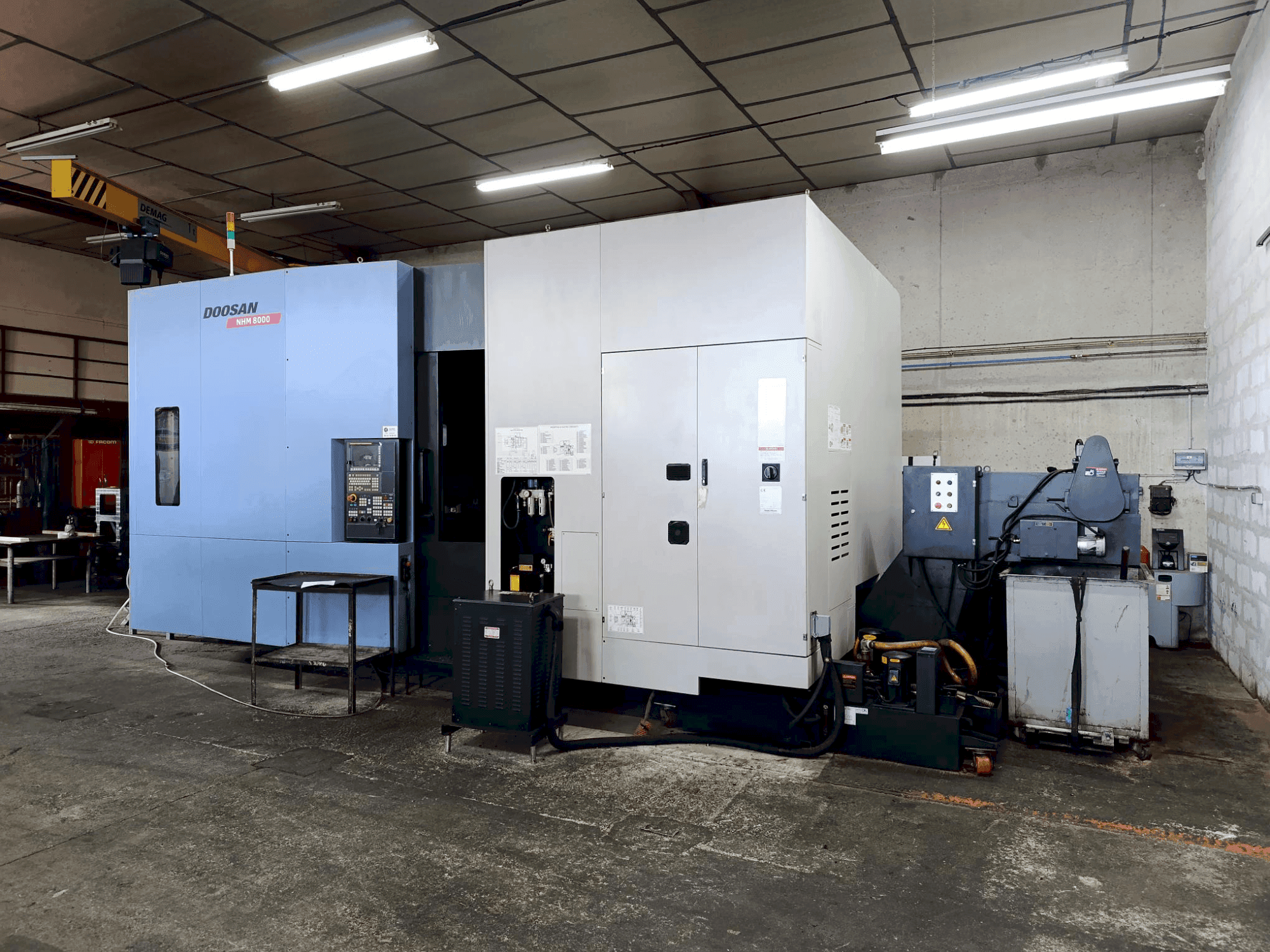

This 4-axis DOOSAN HM 8000 horizontal machining center was manufactured in 2014. Equipped with Fanuc 31i CNC control, it features a maximum workpiece diameter of 1450 mm and weight capacity of 2000 Kg. It includes a high-pressure through-spindle coolant system, chip conveyor, and both workpiece and tool probes. If you are looking to get high-quality milling capabilities consider the DOOSAN HM 8000 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: DOOSAN
- year: 2014
- MODEL: NHM 8000
- application type: Milling
- Location: France
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN NHM 8000
Control Unit
- Control Brand: FANUC
- Control Model: 31i CNC
Dimensions
- Machine Depth: 8150 mm
- Machine Height: 3760 mm
- Machine Length: 8150 mm
- Machine Weight: 26000 kg
- Machine Width: 4325 mm
Movement
- Number of Axes: 4
- X-axis Travel: 1400 mm
- Y-axis Travel: 1050 mm
- Z-axis Travel: 1200 mm
Technical Specification
- Max. Tool Weight: 30 kg
- Tool Stations: 60
- Spindle Power: 35 kW
- Spindle Speed: 6000 RPM
- Taper Size: BT 50
Additional Information
Max. workpiece diameter: 1450 mm
Max. workpiece weight: 2000 kg
Travel (X/Y/Z): 1400 x 1050 x 1200 mm
Pallet size: 800 x 800 mm
Spindle motor power: 22/35 kW
Max. torque: 1732 N·m
B-axis: indexable by degree
Max. tool diameter: 130/320 mm
Max. tool length: 630 mm
Additional equipment
Belt-type oil skimmer
Triple light tower
Pallet centering device
Shower coolant
Through-spindle coolant 70 bar, 7.5 kW, with cyclone filtration
Automatic shutdown
Tool load monitoring
Chip conveyor
Workpiece probe OMP60
Tool probe TS27R
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
