DOOSAN NHP 6300

Photo Gallery

DOOSAN - NHP 6300KR-MIL-DOO-2018-00005

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

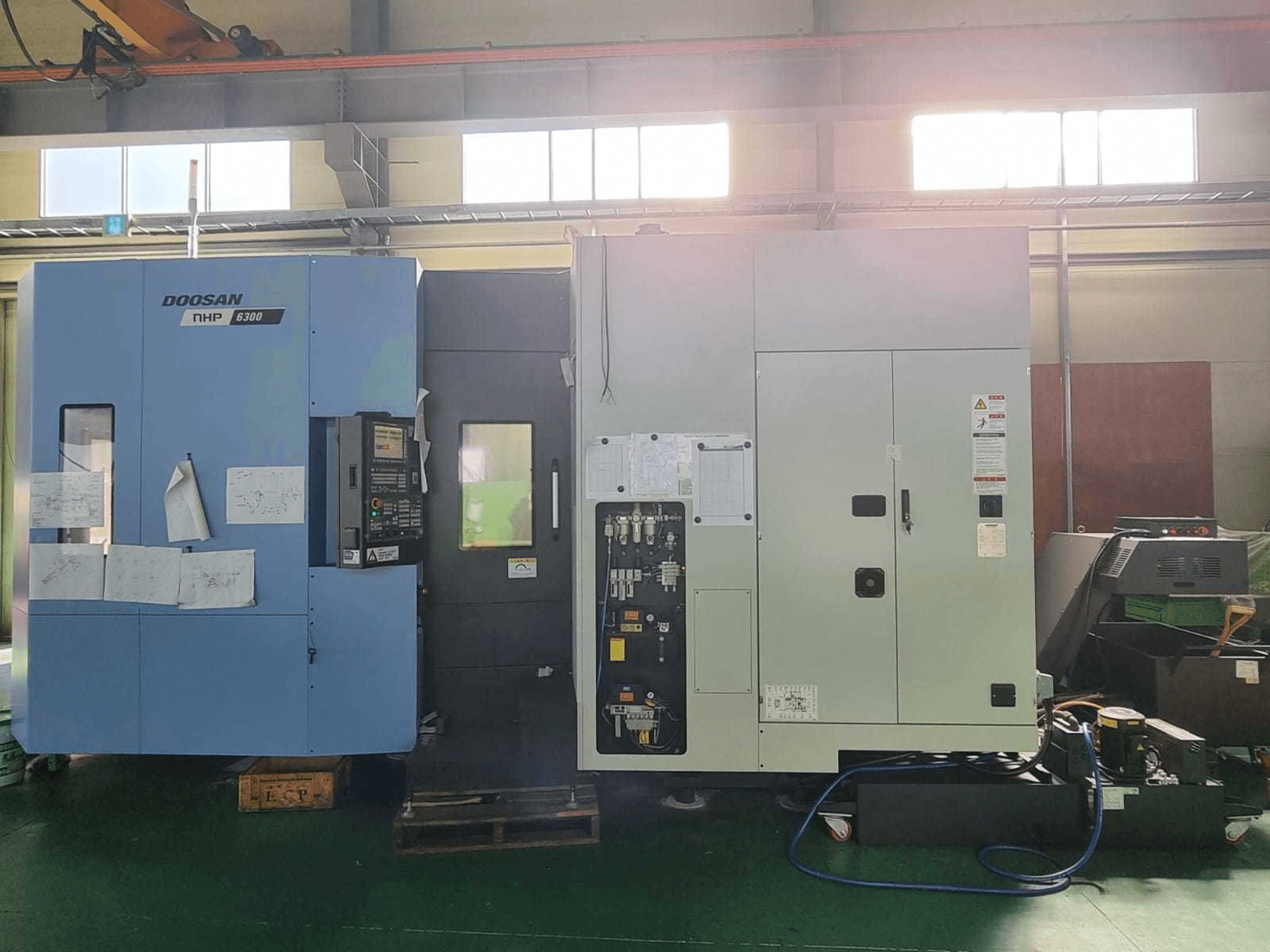

Doosan NHP 6300 horizontal machining center

Show in original language

This Doosan NHP 6300 horizontal machining center was manufactured in 2018 in South Korea. It has 590 power on hours, of which 205 are running hours and 169 are cutting hours. This 5 axis machine is operated through a FANUC-31iB5 control unit. It has a spindle speed up to 15000 rpm.

Overview

brand: DOOSAN
year: 2018
MODEL: NHP 6300
production hours: 590
application type: Milling
Location: South Korea
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN NHP 6300

Control Unit

Control Brand: FANUC
Control Model: 31iB5

Dimensions

Table Length: 630 mm
Table Width: 630 mm

Movement

Number of Axes: 5
X-axis Travel: 1050 mm
Y-axis Travel: 900 mm
Z-axis Travel: 1000 mm

Technical Specification

Spindle Speed: 15000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Linear scale x,y,z axis
Oil skimmer
Oil cooler
Tool taper: bt50
Call right (led 3 step)
Mpg handle
Manual books

Technical Machine Benefits

Tool storage capacity: 60 ea
Number of pallets: 2 ea
Spindle coolant: 1. 5 kw
Number of tool offsets: 200 pairs
Coolant pump: 1. 8 kw
Full +b axis 0. 001 degree
Tsc 20 bar
Aicc_200block
Tool magazine: 60ea
Index degree for pallet:. 0001 degree (very special)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
