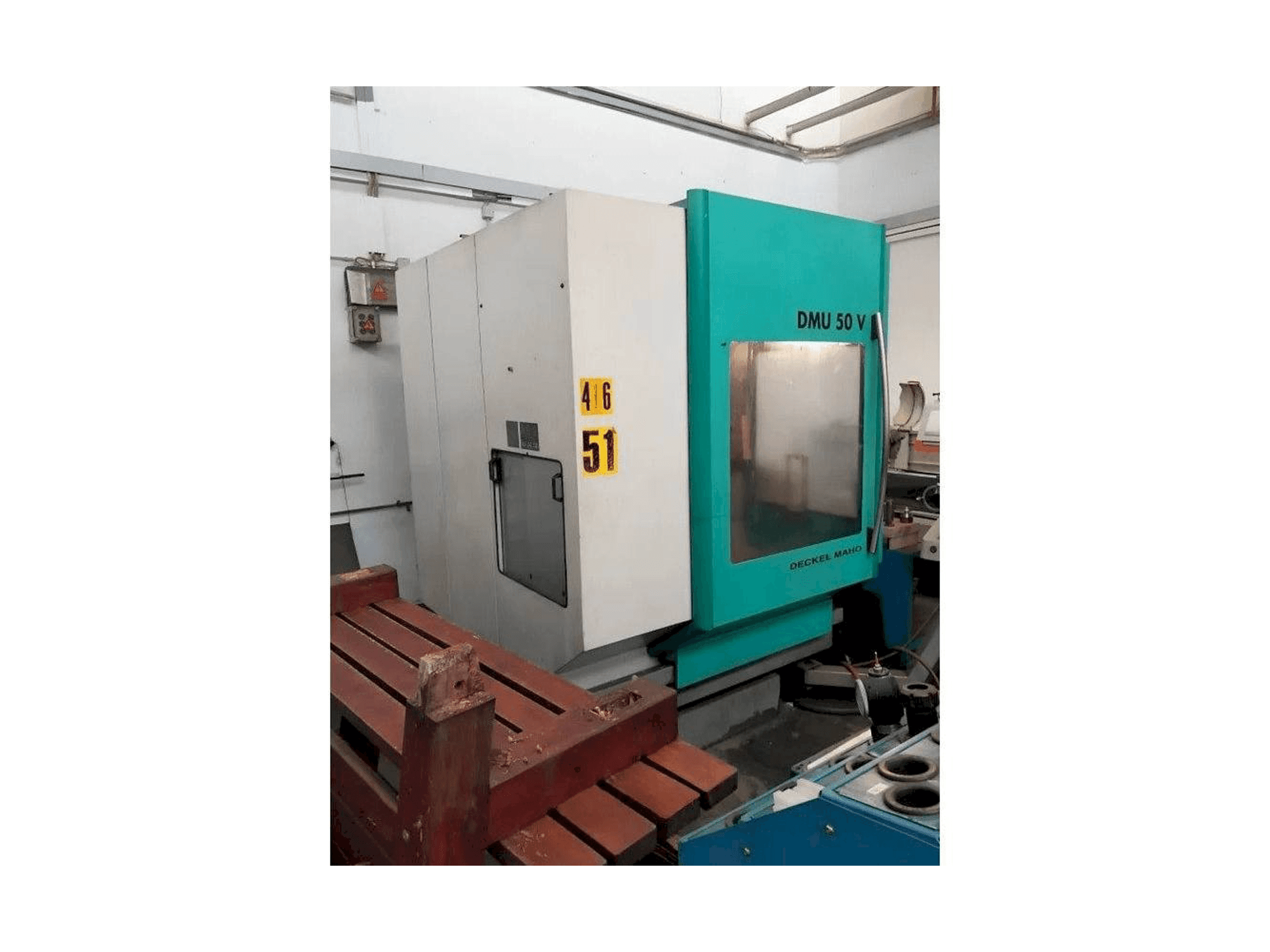

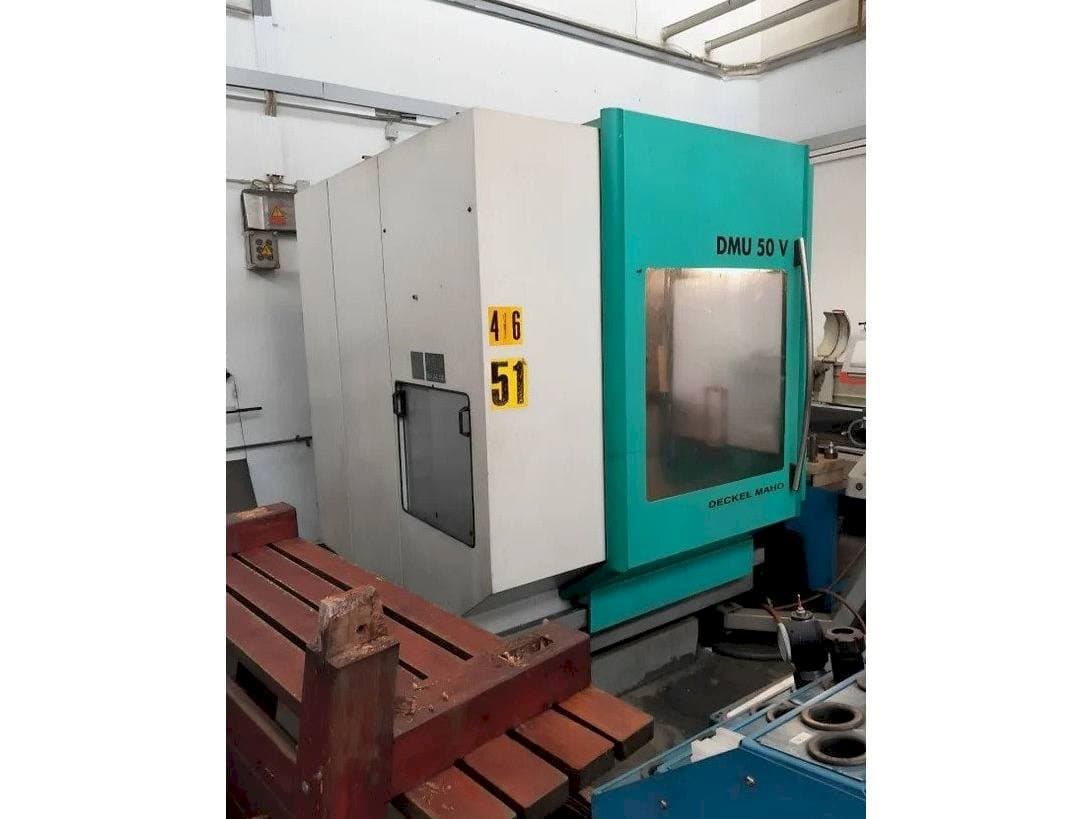

Left side view of DECKEL MAHO DMU 50 V machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMU 50 V

DECKEL MAHO - DMU 50 VDE-MIL-DEC-1996-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DECKEL MAHO DMU 50 V Vertical Machining Center

Show in original language

This DECKEL MAHO DMU 50 V Vertical Machining Center was made in the year 1996 and has 28480 hours, of which 6848 are spindle hours. It is equipped with a GRUNDIG MillPlus control unit and has 3 axis. The machine has a spindle speed of 20 - 8000 rpm.

Overview

brand: DECKEL MAHO
year: 1996
MODEL: DMU 50 V
production hours: 28480
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - DECKEL MAHO DMU 50 V

General Data

Measurements width: 2450 mm
Measurements depth: 1760 mm
Measurements height: 2380 mm
Machine weight: 3500 kg

Control Unit

Model: MillPlus

Main drive

Spindle speed range: 20 - 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 380 mm
Z-AXIS Movement: 380 mm

Table

Outer length: 800 mm
Outer width: 480 mm

Tools

Max tool diameter: SK 40 DIN 2079 MM

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
